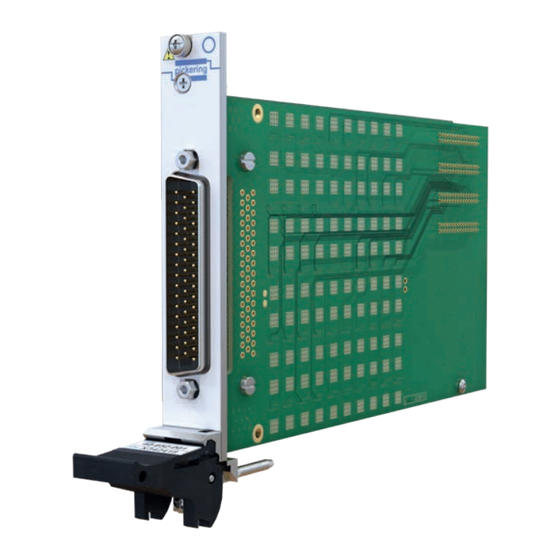

Pickering 40-652A User Manual

Pxi 5 a solid state multiplexer module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
40-652A User Manual
PXI 5 A Solid State Multiplexer Module
pickeringtest.com
Issue 1.2 November 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-652A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pickering 40-652A

Summary of Contents for Pickering 40-652A

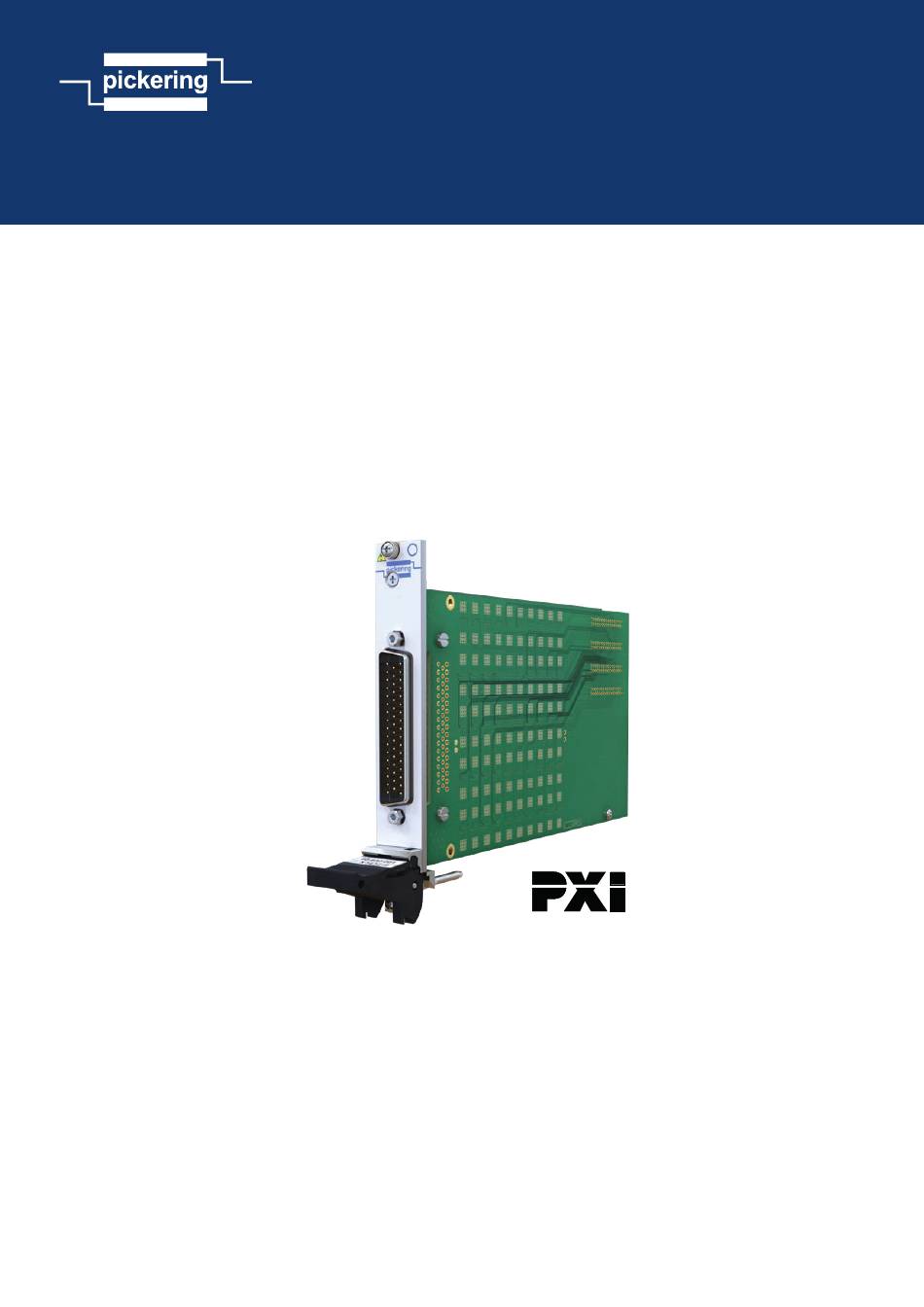

  • Page 1 40-652A User Manual PXI 5 A Solid State Multiplexer Module pickeringtest.com Issue 1.2 November 2021...
  • Page 2 © COPYRIGHT (2021) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Programming The Module ............4.6 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1 Section 7 Maintenance Information ............7.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page (VI)

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...

  • Page 9: Technical Specification

    The 40-652A can sustain 30 A for 300 µs on hot or cold switching. The multiplexer is available in single pole 48:1, two pole 24:1, single pole dual 24:1 or single pole 24:1 configurations.
  • Page 10 5 A Solid State MUX, 40-652A Relay Type Mechanical Characteristics The 40-652A is fitted with MOSFET Solid State Relays. Single slot 3 U PXI (CompactPCI card). Module weight: 250 g. Switching Specification 3D models for all versions in a variety of popular file...
  • Page 11 None channel selection mode by adding the “-M” suffix to the Mating Connectors & Cabling part number. For connection accessories for the 40-652A module please For example, the 1-bank, 48-channel 1-pole MUX with refer to the 90-005D 50-pin D-type Connector Accessories...
  • Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 13 5 A Solid State MUX, 40-652A Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
  • Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 1.6...

  • Page 15: Technical Description

    FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The Multiplexer Module 40-652A is powered by +3.3V and +5V inputs via Compact PCI connector J1. The interface to the user test equipment is via a front panel mounted 50-pin D-type connector.
  • Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 2.2...

  • Page 17: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 18: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 19: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 3.4...

  • Page 21: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. TThis is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 22: Module Architecture

    MODULE ARCHITECTURE The 40-652A module is an array of up to 50 solid state switches factory configured into one of four different multiplexer configurations. In the default state, all multiplexer channels are open circuit. Energising a particular channel creates a signal path between the common terminal and the corresponding channel terminal. The module’s switching architectures are shown in their default state in the diagrams on the following pages.
  • Page 23 40-652A-002: CH1.24 2-Bank, 24-Channel 1-Pole Multiplexer CH2.1 CH2.2 Isolation Switch CH2.3 COM2 CH2.24 Programming Bit / Signal Path Table For 2-Bank, 24-Channel 1-Pole Multiplexer (40-652A-002) Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names COM1 to CH1.1...
  • Page 24 COM1.1 to CH21.1 & COM1.2 to CH21.2 ch21 COM1.1 to CH22.1 & COM1.2 to CH22.2 ch22 COM1.1 to CH23.1 & COM1.2 to CH23.2 ch23 COM1.1 to CH24.1 & COM1.2 to CH24.2 ch24 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 4.4...
  • Page 25 COM to CH17 ch17 COM to CH18 ch18 COM to CH19 ch19 COM to CH20 ch20 COM to CH21 ch21 COM to CH22 ch22 COM to CH23 ch23 COM to CH24 ch24 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 4.5...

  • Page 26: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-652A-001 (1-Bank, 48-Channel) Multiplexer module. Other modules in the range operate in a similar way but the sub-units / bits may vary. Using PILPXI...

  • Page 27: Connector Information

    CH35 CH37 CH39 CH38 CH40 CH42 CH41 CH47 CH43 CH45 CH44 CH46 CH48 CH47 CH48 1-Bank 48-Channel 1-Pole Multiplexer Figure 5.1 - 40-652A-001 Pinout (50-pin male D-type viewed from front of module) 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 5.1...
  • Page 28 CH2.14 CH2.3 CH2.16 CH2.18 COM2 CH2.17 CH2.19 CH2.21 CH2.20 CH2.22 CH2.24 CH2.23 COM1 COM2 CH2.24 2-Bank 24-Channel 1-Pole Multiplexer Figure 5.2 - 40-652A-002 Pinout (50-pin male D-type viewed from front of module) 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 5.2...
  • Page 29 CH15.2 CH14.2 CH24.1 CH16.2 CH18.2 CH17.2 CH19.2 CH21.2 CH24.2 CH20.2 CH22.2 CH24.2 CH23.2 COM1.1 COM1.2 1-Bank 24-Channel 2-Pole Multiplexer Figure 5.3 - 40-652A-003 Pinout (50-pin male D-type viewed from front of module) 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 5.3...
  • Page 30 CH13 CH15 CH14 CH16 CH18 CH17 CH19 CH21 CH20 Isolation CH22 CH24 Switch CH23 CH24 1-Bank 24-Channel 1-Pole Multiplexer Figure 5.4 - 40-652A-101 Pinout (50-pin male D-type viewed from front of module) 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 5.4...

  • Page 31: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 32 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 6.2...

  • Page 33: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 34 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - 40-652A-001: Relay Numbering Relay Table For 1-Bank, 48-Channel 1-Pole Multiplexer (40-652A-001) Isolator No. Switch No. Isolator No. Switch No. Switch Switch (mother (daughter (mother (daughter Function Function board) board) board) board) U101 U1 &...
  • Page 35 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.2 - 40-652A-002: Relay Numbering Relay Table For 2-Bank, 24-Channel 1-Pole Multiplexer (40-652A-002) Isolator No. Switch No. Isolator No. Switch No. Switch Switch (mother (daughter (mother (daughter Function Function board) board) board) board) CH1.1...
  • Page 36 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.3 - 40-652A-003: Relay Numbering Relay Table For 1-Bank, 24-Channel 2-Pole Multiplexer (40-652A-003) Isolator No. Switch No. Isolator No. Switch No. Switch Switch (mother (daughter (mother (daughter Function Function board) board) board) board) CH1.1...
  • Page 37 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.4 - 40-652A-101: Relay Numbering Relay Table For 1-Bank, 24-Channel 1-Pole Multiplexer (40-652A-101) Isolator No. Switch No. Switch (mother (daughter Function board) board) U101 U1 & U2 U102 U3 & U4 U103 U5 & U6 U104 U7 &...
  • Page 38 U138 U139 U134 U135 U136 U131 U132 U133 U128 U129 U146 U147 U148 U143 U144 U145 U140 U141 U142 U137 Figure 7.1 - 40-652A Multiplexer Module Motherboard: Isolator Positions U100 Figure 7.2 - 40-652A Multiplexer Module Daughterboard: Solid State Switch Positions 5A SOLID STATE MULTIPLEXER MODULE 40-652A Page 7.6...
