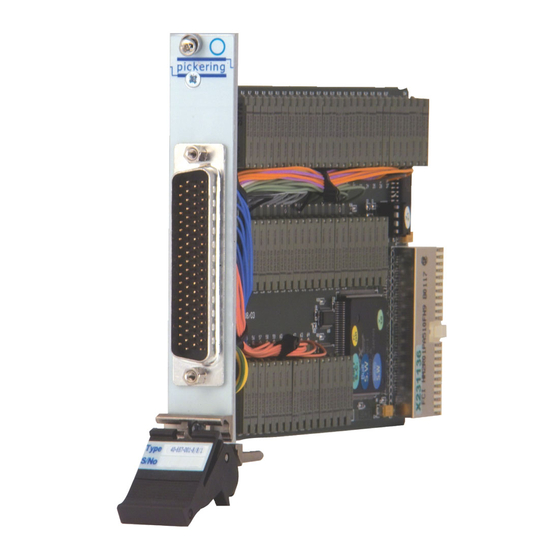

Pickering 40-657A Quick Start Manual

PXI Multi-Banked Multiplexer
• High Density 2 Amp Multiplexer
• 8-Banks of 8-Chan, 4-Banks of 16, 2-Banks of 32 &
Single 64-Chan Multiplexer
• 1-Pole Switching
• 2A Current Rating With 90W/500VA Max Power
• Hot Switch to 110VDC/250VAC
• Cold Switch to 400VDC/250VAC
• VISA, IVI & Kernel Drivers Supplied for Windows
• Supported by PXI or LXI Chassis
• 3 Year Warranty
The 40-657A is a high density power multiplexer modules available
in a choice of configurations with up to 8 separate multiplexers
with 1-pole switching. They are suitable for switching signals to
110VDC/250VAC at 2 Amps, 90W.
40-657A Multi-Banked Multiplexer Range:
8-Bank, 8-Channel, 1-pole
4-Bank, 16-Channel, 1-pole
2-Bank, 32-Channel, 1-pole
1-Bank, 64-Channel, 1-pole
Larger multiplexers may be constructed by daisy chaining the
common signals from multiple modules. For example 7 modules
with 64-channels will form a 448-channel multiplexer.
Com
BANK 1
Com
BANK 5
1 1
2 2
3 3
4 4
Com
5 5
6 6
7 7
8 8
BANK 2
1 1
2 2
3 3
4 4
Com
5 5
6 6
7 7
8 8
BANK 6
8-Bank, 8-Channel Multiplexer (40-657A-001-8/8/1)
The 40-657A can be operated as a conventional multiplexer
with break-before-make action when a new channel is selected.
Alternatively, product variants can be supplied that allow multiple
channels to be simultaneously selected.
The 40-657A channel selection configurations have been revised
from the 40-657. The 40-657A modules default to single channel
selection with multiple channel selection variants defined by use of
a suffix.
We can construct custom cable assemblies for all of our PXI
modules, please contact sales office for further assistance.
1
2
3
4
Com Com
5
6
7
8
BANK 3
1
2
3
4
Com Com
5
6
7
8
BANK 7
40-657A
1
2
3
4
5
6
7
8
BANK 4
1
2
3
4
5
6
7
8
BANK 8
