40-614 User Manual
PXI High Density 2 Amp Multiplexer Module
pickeringtest.com
Issue 2.1 March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-614 and is the answer not in the manual?

Questions and answers

Related Manuals for Pickering 40-614

Summary of Contents for Pickering 40-614

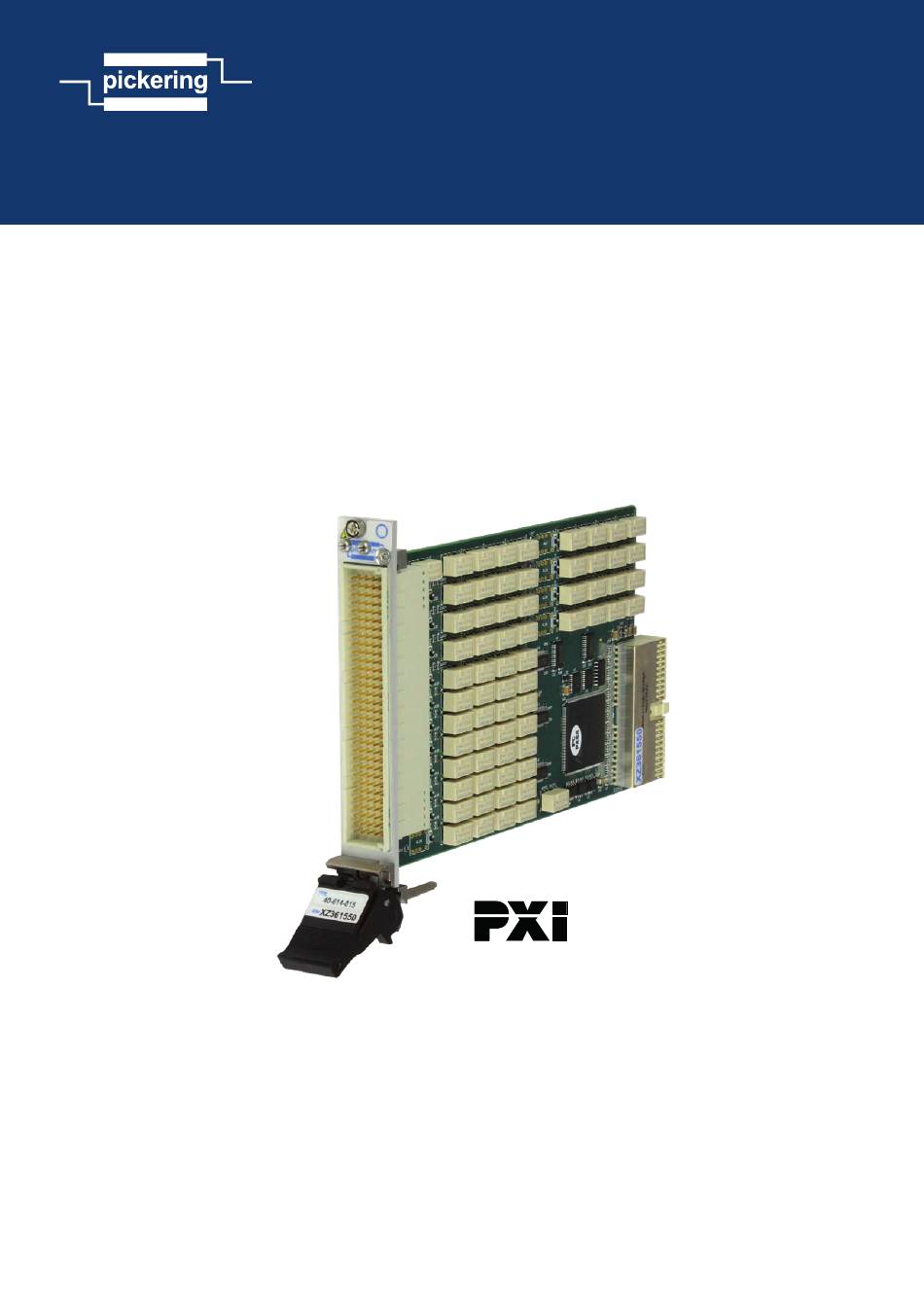

  • Page 1 40-614 User Manual PXI High Density 2 Amp Multiplexer Module pickeringtest.com Issue 2.1 March 2020...
  • Page 2 © COPYRIGHT (2020) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 HIGH DENSITY 2A MUX MODULE 40-614 Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Programming The Module ............4.42 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1 Section 7 Maintenance Information ............7.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 2A MUX MODULE 40-614 Page (VI)

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. HIGH DENSITY 2A MUX MODULE 40-614 Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...

  • Page 9: Technical Specification

    • 3 Year Warranty 40-614 2 Amp Multiplexer Range: 16 Banks, 8 Channels, 1-Pole. The 40-614 High Density 2 Amp Multiplexer module is available in 16 Banks, 4 Channels, 2-Pole. 20 configurations as outlined in the table. They all use high quality 8 Banks, 16 Channels, 1-Pole.
  • Page 10 SECTION 1 - TECHNICAL SPECIFICATION pickering Overview High Density 2 Amp MUX – 40-614 C1.1 C2.1 C3.1 C15.1 C16.1 C1.2 C2.2 C3.2 C15.2 C16.2 BANK 1 BANK 2 BANK 3 BANK 15 BANK 16 40-614-002 16-Bank, 4-Channel, 2-Pole Multiplexer BANK 1...
  • Page 11 SECTION 1 - TECHNICAL SPECIFICATION pickering Overview High Density 2 Amp MUX – 40-614 C1.1 C4.1 C1.1 C4.1 C1.2 C4.2 C1.8 C4.8 C1.3 C4.3 C1.4 C4.4 BANK 1 BANK 4 BANK 1 BANK 4 40-614-008 4-Bank, 8-Channel, 4-Pole Multiplexer 40-614-009 4-Bank, 4-Channel, 8-Pole Multiplexer C1.1...
  • Page 12 SECTION 1 - TECHNICAL SPECIFICATION pickering Overview High Density 2 Amp MUX – 40-614 C1.1 C2.1 C1.2 C2.2 C1.16 1.16 C2.16 1.16 2.16 2.16 3.16 3.16 BANK 1 BANK 2 31.1 4.16 4.16 31.2 31.3 40-614-014 2-Bank, 4-Channel, 16-Pole Multiplexer 31.4...
  • Page 13 Specifications High Density 2 Amp MUX – 40-614 Relay Type RF Specification - In a 50Ω System The 40-614 is fitted with electro-mechanical relays with Palladium- Bandwidth (-3dB): 40MHz (40-614-001) Ruthenium Gold covered contacts. A spare relay is built onto the...
  • Page 14 4 Bank, 8 Channel, 4-Pole 40-614-008 Mating Connectors & Cabling Multiple 4 Bank, 4 Channel, 8-Pole 40-614-009 For connection accessories for the 40-614 module please refer Multiple 2 Bank, 32 Channel, 2-Pole 40-614-011 to the 90-001D 160-pin DIN 41612 Connector Accessories data...
  • Page 15 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 16 High Density 2 Amp MUX – 40-614 Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...

  • Page 17: Technical Description

    FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The Multiplexer Module 40-614 is powered by +5V and +3.3V supplies via Compact PCI connector J1. The interface to the user test equipment is via a front panel mounted 160- pin male DIN 41612 connector, J2.
  • Page 18 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 2A MUX MODULE 40-614 Page 2.2...

  • Page 19: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 20: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 21: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 22 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 2A MUX MODULE 40-614 Page 3.4...

  • Page 23: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 24: Module Architecture

    MODULE ARCHITECTURE The 40-614 module is an array of up to 80 DPDT relays factory wired to be one of 20 different multiplexer configurations. In the default state, all multiplexer channels are open circuit. Energising a particular channel creates a signal path between the common terminal and the corresponding channel terminal.
  • Page 25 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.1 - Programming Bit / Signal Path Details: 40-614-001 (Continued) 16-Bank, 8-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C7 to 7.1 comG chG1 C12 to 12.1...
  • Page 26 BANK 2 BANK 3 BANK 16 1.4.2 2.4.2 3.4.2 16.4.2 Figure 4.2 - 16-Bank, 4-Channel 2-Pole Multiplexer Table 4.2 - Programming Bit / Signal Path Details: 40-614-002 16-Bank, 4-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path...
  • Page 27 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.2 - Programming Bit / Signal Path Details: 40-614-002 (Continued) 16-Bank, 4-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C7.1 to 7.1.1 C12.1 to 12.1.1...
  • Page 28 BANK 1 BANK 2 BANK 8 1.16 2.16 8.16 Figure 4.3 - 8-Bank, 16-Channel 1-Pole Multiplexer Table 4.3 - Programming Bit / Signal Path Details: 40-614-003 8-Bank, 16-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path...
  • Page 29 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.3 - Programming Bit / Signal Path Details: 40-614-003 (Continued) 8-Bank, 16-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C5 to 5.1 comE chE1 C7 to 7.1...
  • Page 30 BANK 1 BANK 2 BANK 8 1.8.2 2.8.2 8.8.2 Figure 4.4 - 8-Bank, 8-Channel 2-Pole Multiplexer Table 4.4 - Programming Bit / Signal Path Details: 40-614-004 8-Bank, 8-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path...
  • Page 31 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.4 - Programming Bit / Signal Path Details: 40-614-004 (Continued) 8-Bank, 8-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C5.1 to 5.1.1 C7.1 to 7.1.1...
  • Page 32 BANK 1 BANK 2 BANK 8 1.4.4 2.4.4 8.4.4 Figure 4.5 - 8-Bank, 4-Channel 4-Pole Multiplexer Table 4.5 - Programming Bit / Signal Path Details: 40-614-005 8-Bank, 4-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path...
  • Page 33 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.5 - Programming Bit / Signal Path Details: 40-614-005 (Continued) 8-Bank, 4-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C5.1 to 5.1.1, C7.1 to 7.1.1, C5.2 to 5.1.2,...
  • Page 34 4-Bank, 32-Channel 1-Pole Multiplexer 1.30 4.30 1.31 4.31 1.32 4.32 BANK 1 BANK 4 Table 4.6 - Programming Bit / Signal Path Details: 40-614-006 4-Bank, 32-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names...
  • Page 35 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.6 - Programming Bit / Signal Path Details: 40-614-006 (Continued) 4-Bank, 32-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C3 to 3.1 comC chC1 C4 to 4.1...
  • Page 36 4.3.2 2-Pole Multiplexer C1.2 C4.2 1.16.1 4.16.1 1.16.2 4.16.2 BANK 1 BANK 4 Table 4.7 - Programming Bit / Signal Path Details: 40-614-007 4-Bank, 16-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C1.1 to 1.1.1...
  • Page 37 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.7 - Programming Bit / Signal Path Details: 40-614-007 (Continued) 4-Bank, 16-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C3.1 to 3.1.1 C4.1 to 4.1.1...
  • Page 38 4.2.4 1.8.1 4.8.1 1.8.2 4.8.2 1.8.3 4.8.3 BANK 1 BANK 4 1.8.4 4.8.4 Table 4.8 - Programming Bit / Signal Path Details: 40-614-008 4-Bank, 8-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C1.1 to 1.1.1,...
  • Page 39 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.8 - Programming Bit / Signal Path Details: 40-614-008 (Continued) 4-Bank, 8-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C3.1 to 3.1.1, C4.1 to 4.1.1, C3.2 to 3.1.2,...
  • Page 40 4.3.1 8-Pole Multiplexer 1.3.8 4.3.8 1.4.1 4.4.1 BANK 1 BANK 4 1.4.8 4.4.8 Table 4.9 - Programming Bit / Signal Path Details: 40-614-009 4-Bank, 4-Channel 8-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C1.1 to 1.1.1,...
  • Page 41 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.9 - Programming Bit / Signal Path Details: 40-614-009 (Continued) 4-Bank, 4-Channel 8-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C3.1 to 3.1.1, C4.1 to 4.1.1, C3.2 to 3.1.2,...
  • Page 42 1-Pole Multiplexer 1.61 2.61 1.62 2.62 1.63 2.63 1.64 2.64 BANK 1 BANK 2 Table 4.10 - Programming Bit / Signal Path Details: 40-614-010 2-Bank, 64-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C1 to 1.1...
  • Page 43 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.10 - Programming Bit / Signal Path Details: 40-614-010 (Continued) 2-Bank, 64-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C2 to 2.1 comB chB1 C2 to 2.33...
  • Page 44 2-Pole Multiplexer 1.31.1 2.31.1 1.31.2 2.31.2 1.32.1 2.32.1 1.32.2 2.32.2 BANK 1 BANK 2 Table 4.11 - Programming Bit / Signal Path Details: 40-614-011 2-Bank, 32-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C1.1 to 1.1.1...
  • Page 45 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.11 - Programming Bit / Signal Path Details: 40-614-011 (Continued) 2-Bank, 32-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C2.1 to 2.1.1 C2.1 to 2.17.1...
  • Page 46 2.2.4 1.16.1 2.16.1 1.16.2 2.16.2 1.16.3 2.16.3 BANK 1 BANK 2 1.16.4 2.16.4 Table 4.12 - Programming Bit / Signal Path Details: 40-614-012 2-Bank, 16-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C1.1 to 1.1.1,...
  • Page 47 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.12 - Programming Bit / Signal Path Details: 40-614-012 (Continued) 2-Bank, 16-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C2.1 to 2.1.1, C2.1 to 2.9.1, C2.2 to 2.1.2,...
  • Page 48 2-Bank, 8-Channel 1.2.8 2.2.8 8-Pole Multiplexer 1.8.1 2.8.1 BANK 1 BANK 2 1.8.8 2.8.8 Table 4.13 - Programming Bit / Signal Path Details: 40-614-013 2-Bank, 8-Channel 8-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names...
  • Page 49 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.13 - Programming Bit / Signal Path Details: 40-614-013 (Continued) 2-Bank, 8-Channel 8-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C2.1 to 2.1.1, C2.1 to 2.5.1, C2.2 to 2.1.2,...
  • Page 50 16-Pole Multiplexer 1.2.16 2.2.16 1.4.1 2.4.1 1.4.2 2.4.2 BANK 1 BANK 2 1.4.16 2.4.16 Table 4.14 - Programming Bit / Signal Path Details: 40-614-014 2-Bank, 4-Channel 16-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C1.1 to 1.1.1,...
  • Page 51 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.14 - Programming Bit / Signal Path Details: 40-614-014 (Continued) 2-Bank, 4-Channel 16-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C2.1 to 2.1.1, C2.1 to 2.3.1, C2.2 to 2.1.2,...
  • Page 52 SECTION 4 - PROGRAMMING GUIDE pickering Figure 4.15 - 1-Bank, 128-Channel 1-Pole Multiplexer Table 4.15 - Programming Bit / Signal Path Details: 40-614-015 1-Bank, 128-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit...
  • Page 53 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.15 - Programming Bit / Signal Path Details: 40-614-015 (Continued) 1-Bank, 128-Channel 1-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C to 65 ch65 C to 97...
  • Page 54 SECTION 4 - PROGRAMMING GUIDE pickering Figure 4.16 - 1-Bank, 64-Channel 2-Pole Multiplexer 63.1 63.2 64.1 64.2 Table 4.16 - Programming Bit / Signal Path Details: 40-614-016 1-Bank, 64-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit...
  • Page 55 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.16 - Programming Bit / Signal Path Details: 40-614-016 (Continued) 1-Bank, 64-Channel 2-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C.1 to 33.1 C.1 to 49.1...
  • Page 56 SECTION 4 - PROGRAMMING GUIDE pickering Figure 4.17 - 1-Bank, 32-Channel 4-Pole Multiplexer 32.1 32.2 32.3 32.4 Table 4.17 - Programming Bit / Signal Path Details: 40-614-017 1-Bank, 32-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit...
  • Page 57 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.17 - Programming Bit / Signal Path Details: 40-614-017 (Continued) 1-Bank, 32-Channel 4-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C.1 to 17.1, C.1 to 25.1, C.2 to 17.2,...
  • Page 58 SECTION 4 - PROGRAMMING GUIDE pickering Figure 4.18 - 1-Bank, 16-Channel 8-Pole Multiplexer 16.1 16.8 Table 4.18 - Programming Bit / Signal Path Details: 40-614-018 1-Bank, 16-Channel 8-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit...
  • Page 59 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.18 - Programming Bit / Signal Path Details: 40-614-018 (Continued) 1-Bank, 16-Channel 8-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C.1 to 9.1, C.1 to 13.1, C.2 to 9.2,...
  • Page 60 SECTION 4 - PROGRAMMING GUIDE pickering C.16 1.16 Figure 4.19 - 1-Bank, 8-Channel 16-Pole Multiplexer 2.16 8.16 Table 4.19 - Programming Bit / Signal Path Details: 40-614-019 1-Bank, 8-Channel 16-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit...
  • Page 61 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.19 - Programming Bit / Signal Path Details: 40-614-019 (Continued) 1-Bank, 8-Channel 16-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C.1 to 5.1, C.1 to 7.1, C.2 to 5.2,...
  • Page 62 SECTION 4 - PROGRAMMING GUIDE pickering C.32 1.32 Figure 4.20 - 1-Bank, 4-Channel 32-Pole Multiplexer 4.32 Table 4.20 - Programming Bit / Signal Path Details: 40-614-020 1-Bank, 4-Channel 32-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path...
  • Page 63 SECTION 4 - PROGRAMMING GUIDE pickering Table 4.20 - Programming Bit / Signal Path Details: 40-614-020 (Continued) 1-Bank, 4-Channel 32-Pole Multiplexer Sub- IVI Channel Sub- IVI Channel Signal Path Signal Path Unit Names Unit Names C.1 to 3.1, C.1 to 4.1, C.2 to 3.2,...

  • Page 64: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-614-001 (16-Bank, 8-Channel, 1-Pole) multiplexer module. Other modules in the range operate in a similar way but the sub-units / bits may vary. Using PILPXI...

  • Page 65: Connector Information

    15.6 15.7 15.8 16.1 16.2 16.3 16.4 160-pin Male DIN 41612 Connector ― 16.5 16.6 16.7 16.8 (viewed from front of module) Figure 5.1 - 16-Bank, 8-Channel 1-Pole MUX Module 40-614-001: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.1...
  • Page 66 15.4.1 15.4.2 C16.1 16.1.1 16.1.2 16.2.1 16.2.2 160-pin Male DIN 41612 Connector C16.2 16.3.1 16.3.2 16.4.1 16.4.2 (viewed from front of module) Figure 5.2 - 16-Bank, 4-Channel 2-Pole MUX Module 40-614-002: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.2...
  • Page 67 7.15 7.16 ― ― 8.10 8.11 8.12 160-pin Male DIN 41612 Connector ― 8.13 8.14 8.15 8.16 (viewed from front of module) Figure 5.3 - 8-Bank, 16-Channel 1-Pole MUX Module 40-614-003: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.3...
  • Page 68 8.4.1 8.4.2 ― 8.5.1 8.5.2 8.6.1 8.6.2 160-pim Male DIN 41612 Connector ― 8.7.1 8.7.2 8.8.1 8.8.2 (viewed from front of module) Figure 5.4 - 8-Bank, 8-Channel 2-Pole MUX Module 40-614-004: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.4...
  • Page 69 8.4.1 8.4.2 C8.3 8.1.3 8.1.4 8.2.3 8.2.4 160-pin Male DIN 41612 Connector C8.4 8.3.3 8.3.4 8.4.3 8.4.4 (viewed from front of module) Figure 5.5 - 8-Bank, 4-Channel 4-Pole MUX Module 40-614-005: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.5...
  • Page 70 4.23 4.24 ― 4.25 4.26 4.27 4.28 160-pin Male DIN 41612 Connector ― 4.29 4.30 4.31 4.32 (viewed from front of module) Figure 5.6 - 4-Bank, 32-Channel 1-Pole MUX Module 40-614-006: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.6...
  • Page 71 4.12.1 4.12.2 ― 4.13.1 4.13.2 4.14.1 4.14.2 160-pin Male DIN 41612 Connector ― 4.15.1 4.15.2 4.16.1 4.16.2 (viewed from front of module) Figure 5.7 - 4-Bank, 16-Channel 2-Pole MUX Module 40-614-007: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.7...
  • Page 72 4.4.3 4.4.4 ― 4.5.3 4.5.4 4.6.3 4.6.4 160-pin Male DIN 41612 Connector ― 4.7.3 4.7.4 4.8.3 4.8.4 (viewed from front of module) Figure 5.8 - 4-Bank, 8-Channel 4-Pole MUX Module 40-614-008: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.8...
  • Page 73 4.4.5 4.4.6 C4.7 4.1.7 4.1.8 4.2.7 4.2.8 160-pin Male DIN 41612 Connector C4.8 4.3.7 4.3.8 4.4.7 4.4.8 (viewed from front of module) Figure 5.9 - 4-Bank, 4-Channel 8-Pole MUX Module 40-614-009: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.9...
  • Page 74 2.55 2.56 ― 2.57 2.58 2.59 2.60 160-pin Male DIN 41612 Connector ― 2.61 2.62 2.63 2.64 (viewed from front of module) Figure 5.10 - 2-Bank, 64-Channel 1-Pole MUX Module 40-614-010: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.10...
  • Page 75 2.27.1 2.27.2 2.28.1 2.28.2 2.29.1 2.29.2 2.30.1 2.30.2 160-pin Male DIN 41612 Connector 2.31.1 2.31.2 2.32.1 2.32.2 (viewed from front of module) Figure 5.11 - 2-Bank, 32-Channel 2-Pole MUX Module 40-614-011: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.11...
  • Page 76 2.12.3 2.12.4 ― 2.13.3 2.13.4 2.14.3 2.14.4 160-pin Male DIN 41612 Connector ― 2.15.3 2.15.4 2.16.3 2.16.4 (viewed from front of module) Figure 5.12 - 2-Bank, 16-Channel 4-Pole MUX Module 40-614-012: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.12...
  • Page 77 2.4.7 2.4.8 ― 2.5.7 2.5.8 2.6.7 2.6.8 160-pin Male DIN 41612 Connector ― 2.7.7 2.7.8 2.8.7 2.8.8 (viewed from front of module) Figure 5.13 - 2-Bank, 8-Channel 8-Pole MUX Module 40-614-0013: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.13...
  • Page 78 2.4.13 2.4.14 C2.15 2.1.15 2.1.16 2.2.15 2.2.16 160-pin Male DIN 41612 Connector C2.16 2.3.15 2.3.16 2.4.15 2.4.16 (viewed from front of module) Figure 5.14 - 2-Bank, 4-Channel 16-Pole MUX Module 40-614-014: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.14...
  • Page 79 ― ― ― ― ― ― ― ― ― ― ― 160-pin Male DIN 41612 Connector ― (viewed from front of module) Figure 5.15 - 1-Bank, 128-Channel 1-Pole MUX Module 40-614-015: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.15...
  • Page 80 60.1 60.2 ― 61.1 61.2 62.1 62.2 160-pin Male DIN 41612 Connector ― 63.1 63.2 64.1 64.2 (viewed from front of module) Figure 5.16 - 1-Bank, 64-Channel 2-Pole MUX Module 40-614-016: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.16...
  • Page 81 28.3 28.4 ― 29.3 29.4 30.3 30.4 160-pin Male DIN 41612 Connector ― 31.3 31.4 32.3 32.4 (viewed from front of module) Figure 5.17 - 1-Bank, 32-Channel 4-Pole MUX Module 40-614-017: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.17...
  • Page 82 12.7 12.8 ― 13.7 13.8 14.7 14.8 160-pin Male DIN 41612 Connector ― 15.7 15.8 16.7 16.8 (viewed from front of module) Figure 5.18 - 1-Bank, 16-Channel 8-Pole MUX Module 40-614-018: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.18...
  • Page 83 4.15 4.16 ― 5.15 5.16 6.15 6.16 160-pin Male DIN 41612 Connector ― 7.15 7.16 8.15 8.16 (viewed from front of module) Figure 5.19 - 1-Bank, 8-Channel 16-Pole MUX Module 40-614-019: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.19...
  • Page 84 4.29 4.30 C.31 1.31 1.32 2.31 2.32 160-pin Male DIN 41612 Connector C.32 3.31 3.32 4.31 4.32 (viewed from front of module) Figure 5.20 - 1-Bank, 4-Channel 32-Pole MUX Module 40-614-020: Pinouts HIGH DENSITY 2A MUX MODULE 40-614 Page 5.20...

  • Page 85: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 86 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 2A MUX MODULE 40-614 Page 6.2...

  • Page 87: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 88 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - Relay Look-Up Table: 40-614-001 16 Bank, 8 Channel, 1 Pole Bank Channel Relay Bank Channel Relay Even or odd selection Even or odd selection RL41 1.1, 1.2 9.1, 9.2 RL 42 1.3, 1.4...
  • Page 89 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.2 - Relay Look-Up Table: 40-614-002 16 Bank, 4 Channel, 2 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 9.1.1, 9.1.2 RL 42 1.2.1, 1.2.2 9.2.1, 9.2.2 RL43 1.3.1, 1.3.2 9.3.1, 9.3.2...
  • Page 90 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.3 - Relay Look-Up Table: 40-614-003 8 Bank, 16 Channel, 1 Pole Bank Channel Relay Bank Channel Relay Even or odd selection Even or odd selection RL41 1.1, 1.2 5.1, 5.2 RL 42 1.3, 1.4...
  • Page 91 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.4 - Relay Look-Up Table: 40-614-004 8 Bank, 8 Channel, 2 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 5.1.1, 5.1.2 RL 42 1.2.1, 1.2.2 5.2.1, 5.2.2 RL43 1.3.1, 1.3.2 5.3.1, 5.3.2...
  • Page 92 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.5 - Relay Look-Up Table: 40-614-005 8 Bank, 4 Channel, 4 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 5.1.1, 5.1.2 RL 42 1.2.1, 1.2.2 5.2.1, 5.2.2 RL43 1.3.1, 1.3.2 5.3.1, 5.3.2...
  • Page 93 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.6 - Relay Look-Up Table: 40-614-006 4 Bank, 32 Channel, 1 Pole Bank Channel Relay Bank Channel Relay Even or odd selection Even or odd selection RL41 1.1, 1.2 3.1, 3.2 RL 42 1.3, 1.4...
  • Page 94 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.7 - Relay Look-Up Table: 40-614-007 4 Bank, 16 Channel, 2 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 3.1.1, 3.1.2 RL 42 1.2.1, 1.2.2 3.2.1, 3.2.2 RL43 1.3.1, 1.3.2 3.3.1, 3.3.2...
  • Page 95 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.8 - Relay Look-Up Table: 40-614-008 4 Bank, 8 Channel, 4 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 3.1.1, 3.1.2 RL 42 1.2.1, 1.2.2 3.2.1, 3.2.2 RL43 1.3.1, 1.3.2 3.3.1, 3.3.2...
  • Page 96 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.9 - Relay Look-Up Table: 40-614-009 4 Bank, 4 Channel, 8 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 3.1.1, 3.1.2 RL 42 1.2.1, 1.2.2 3.2.1, 3.2.2 RL43 1.3.1, 1.3.2 3.3.1, 3.3.2...
  • Page 97 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.10 - Relay Look-Up Table: 40-614-010 2 Bank, 64 Channel, 1 Pole Bank Channel Relay Bank Channel Relay Even or odd selection Even or odd selection RL41 1.1, 1.2 2.1, 2.2 RL 42 1.3, 1.4...
  • Page 98 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.11 - Relay Look-Up Table: 40-614-011 2 Bank, 32 Channel, 2 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 2.1.1, 2.1.2 RL 42 1.2.1, 1.2.2 2.2.1, 2.2.2 RL43 1.3.1, 1.3.2 2.3.1, 2.3.2...
  • Page 99 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.12 - Relay Look-Up Table: 40-614-012 2 Bank, 16 Channel, 4 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 2.1.1, 2.1.2 RL 42 1.2.1, 1.2.2 2.2.1, 2.2.2 RL43 1.3.1, 1.3.2 2.3.1, 2.3.2...
  • Page 100 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.13 - Relay Look-Up Table: 40-614-013 2 Bank, 8 Channel, 8 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 2.1.1, 2.1.2 RL 42 1.2.1, 1.2.2 2.2.1, 2.2.2 RL43 1.3.1, 1.3.2 2.3.1, 2.3.2...
  • Page 101 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.14 - Relay Look-Up Table: 40-614-014 2 Bank, 4 Channel, 16 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1.1, 1.1.2 2.1.1, 2.1.2 RL 42 1.2.1, 1.2.2 2.2.1, 2.2.2 RL43 1.3.1, 1.3.2 2.3.1, 2.3.2...
  • Page 102 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.15 - Relay Look-Up Table: 40-614-015 1 Bank, 128 Channel, 1 Pole Bank Channel Relay Bank Channel Relay Even or odd selection ― RL41 1, 2 65, 66 RL 42 3, 4 67, 68...
  • Page 103 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.16 - Relay Look-Up Table: 40-614-016 1 Bank, 64 Channel, 2 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1, 1.2 33.1, 33.2 RL 42 2.1, 2.2 34.1, 34.2 RL43 3.1, 3.2 35.1, 35.2...
  • Page 104 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.17 - Relay Look-Up Table: 40-614-017 1 Bank, 32 Channel, 4 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1, 1.2 1.3, 1.4 RL 42 2.1, 2.2 2.3, 2.4 RL43 3.1, 3.2 3.3, 3.4...
  • Page 105 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.18 - Relay Look-Up Table: 40-614-018 1 Bank, 16 Channel, 8 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1, 1.2 1.5, 1.6 RL 42 2.1, 2.2 2.5, 2.6 RL43 3.1, 3.2 3.5, 3.6...
  • Page 106 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.19 - Relay Look-Up Table: 40-614-019 1 Bank, 8 Channel, 16 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1, 1.2 1.9, 1.10 RL 42 2.1, 2.2 2.9, 2.10 RL43 3.1, 3.2 3.9, 3.10...
  • Page 107 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.20 - Relay Look-Up Table: 40-614-020 1 Bank, 4 Channel, 32 Pole Bank Channel Relay Bank Channel Relay ― ― RL41 1.1, 1.2 1.17, 1.18 RL 42 2.1, 2.2 2.17, 2.18 RL43 3.1, 3.2 3.17, 3.18...
  • Page 108 RL58 RL59 RL60 RL61 RL62 RL63 RL64 RL65 RL66 RL67 RL68 RL69 RL70 RL71 RL72 RL73 RL74 RL75 RL76 RL77 RL78 RL79 RL80 Spare Figure 7.1 - 40-614 Multiplexer Module: Relay Positions HIGH DENSITY 2A MUX MODULE 40-614 Page 7.22...
