PXI Multi-Banked Multiplexer
• High Density 2 Amp Multiplexer
• 8-Banks of 8-Chan, 4-Banks of 16, 2-Banks of 32 &
Single 64-Chan Multiplexer
• 1-Pole Switching
• 2A Current Rating With 90W/500VA Max Power
• Hot Switch to 110VDC/250VAC
• Cold Switch to 400VDC/250VAC
• VISA, IVI & Kernel Drivers Supplied for Windows
• Supported by PXI or LXI Chassis
• 3 Year Warranty

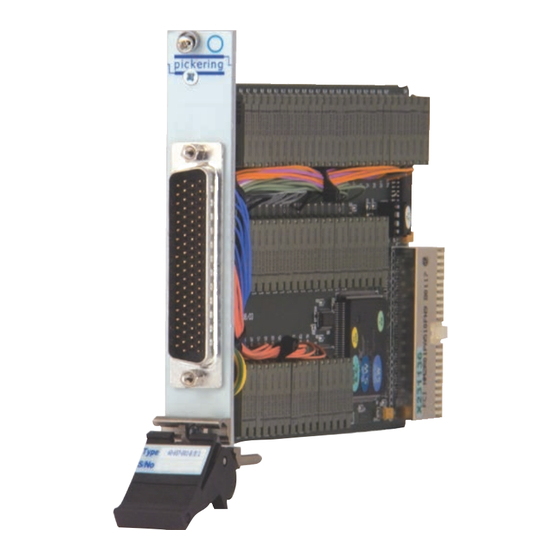

The 40-657 is a high density power multiplexer modules available
in a choice of configurations with up to 8 separate multiplexers
with 1-pole switching. They are suitable for switching signals to
110VDC/250VAC at 2 Amps, 90W.
Range Description:
• 40-657-001-8/8/1
• 40-657-001-4/16/1
• 40-657-001-2/32/1
• 40-657-001-1/64/1
Larger multiplexers may be constructed by daisy chaining the
common signals from multiple modules. For example 7 modules
with 64-channels will form a 448-channel multiplexer.
1
2
3
4
Com
5
6
7
8
1
2
3
4
Com
5
6
7
8
1
2
3
4
Com
5
6
7
8
1
2
3
4
Com
5
6
7
8

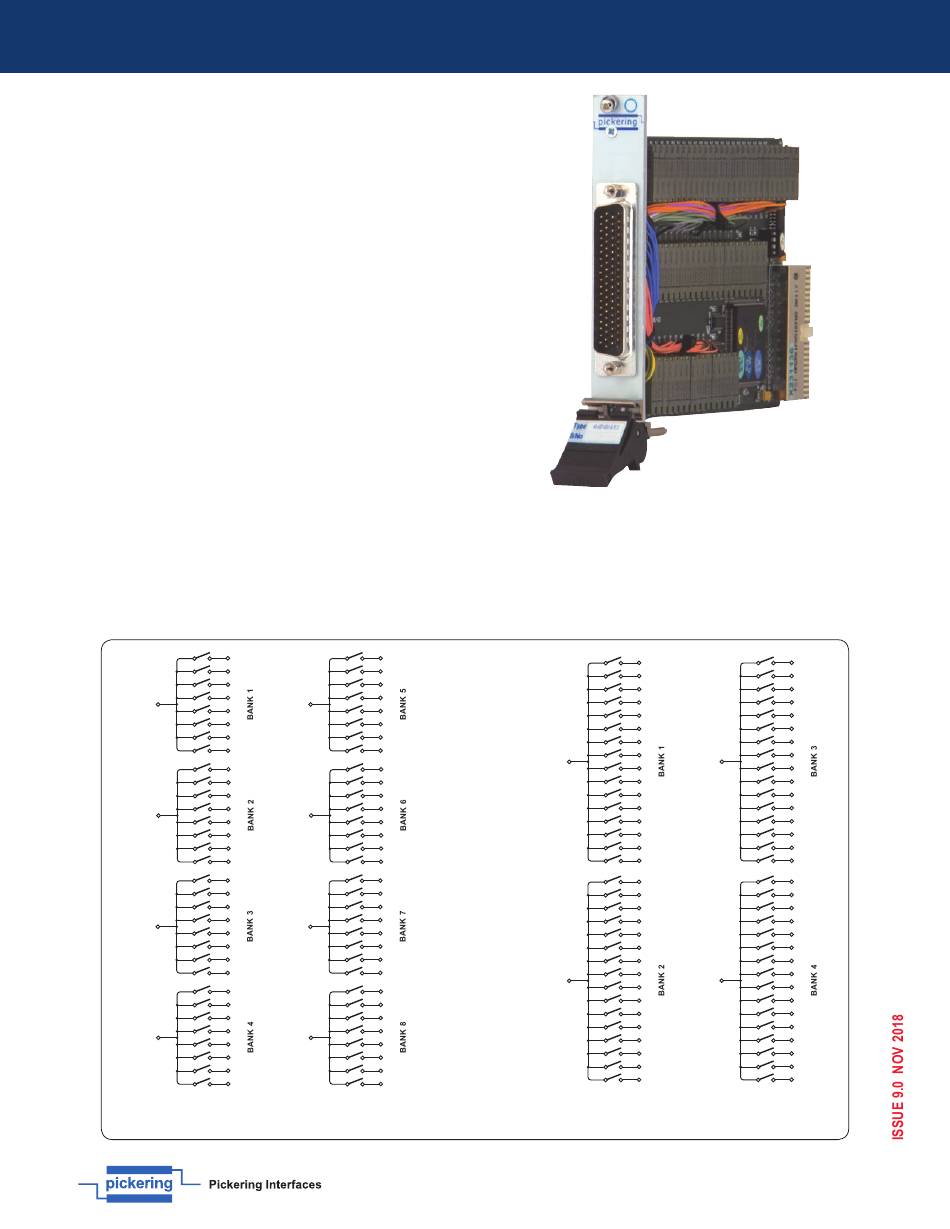

Schematic for the 8-Bank, 8-Channel
Multiplexer (40-657-001-8/8/1)
8-Bank, 8-Channel, 1-pole.
4-Bank, 16-Channel, 1-pole.
2-Bank, 32-Channel, 1-pole.
1-Bank, 64-Channel, 1-pole.
1
2
3
4
Com
5
6
7
8
1
2
3
4
Com
5
6
7
8
1
2
3
4
Com
5
6
7
8
1
2
3
4
Com
5
6
7
8
The 40-657 allows multiple channels to be simultaneously
selected. Alternatively, product variants can be supplied that
operate as a conventional multiplexer with break-before-make
action when a new channel is selected.
We can construct custom cable assemblies for all of our PXI
modules, please contact sales office for further assistance.
1
2
3
4
5
6
7
8
Com
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
Com
9
10
11
12
13
14
15
16
Schematic for the 4-Bank, 16-Channel
Multiplexer (40-657-001-4/16/1)
40-657
1
2
3
4
5
6
7
8
Com
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
Com
9
10
11
12
13
14
15
16
pickeringtest.com
