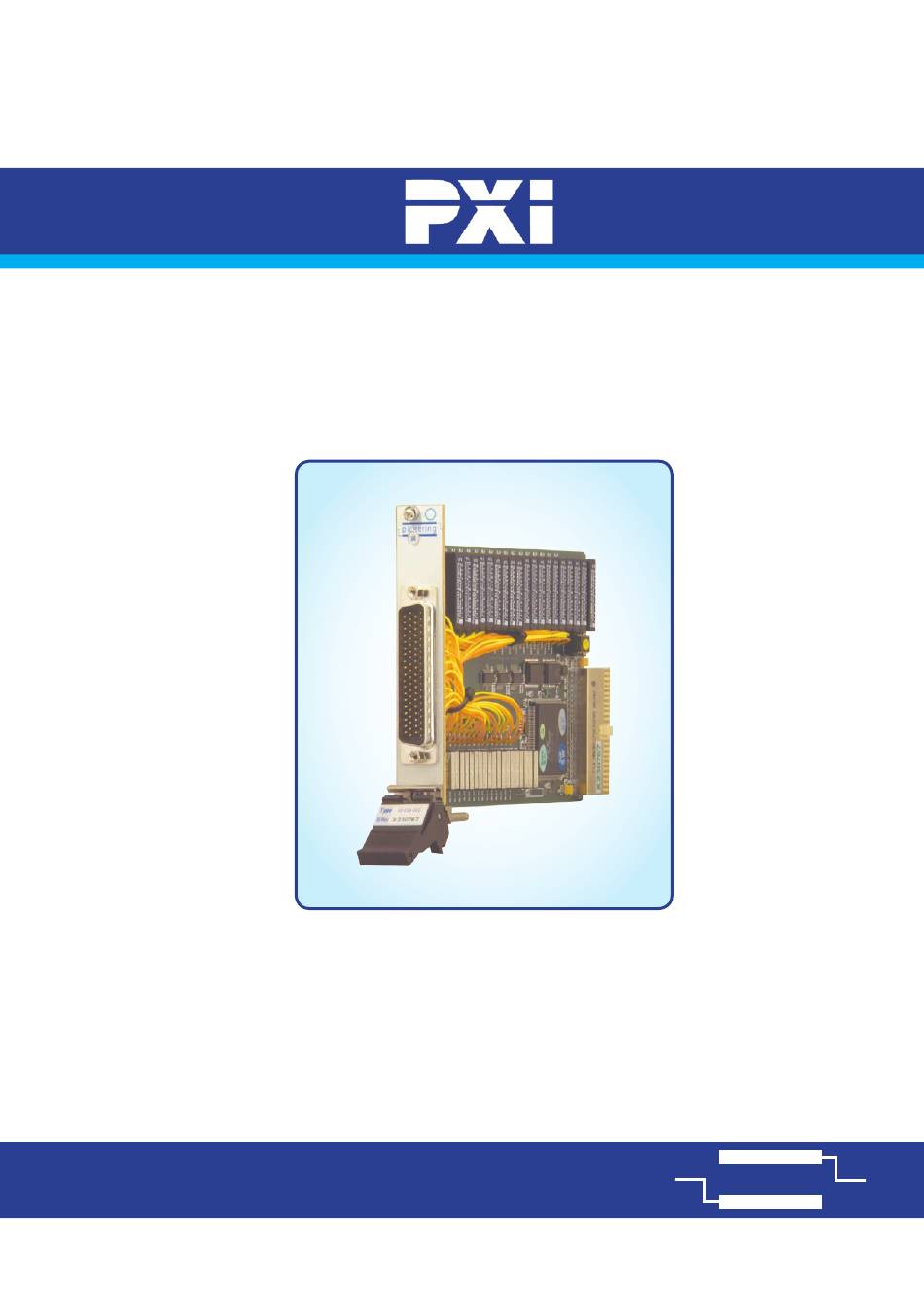

- Page 1 User Manual Power & Sense Multiplexer Module (Model No. 40-658) Issue 7.0 February 2019 pickeringtest.com pickering POWER & SENSE MULTIPLEXER MODULE 40-658 Page (1)
- Page 2 © COPYRIGHT (2019) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
- Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
-
Page 4: Product Safety
If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 POWER & SENSE MULTIPLEXER MODULE 40-658 Page (IV) Page (IV) -
Page 5: Table Of Contents
Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture 40-658 ..........4.2 Sub-unit Cross Reference ............4.3 Programming The Module 40-658 ........4.4 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1... - Page 6 THIS PAGE INTENTIONALLY BLANK POWER & SENSE MULTIPLEXER MODULE 40-658 Page (VI)
-
Page 7: Warnings And Cautions
Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must... - Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. POWER & SENSE MULTIPLEXER MODULE 40-658 Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...
-
Page 9: Technical Specification

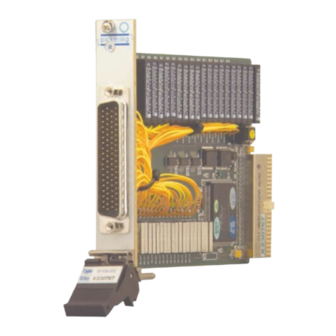

The 40-658 information. allows a single power supply to be connected in turn to a number of devices under test, simulating a battery or local power supply. - Page 10 Power & Sense MUX – 40-658 Relay Type Mechanical Characteristics The 40-658 is fitted with ruthenium reed relays, these offer very Single slot 3U PXI (CompactPCI card). long life with good low level switching performance and excellent 3D models for all versions in a variety of popular file formats are contact resistance stability.
- Page 11 Not Required Product Customization Spare Relay Kits Pickering PXI modules are designed and manufactured on our own Kits of replacement relays are available for the majority of flexible manufacturing lines, giving complete product control and Pickering’s PXI switching products, simplifying servicing and enabling simple customization to meet very specific requirements.
- Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
- Page 13 Power & Sense MUX – 40-658 Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
- Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK POWER & SENSE MULTIPLEXER MODULE 40-658 Page 1.6...
-
Page 15: Functional Description
104.1 204.1 104.2 204.2 115.1 215.1 115.2 215.2 116.1 216.1 116.2 216.2 117.1 217.1 117.2 217.2 118.1 218.1 118.2 218.2 Figure 2.1 - Power and Sense Multiplexer Module 40-658: Functional Block Diagram POWER & SENSE MULTIPLEXER MODULE 40-658 Page 2.1... - Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK POWER & SENSE MULTIPLEXER MODULE 40-658 Page 2.2...
-
Page 17: Installation
Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident. -
Page 18: Hardware Installation
For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence. -
Page 19: Testing Operation
Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. - Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK POWER & SENSE MULTIPLEXER MODULE 40-658 Page 3.4...
-
Page 21: Programming Guide
SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads... -
Page 22: Module Architecture 40-658
MODULE ARCHITECTURE 40-658: MULTIPLEXER MODULES The 40-658 Power and Sense Multiplexer Module utilises 2 arrays of 18 DPST relays. In the default state all relays are open circuit. Energising a particular relay creates a signal path between the common terminals and the corresponding channel terminals. - Page 23 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.1 - Multiplexer Module 40-658: Sub-units 2-Pole 18-Way Power/Sense MUX Power Multiplexer Sense Multiplexer Relay Relay Bank Signal Path Bank Signal Path Number Number 101.1 to C1.1 201.1 to C2.1 101.2 to C1.2 201.2 to C2.2...
-
Page 24: Programming The Module 40-658
SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE 40-658 Here are some simple examples of using the drivers with the 40-658-002 Multiplexer module. Sub-unit 1 selects the power multiplexer, sub-unit 2 selects the sense multiplexer Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;... - Page 25 218.2 40-658-002 Figure 5.1 - Module 40-658: Pinout - 78-pin Male D-type Viewed From Front of Module (Pins 1 to 38 are for the Sense Mux, and Pins 40 to 77 are for the Power Mux) POWER & SENSE MULTIPLEXER MODULE 40-658...
- Page 26 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK POWER & SENSE MULTIPLEXER MODULE 40-658 Page 5.2...
-
Page 27: Trouble Shooting
PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible... - Page 28 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK POWER & SENSE MULTIPLEXER MODULE 40-658 Page 6.2...
-
Page 29: Maintenance Information
For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading. - Page 30 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - Power/Sense Multiplexer Module 40-658-002: Relay Numbering 2-Pole 18-Way Power/Sense MUX Power Multiplexer Sense Multiplexer Relay Relay Bank Signal Path Bank Signal Path Number Number 101.1 to C1.1 201.1 to C2.1 101.2 to C1.2 201.2 to C2.2...
- Page 31 SECTION 7 - MAINTENANCE INFORMATION pickering Figure 7.1 - Multiplexer Module: 40-658 Component Layout POWER & SENSE MULTIPLEXER MODULE 40-658 Page 7.3...
- Page 32 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK POWER & SENSE MULTIPLEXER MODULE 40-658 Page 7.4...
