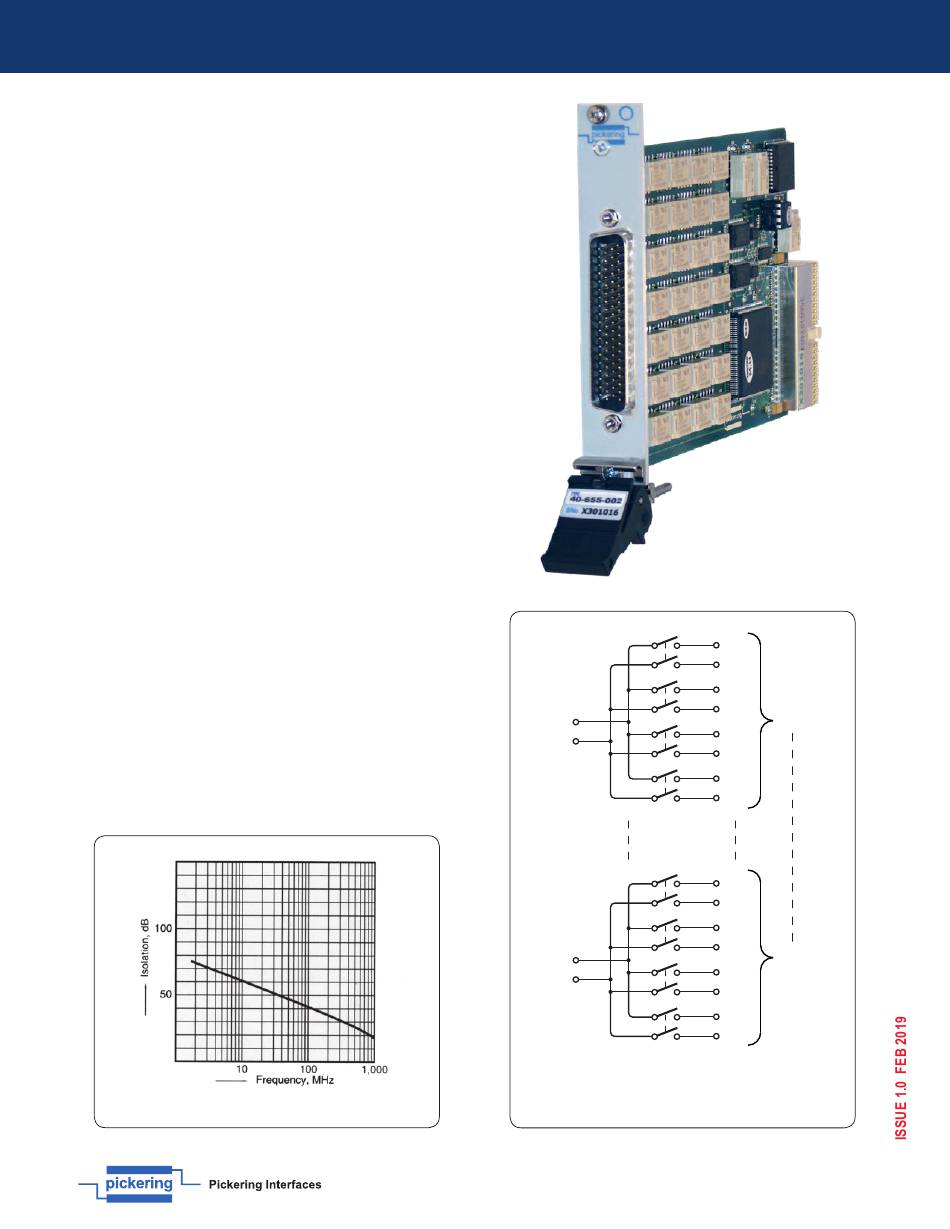

Pickering 40-655A Manual

PXI 7 Bank, 4 Channel Multiplexer

• High Density Multiplexer Suitable For
Telecommunication Applications
• 7 Separate 4 Channel Multiplexers
• Configurable To Form Other Multiplexer
Sizes Up To 56 Channel
• 2-Pole Switching
• 10MHz Typical Bandwidth
• Operating Speed 4.5ms Typical per Relay
• Switch up to 220VDC/125VAC, 2 Amps
with 60W Max Power
• VISA, IVI & Kernel Drivers Supplied for Windows
• Supported by PXI or LXI Chassis
• 3 Year Warranty
The 40-655A-002 module contains 7 separate 4-channel
multiplexers with 2-pole switching, suitable for signals up to
220VDC (125VAC).
It can be configured in many multiplexer switching formats (see
schematic overleaf), for example 56-channel 1-pole, 28-channel
2-pole, etc. The 40-655A can be either factory configured or later
re-configured by the user to form a different multiplexer function.
The 40-655A can be operated as a conventional multiplexer
with break-before-make action when a new channel is selected.
Alternatively, product variants can be supplied that allow multiple
channels to be simultaneously selected.
The 40-655A channel selection configurations have been revised
from the 40-655. The 40-655A defaults to single channel selection
with multiple channel selection variants defined by use of a suffix.
The 40-655A has been specifically designed for switching POTS,
ISDN or xDSL telephony signals. Please contact Pickering sales
office for more assistance with Telecom switching applications.
RF Crosstalk Performance
Com1
Com2
Com1
Com2
Simplified Schematic for the 40-655A MUX,
7 Banks Of 4-Channel Are Shown
(see detailed schematic overleaf)
40-655A
1.1
1.2
2.1
2.2
BANK 1
3.1
3.2
4.1
4.2
1.1
1.2
2.1
2.2
BANK 7
3.1
3.2
4.1
4.2
