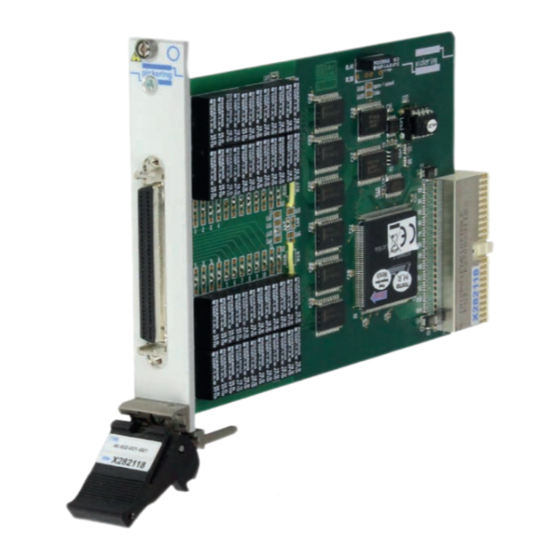

Pxi single/dual 16/24/32/48 channel versatile multiplexer module

Advertisement

Quick Links

40-630A/632A User Manual
PXI Single/Dual 16/24/32/48 Channel
Versatile Multiplexer Module
pickeringtest.com
Issue 1.1 March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-630A and is the answer not in the manual?

Questions and answers

Summary of Contents for Pickering 40-630A

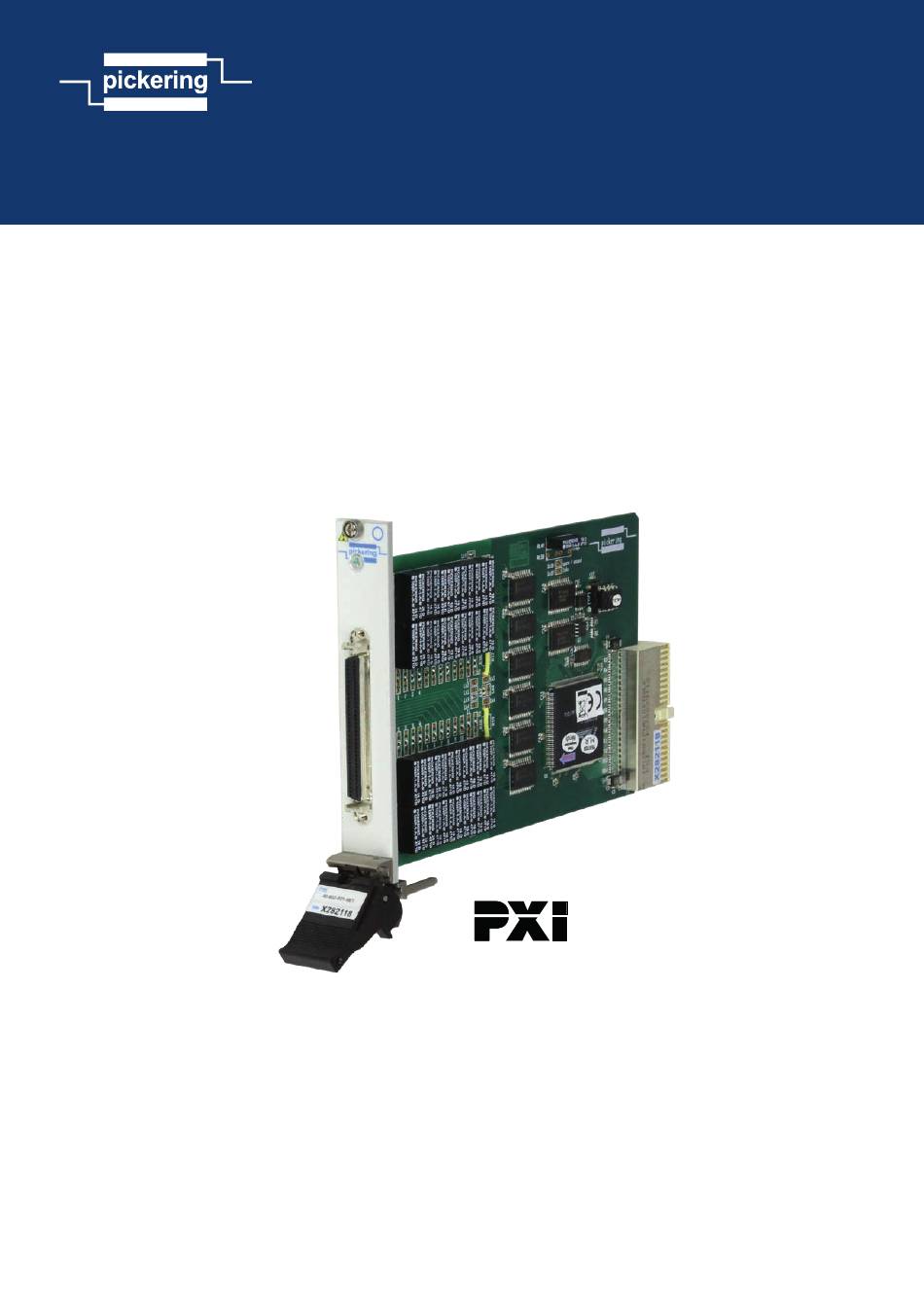

  • Page 1 40-630A/632A User Manual PXI Single/Dual 16/24/32/48 Channel Versatile Multiplexer Module pickeringtest.com Issue 1.1 March 2020...
  • Page 2 © COPYRIGHT (2020) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 VERSATILE MULTIPLEXER MODULE 40-630A/632A Page (IV) Page (IV)
  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture .............4.2 Programming The Module ............4.5 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK VERSATILE MULTIPLEXER MODULE 40-630A/632A Page (VI)
  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. VERSATILE MULTIPLEXER MODULE 40-630A/632A Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...
  • Page 9: Technical Specification

    Common Common The 630A/632A channel selection configurations have been revised from the 40-630/632. The 40-630A/632A defaults to single channel selection with the multiple channel selection variant defined by use of a suffix. Single: 16, 32 or...
  • Page 10 Overview SECTION 1 - TECHNICAL SPECIFICATION Dual 16/24 Channel MUX – 40-630A/632A pickering Isolation Isolation Switch Switch Com 1 Com 2 Isolation Switch Com 1 32.1 Com 2 32.2 Com 3 40-630A-022-32/2 40-630A-022-64/1 Com 4 Single 64-Channel 1-Pole MUX Single 32-Channel 2-Pole MUX 16.1...
  • Page 11 Specifications Dual 16/24 Channel MUX – 40-630A/632A Relay Type Mechanical Characteristics The 40-630A is fitted with ruthenium sputtered reed relays, these Single slot 3U PXI (CompactPCI card). offer very long life with good low level switching performance and Module weight: 200g (40-630A-022-32/2) excellent contact resistance stability.
  • Page 12 40-630A-022-32/2-M office. Product Customization Mating Connectors & Cabling Pickering PXI modules are designed and manufactured on our own For connection accessories for the 40-630A/632A series please flexible manufacturing lines, giving complete product control and refer to the...
  • Page 13 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 14 Dual 16/24 Channel MUX – 40-630A/632A Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
  • Page 15: Functional Description

    FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The Versatile Multiplexer Module 40-630A/632A is powered by a +5V input via Compact PCI connector J1. The interface to the user test equipment is via the front panel mounted 68-pin micro-D connector, J2.
  • Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 2.2...
  • Page 17: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.
  • Page 18: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.
  • Page 19: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 3.4...
  • Page 21: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...
  • Page 22: Module Architecture

    MODULE ARCHITECTURE The 40-630A/632A is an array of 32, 36 or 48 SPST/DPST relays depending on the model number. In the default state all relays are open circuit. Energising a particular relay creates a signal path between the common terminal(s) and the corresponding channel terminal(s).
  • Page 23 Com1 to Ch10.1 Not Fitted Com to Ch6 Not Fitted Com2 to Ch10.2 Not Fitted Com to Ch7 Not Fitted Com3 to Ch10.3 Not Fitted Com to Ch8 Not Fitted Com4 to Ch10.4 Not Fitted VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 4.3...
  • Page 24 Com2 to Ch1.2 Not Fitted Com1 to Ch2.1 Not Fitted Com2 to Ch2.2 Not Fitted Com1 to Ch3.1 Not Fitted Com2 to Ch3.2 Not Fitted Com1 to Ch4.1 Not Fitted Com2 to Ch4.2 Not Fitted VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 4.4...
  • Page 25: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-630A-022-64/1 (64 Channel 1 Pole) Multiplexer module. Other modules in the range operate in a similar way but the sub-units / bits may vary. Using PILPXI...
  • Page 26 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 4.6...
  • Page 27 30.2 14.3 14.4 31.1 31.2 15.3 15.4 32.1 32.2 16.3 16.4 40-630A-022 40-630A-022 40-630A-022 64/1 32/2 16/4 Figure 5.1 - Versatile Multiplexer Module 40-630A-022: Pinouts (68-pin micro-D female connector viewed from front of module) VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 5.1...
  • Page 28 213.1 213.2 214.1 214.2 215.1 215.2 216.1 216.2 C2.1 C2.2 40-630A-022 40-630A-022 D 16/2 D 32/1 Figure 5.2 - Versatile Multiplexer Module 40-630A-022: Pinouts (continued) (68-pin micro-D female connector viewed from front of module) VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 5.2...
  • Page 29 15.2 16.2 17.2 18.2 19.2 20.2 21.2 22.2 23.2 24.2 40-632A-021 40-632A-021 40-632A-021 48/1 24/2 D 24/1 Figure 5.3 - Versatile Multiplexer Module 40-632A-021/022: Pinouts (68-pin micro-D female connector viewed from front of module) VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 5.3...
  • Page 30 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 5.4...
  • Page 31: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 32 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 6.2...
  • Page 33: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 34 Com1 to Ch12.1 Com3 to Ch12.3 Com to Ch23 Com to Ch55 Com1 to Ch12.1 Com1 to Ch28.1 Com2 to Ch12.2 Com4 to Ch12.4 Com to Ch24 Com to Ch56 Com2 to Ch12.2 Com2 to Ch28.2 VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 7.2...
  • Page 35 Com1 to Ch16.1 Com to Ch32 Com1 Com2 to Ch16.2 Com to Ch23 Com to Ch23 Com1 to Ch12.1 Com1 to Ch12.1 Com to Ch24 Com to Ch24 Com2 to Ch12.2 Com2 to Ch12.2 VERSATILE MULTIPLEXER MODULE 40-630A/632A Page 7.3...
  • Page 36 196r1 SPARE RL49 10/98 spare relays SPARE RL50 pickering Lk11 spare / unused links Lk12 Lk10 Figure 7.1 - Versatile Multiplexer Module 40-630A-022: Component Layout 196r1 SPARE RL49 10/98 spare relays RL50 pickering Lk11 spare / unused links Lk12 Lk10 Figure 7.2 - Versatile Multiplexer Module 40-632A-021: Component Layout...
