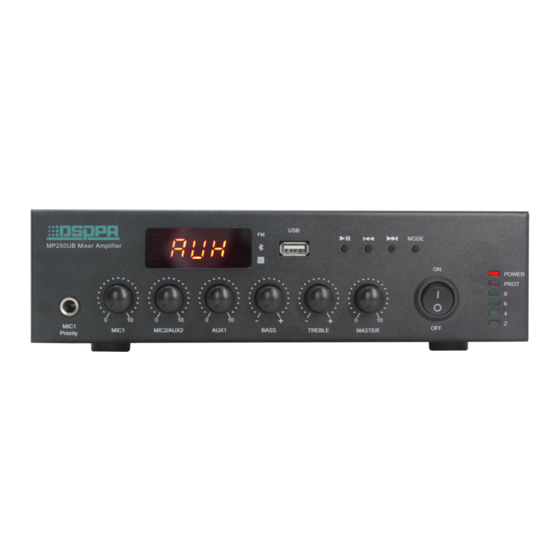

- Page 1 MP250UB Mini Mixer Amplifier www.dsppatech.com User Manual Guangzhou DSPPA Audio Co., Ltd.
- Page 3 Safety Precautions 1. Safety Precautions Warning! To reduce the risk of electric shock or equipment damage, please follow the following requirements: ● Please do NOT connect this device to the power source, before the system is correctly connected. ● It is important to ensure that input voltage to the device is the same as required voltage of the device; otherwise the device may be damaged.
-
Page 5: Table Of Contents
CONTENT Introduction................................1 Product Overview..............................1 Product Features..............................1 Front Panel................................1 Rear Panel................................3 Operating Instructions............................4 Remote Controller..............................4 Specification................................5 Packing List................................5... -
Page 6: Introduction
Introduction Thanks for using our products. All our products are tested strictly before leaving the factory, with guaranteed quality. Our products are widely used in such places as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc., and they will be your ideal choice for public address system. - Page 7 Press “ON” to turn on the power, while press 7. MIC1 IN “OFF” to turn off the power. This button has priority function. (Level with EMC 15. LEVEL LED IN on the rear panel) Display the audio output level. 8. MIC1 VOL. Guangzhou DSPPA Audio Co., Ltd...
-
Page 8: Rear Panel
Rear Panel INPUT VOLTAGE SWITCH DC IN 24V/4A AC110-120V 50-60Hz AC220-240V 50-60Hz FM ANT AUX OUT AUX1 IN AUX2 IN MIC2 IN PUSH EMC IN +24V 350mV CAUTION R ISK OF ELECT RIC SHOCK D O NOT OPEN 警告 AUX2 MIC2 PHANTOM 请勿打开,以免触电... -
Page 9: Operating Instructions
⑤ 0-9 numeric keys, can be combined as a digital channel in FM for selection. ⑥ Mute button ⑦ Last song / (Last radio in FM) ⑧ Next song / (Next radio in FM) ⑨ Vol- ⑩ Vol+ ⑪ Cycle ⑫ Record button Guangzhou DSPPA Audio Co., Ltd... -
Page 10: Specification
Specification Model MP250UB Power Supply AC110-120V / AC220~240V 50/60Hz(Select via the switch) MIC1 IN Sensitivity 10mV±10% MIC2 IN Sensitivity 15mV±10% AUX1 IN Sensitivity 350mV±10% AUX2 IN Sensitivity 350mV±10% EMC IN Sensitivity 350mV±10% MIC Frequency Response 200Hz～10kHz（±3dB） AUX Frequency Response 100Hz～16kHz（±3dB）... - Page 11 © DSPPA Audio 丨 The specification will be subject to changes without notices. Guangzhou DSPPA Audio Co., Ltd. Address: No.1 Xiahe Road, Jianggao Town, Baiyun District, Guangzhou, China Post Code: 510450 Tel: +86-20-37166520 Website: www.dsppa.com...
