DSPPA MP9006 Operation Instructions Manual

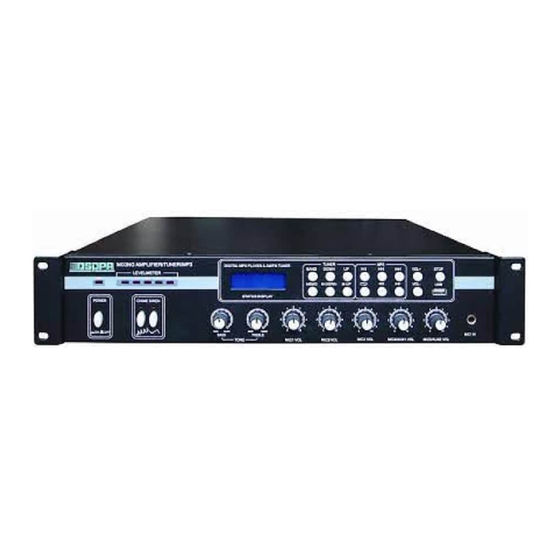

MP3/Tuner/Integrated PA Power Amplifier MP9006
MIXING AMPLIFIER/TUNER/MP3 MP9006
LEVELMETER
ON 2 4 6
POWER CHIME 1 CHIME 2
ON OFF
Operation Instructions
Welcome your patronage. Please read this manual carefully before use.
Performance features
●
5-channel microphone input ports, 2-channel auxiliary line input ports, 1-channel EMC input port,
1-channel line output port.
●
Tuning and MP3 converting play is very convenient, the station tuning and saving with permanent
saving function at power failure.
●
Chime output function.
●
Two stages priority mute function, available to insert the priority PA.
●
The tuner/MP3 status liquid crystal display (LCD), Chinese subtitle, 5-unit LED level meters,
inspecting the operating status very easily.
●
Each channel with independent volume control, treble and bass adjusting.
●
100V, 70V constant voltage output and 4Ω fixed resistance (balanced, non-grounding) output.
●
AC 220V working voltage.
●
Output short-circuit protection and alarm.
●
The single board is a complete PA system.
DIGITAL MP3 PLAYER & AM/FM TUNER
8 10
MIN MAX MIN
BASS TREBLE
TONE
5 5
6 6
4 4 4
3 7 3 7 3
2 8 2 8 2
1 9 1 9 1
0 10 0 10 0
MAX
MIC1 VOL MIC2 VOL MIC3 VOL
