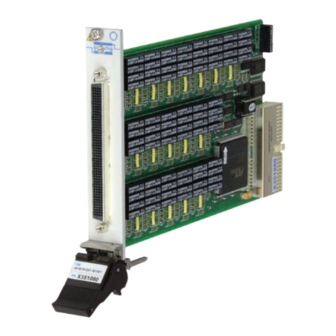

40-615A User Manual
PXI Very High Density Multiplexer Module
pickeringtest.com
Issue 2.3 May 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-615A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pickering 40-615A

Summary of Contents for Pickering 40-615A

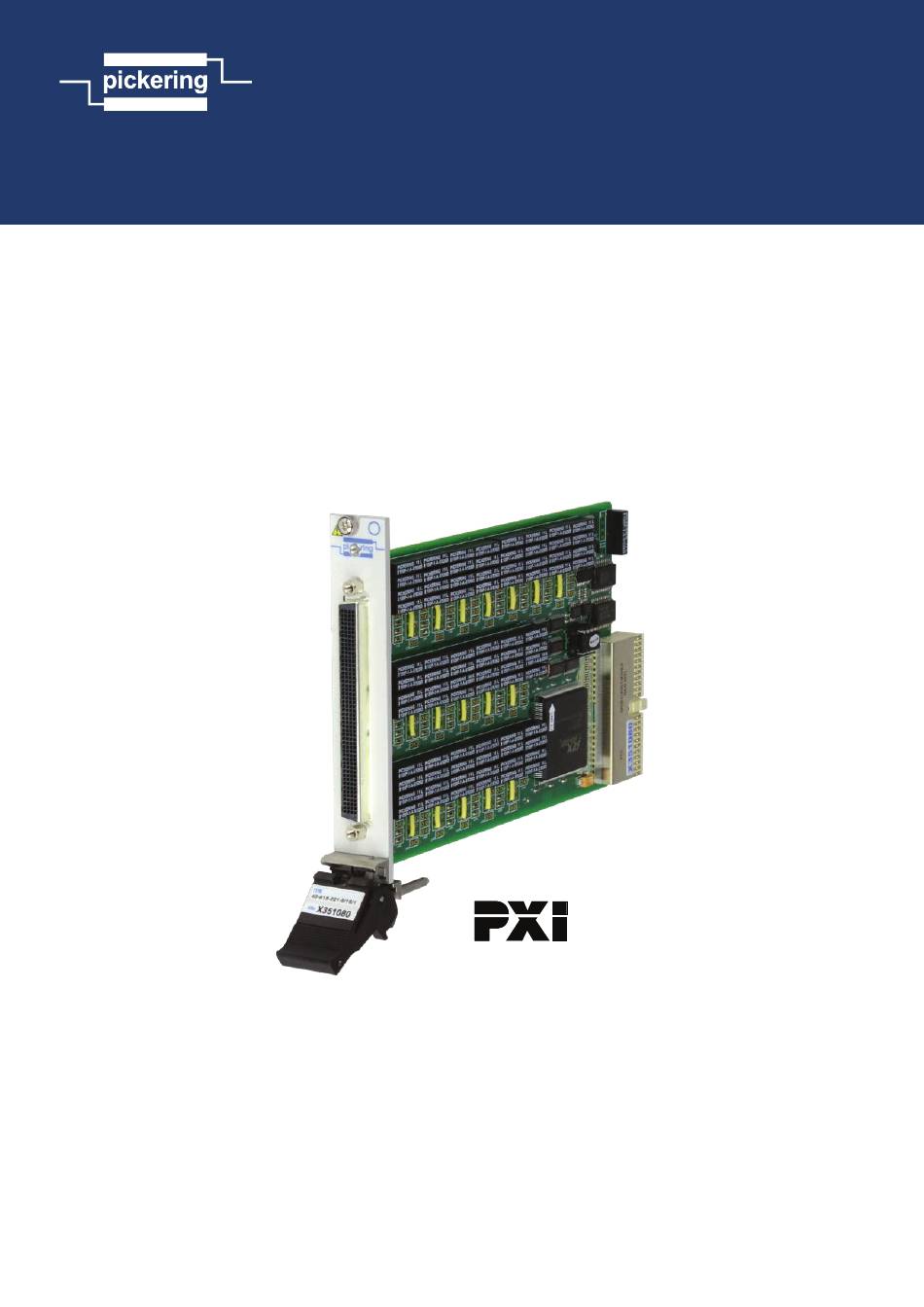

  • Page 1 40-615A User Manual PXI Very High Density Multiplexer Module pickeringtest.com Issue 2.3 May 2023...
  • Page 2 © COPYRIGHT (2023) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture - High Density 1-Pole ......4.2 Sub-unit Cross Reference - High Density 1-Pole ....4.3 Module Architecture - High Density 2-Pole......4.9 Sub-unit Cross Reference - High density 2-Pole ....4.10...
  • Page 6 THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page (VI)

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...

  • Page 9: Technical Specification

    The new The 40-615A is part of a family of high density PXI multiplexer connector series is 100% compatible with the Molex modules all sharing similar architecture and the same 200-pin...
  • Page 10 • 2 Banks of 80 Channels • 1 Bank of 160 Channels • Custom Configurations Note: Multi-channel selection not available in this mode PCB Layout for the 40-615A Very High Density Multiplexer Module pickeringtest.com VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 1.2...
  • Page 11 Very High Density MUX, 40-615A Relay Type Mechanical Characteristics The 40-615A is fitted with ruthenium sputtered reed relays, Single slot 3U PXI (CompactPCI card). these offer very long life with good low level switching Module weight: 240 g (40-615A-001).
  • Page 12 Note: The above modules are available in multiple channel selection mode by adding the “-M” suffix to the Mating Connectors & Cabling part number. For connection accessories for the 40-615A series please For example, the 20-bank, 4-channel 2-pole MUX with refer to the 90-002D...
  • Page 13 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 14 Very High Density MUX, 40-615A Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...

  • Page 15: Functional Description

    40-615A-003 40-615A-014 40-615A-004 40-615A-005 40-615A-015 40-615A-006 40-615A-007 40-615A-016 40-615A-008 40-615A-009 40-615A-017 40-615A-010 40-615A-011 40-615A-018 40-615A-012 ISOLATION SWITCHES COMMON COMMON COMMON Figure 2.1 - Very High Density Multiplexer Module 40-615A: Functional Block Diagram VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 2.1...
  • Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 2.2...

  • Page 17: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 18: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 19: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 3.4...

  • Page 21: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 22: Module Architecture - High Density 1-Pole

    MODULE ARCHITECTURE: HIGH DENSITY 1 POLE MUX The 40-615A High Density 1 Pole Multiplexer is an array of 80 DPST relays and 40 SPST Isolation switches. In the default state all relays are open circuit. Energising a particular relay creates a signal path between the common terminal and the corresponding channel terminal(s).
  • Page 23 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.1 - Multiplexer Module 40-615A-001: Sub-Units 20 Bank, 8 Channel, 1 Pole Active 1-Pole Relay (Isolation) Active 2-Pole Relay (Multiplexer) Bank Chan Relays Bank Chan Relays Bank Chan Relays Bank Chan Relays 100 101...
  • Page 24 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.2 - Multiplexer Module 40-615A-003: Sub-Units 10 Bank, 16 Channel, 1 Pole Active 1-Pole Relay (Isolation) Active 2-Pole Relay (Multiplexer) Bank Chan Relays Bank Chan Relays Bank Chan Relays Bank Chan Relays 100 101...
  • Page 25 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.3 - Multiplexer Module 40-615A-005: Sub-Units 5 Bank, 32 Channel, 1 Pole Active 1-Pole Relay (Isolation) Active 2-Pole Relay (Multiplexer) Bank Chan Relays Bank Chan Relays Bank Chan Relays Bank Chan Relays 100 101...
  • Page 26 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.4 - Multiplexer Module 40-615A-007: Sub-Units 4 Bank, 40 Channel, 1 Pole Active 1-Pole Relay (Isolation) Active 2-Pole Relay (Multiplexer) Bank Chan Relays Bank Chan Relays Bank Chan Relays Bank Chan Relays 100 101...
  • Page 27 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.5 - Multiplexer Module 40-615A-009: Sub-Units 2 Bank, 80 Channel, 1 Pole Active 1-Pole Relay (Isolation) Active 2-Pole Relay (Multiplexer) Bank Chan Relays Bank Chan Relays Bank Chan Relays Bank Chan Relays 100 101...
  • Page 28 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.6 - Multiplexer Module 40-615A-011: Sub-Units 1 Bank, 160 Channel, 1 Pole Active 1-Pole Relay (Isolation) Active 2-Pole Relay (Multiplexer) Bank Chan Relays Bank Chan Relays Bank Chan Relays Bank Chan Relays 100 101...

  • Page 29: Module Architecture - High Density 2-Pole

    MODULE ARCHITECTURE: HIGH DENSITY 2 POLE MUX The 40-615A High Density 2 Pole Multiplexer is an array of 80 DPST relays. In the default state all relays are open circuit. Energising a particular relay creates a signal path between the relays common terminals and the corresponding channel terminals.
  • Page 30 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.7 - Multiplexer Module 40-615A-002: Sub-Units 20 Bank, 4 Channel, 2 Pole Active 2-Pole Relay Bank Chan Bank Chan Bank Chan Bank Chan VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 4.10...
  • Page 31 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.8 - Multiplexer Module 40-615A-004: Sub-Units 10 Bank, 8 Channel, 2 Pole Active 2-Pole Relay Bank Chan Bank Chan Bank Chan Bank Chan VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 4.11...
  • Page 32 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.9 - Multiplexer Module 40-615A-006: Sub-Units 5 Bank, 16 Channel, 2 Pole Active 2-Pole Relay Bank Chan Bank Chan Bank Chan Bank Chan 13.1 13.2 10.1 14.1 10.2 14.2 11.1 15.1 11.2 15.2 12.1...
  • Page 33 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.10 - Multiplexer Module 40-615A-008: Sub-Units 4 Bank, 20 Channel, 2 Pole Active 2-Pole Relay Bank Chan Bank Chan Bank Chan Bank Chan 10.1 10.1 10.1 10.1 10.2 10.2 10.2 10.2 11.1 11.1 11.1...
  • Page 34 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.11 - Multiplexer Module 40-615A-010: Sub-Units 2 Bank, 40 Channel, 2 Pole Active 2-Pole Relay Bank Chan Bank Chan Bank Chan Bank Chan 21.1 21.1 21.2 21.2 22.1 22.1 22.2 22.2 23.1 23.1 23.2...
  • Page 35 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.12 - Multiplexer Module 40-615A-012: Sub-Units 1 Bank, 80 Channel, 2 Pole Active 2-Pole Relay Bank Chan Bank Chan Bank Chan Bank Chan 21.1 41.1 61.1 21.2 41.2 61.2 22.1 42.1 62.1 22.2 42.2...

  • Page 36: Module Architecture - Low Density 1-Pole

    MODULE ARCHITECTURE: LOW DENSITY 1 POLE MUX The 40-615A Low Density Single Pole Multiplexer is an array of 80 DPST relays. In the default state all relays are open circuit. Energising a particular relay creates a signal path between the relays common terminal and the corresponding channel terminal.
  • Page 37 (40-615A-013, 40-615A-014) 20 Bank, 4 Channel, 1 Pole 10 Bank, 8 Channel, 1 Pole Active 1-Pole Relay Active 1-Pole Relay Bank Chan Relay Bank Chan Relay Bank Chan Relay Bank Chan Relay VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 4.17...
  • Page 38 (40-615A-015, 40-615A-016) 5 Bank, 16 Channel, 1 Pole 4 Bank, 20 Channel, 1 Pole Active 1-Pole Relay Active 1-Pole Relay Bank Chan Relay Bank Chan Relay Bank Chan Relay Bank Chan Relay VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 4.18...
  • Page 39 (40-615A-017, 40-615A-018) 2 Bank, 40 Channel, 1 Pole 1 Bank, 80 Channel, 1 Pole Active 1-Pole Relay Active 1-Pole Relay Bank Chan Relay Bank Chan Relay Bank Chan Relay Bank Chan Relay VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 4.19...

  • Page 40: Programming The Module

    PROGRAMMING THE MODULE Here are some simple examples of using the drivers with the 40-615A-001 Multiplexer module. Other modules in the range operate in the same way but have different numbers of sub-units and different bit allocations within each sub-unit as outlined in the previous tables.
  • Page 41 Figure 5.1 - Module Pin Outs: Figure 5.2 - Module Pin Outs: 40-615A-001 40-615A-002 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.1...
  • Page 42 Figure 5.3 - Module Pin Outs: Figure 5.4 - Module Pin Outs: 40-615A-003 40-615A-004 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.2...
  • Page 43 Figure 5.5 - Module Pin Outs: Figure 5.6 - Module Pin Outs: 40-615A-005 40-615A-006 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.3...
  • Page 44 Figure 5.7 - Module Pin Outs: Figure 5.8 - Module Pin Outs: 40-615A-007 40-615A-008 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.4...
  • Page 45 Figure 5.9 - Module Pin Outs: Figure 5.10 - Module Pin Outs: 40-615A-009 40-615A-010 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.5...
  • Page 46 Figure 5.11 - Module Pin Outs: Figure 5.12 - Module Pin Outs: 40-615A-011 40-615A-012 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.6...
  • Page 47 Figure 5.13 - Module Pin Outs: Figure 5.14 - Module Pin Outs: 40-615A-013 40-615A-014 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.7...
  • Page 48 Figure 5.15 - Module Pin Outs: Figure 5.16 - Module Pin Outs: 40-615A-015 40-615A-016 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.8...
  • Page 49 Figure 5.17 - Module Pin Outs: Figure 5.18 - Module Pin Outs: 40-615A-017 40-615A-018 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Module) Viewed From Front of Module) VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.9...
  • Page 50 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 5.10...

  • Page 51: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 52 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-615A Page 6.2...

  • Page 53: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 54 RL104 RL110 RL116 RL87 RL93 RL99 RL105 RL111 RL117 RL88 RL94 RL100 RL106 RL112 RL118 Figure 7.1 - 40-615A Multiplexer Module: Component Layout (High Density 1-Pole Versions) RL13 RL19 RL25 RL31 RL37 RL43 RL14 RL20 RL26 RL32 RL38 RL44 RL15...
