FireProtect 2 (Heat) Jeweller User manual

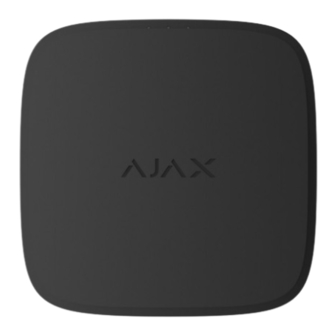

FireProtect 2 (Heat) Jeweller is a wireless re detector with a built-in siren.
Designed for indoor installation. Detects temperature rise. The detector also can
work without a hub.
It is available in two modi cations: with sealed batteries (has SB in the name)
that run 10 years, and with replaceable ones (has RB in the name) that run up to
7 years.
A list of compatible hubs and range extenders is
detector is compatible only with hubs on
The detector operates as part of the Ajax system, communicating with the hub
via the
Jeweller
secure radio protocol. The hub communication range is up to
1,700 meters without obstacles.
Buy FireProtect 2 (Heat)
Updated August 4, 2023
available here
OS Malevich 2.15
. FireProtect 2 (Heat)
and higher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireProtect 2 (Heat) Jeweller and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX FireProtect 2 (Heat) Jeweller

Summary of Contents for AJAX FireProtect 2 (Heat) Jeweller

  • Page 1 FireProtect 2 (Heat) Jeweller User manual Updated August 4, 2023 FireProtect 2 (Heat) Jeweller is a wireless re detector with a built-in siren. Designed for indoor installation. Detects temperature rise. The detector also can work without a hub. It is available in two modi cations: with sealed batteries (has SB in the name) that run 10 years, and with replaceable ones (has RB in the name) that run up to 7 years.

  • Page 2: Functional Elements

    Versions of the detector with other sensor combinations are also available. All Ajax re detectors are available here Functional elements 1. Detector front panel with Test/Mute button . To activate the button, press the center of the panel. 2. SmartBracket mounting panel. To remove the panel, turn it counterclockwise.

  • Page 3: Operating Principle

    7. Siren. 8. Green LED indicator. 9. Yellow LED indicator. 10. Red LED indicator. 11. First thermistor. Detects dangerous temperatures. 12. Second thermistor. Detects dangerous temperatures. Operating principle 00:00 00:12 FireProtect 2 (Heat) is a wireless re detector designed for indoor installation. Available in two versions: With sealed batteries.
  • Page 4 . The tamper controls the removal of the detector from the SmartBracket mounting panel: the detector reacts with LED indication and sends noti cations to users in Ajax apps and the security company monitoring station. Ajax automation devices respond to FireProtect 2 alarms and perform user-...
  • Page 5 *The Interconnected Fire Detectors Alarm function is not certi ed according to EN 14604 and EN 50291 Sending events to the monitoring station The Ajax system can transmit events and alarms to the PRO Desktop monitoring app as well as the Central Monitoring Station (CMS) via SurGard (Contact ID), SIA DC-09 (ADM-CID), ADEMCO 685, and other protocols.

  • Page 6: Adding To The System

    4. Make sure that the hub is on and has Internet access via Ethernet, Wi-Fi, and/or mobile network. You can do this in the Ajax app or by looking at the LED indicator of the hub: it should light up white or green.
  • Page 7 Once connected, FireProtect 2 will appear in the hub device list in the Ajax app. Device status update depends on the ping interval set in the Jeweller or Jeweller/Fibra settings. The default value is 36 seconds.
  • Page 8 FireProtect 2 detectors can be used autonomously without connecting to an Ajax hub. In this case, the detector noti es of re with only a built-in siren and LED indication . Users don’t receive noti cations on any Ajax apps , including...
  • Page 9 Also, you can mute Alarm by: the alarm by pressing Test/Mute rapid temperature The siren sounds in button rise; or in the Ajax The red LED ashes time with the LED app. continuously. indication. temperature threshold The LED and sound exceeding.
  • Page 10 All malfunctions are displayed in the states detector Ajax apps. Fields with malfunctions are The siren beeps in The yellow LED highlighted in red. time with the LED ashes 2 times in a Malfunction detected.

  • Page 11: Detector Testing

    The test allows you to check the status of the detector’s sensors. You can run it in two ways: by pressing the Test/Mute button on the detector or in Ajax apps. If the detector is in an alarm state, the self-test is not available.
  • Page 12 LED indication. When the test is over, users receive a noti cation about the detector state in Ajax apps. The detector also noti es about the test result with sound and LED indications.
  • Page 13 The default value is 36 seconds. You can change the detector ping interval in the Jeweller (or Jeweller/Fibra) menu in the hub settings. Icons The icons show some of the detector states. You can view them in Ajax apps in the Devices tab.
  • Page 14 You can see FireProtect 2 (Heat) states in Ajax apps. To access them: 1. Open the Ajax app. 2. Select a hub if you have several of them or if you are using the Ajax PRO app. 3. Go to the Devices tab.
  • Page 15 Parameter Meaning Air temperature in the premise where FireProtect 2 is installed. Measured in Celsius or Fahrenheit degrees depending on the app settings. Temperature In the normal state, the temperature value is displayed in black. When the temperature rises, the eld is highlighted with red.
  • Page 16 power is enough to ensure 4 minutes of the sound and LED indication operation. How the battery charge is displayed Battery life calculator You can replace batteries in a detector with replaceable batteries only (has RB in its name). A detector with sealed batteries (with SB in the name) should be replaced with a new one after the batteries are discharged.
  • Page 17 QR code and on the packaging box. The number of FireProtect 2 loop (zone). Events Device No. are sent to the CMS from this number. Settings To change FireProtect 2 (Heat) settings in the Ajax app: 1. Open the Ajax app.
  • Page 18 2. Select the hub if you have several of them or if you are using the Ajax PRO 3. Go to the Devices tab. 4. Select the device from the list. 5. Go to Settings by clicking on the gear icon 6.
  • Page 19 The recommended value is two or three divisions. Learn more Runs a detector self-test. Device Self-test Learn more Opens FireProtect 2 User Manual in the Ajax User Guide app. Allows to deactivate the device without removing it from the system. Three options are available: No —...

  • Page 20: Selection Of Installation Place

    FireProtect 2 detectors. This feature doesn’t affect alarm noti cation delivery time. To disable the Battery Life Optimization feature: 1. Open the Ajax app. 2. Select the hub with FireProtect 2 detectors connected. 3. Go to: Hub → Settings →...
  • Page 21 The detector is suitable for installation in premises where the generation of gases/vapours/smoke is part of the operating process. For example, in a garage, kitchen, boiler house or boiler room. The detector is placed in the center of the ceiling at a distance of 30 cm from light xtures, chandeliers, or any other decorative objects that may interfere with alarm detection.

  • Page 22: Signal Strength

    Presence of barriers for radio signal passage between devices: walls, inter oor ceilings, large objects located in the room. Consider the placement recommendations when designing the project of Ajax system for the object. The security system must be designed and installed by specialists.

  • Page 23: Installation

    2. In places with low or unstable Jeweller signal strength. This can result in the connection loss. 3. Inside premises with temperature and humidity outside the permissible limits. This could damage the detector. 4. In places with fast air circulation. For example, near fans, vents, open windows, or doors.
  • Page 24 2. Fix the SmartBracket panel to a surface using double-sided adhesive tape or another temporary fastener. The mounting panel has the UP sign, which indicates the correct position. Use double-sided adhesive tape for temporary xation only. The device xed by the adhesive tape can peel off the surface at any time, which can lead to damage if the device is dropped.
  • Page 25 1. Don’t open the doors if you feel heat or smoke behind them. Check other entries and use an alternative way to escape. Close all doors behind you as you leave. If heavy smoke enters a room, stay close to the oor and crawl out. If possible, breathe through a wet cloth or hold your breath.

  • Page 26: Maintenance

    If FireProtect 2 malfunction is detected (for example, there is no connection with the hub), the malfunction counter is displayed in the device eld in the Ajax apps. All malfunctions are displayed in the detector States . Fields with malfunctions will be highlighted in red.

  • Page 27: Technical Speci Cations

    Ensure the batteries are installed with the correct polarity. The polarity is marked inside the enclosure. Please run a self-test with Ajax apps or by pressing the Test/Mute button after the batteries are replaced to check the correct operation of the detector.

  • Page 28: Warranty

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
