VCM36-W
VCM36-W
Introduction
Introduction

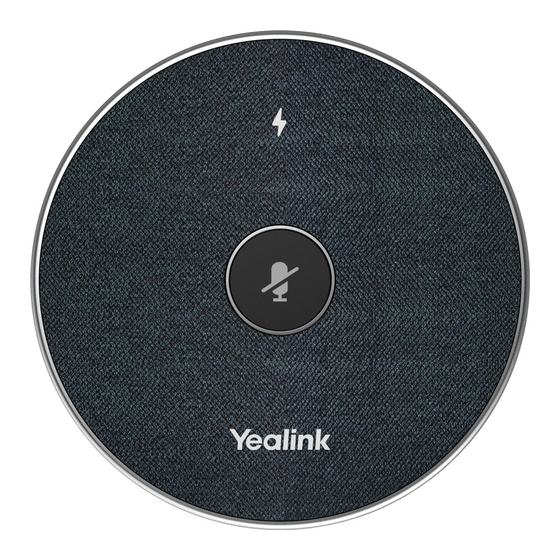

The Yealink VCM36-W is an innovative wireless video conferencing microphone designed to accommodate various
meeting room needs. With a built-in 3-microphone array, the VCM36-W has a 20ft (6m) and 360° voice pickup range.
It features Yealink's high-quality echo cancellation technology and noise cancellation, effectively filtering out up
to 90dB of ambient noise to provide a high-quality audio experience during full-duplex calls.
The VCM36-W's high-quality pickup technology provides a full range of audio coverage for all conference room
sizes.
The VCM36-W is easy to use with a single pairing, with up to 12 hours of battery life in conference mode and 7 days
of standby time. The VCM36-W WIFI microphone is equipped with a charging dock that allows you to charge the
microphone wirelessly, and you can change its deployment position at any time while using it to suit your needs.
Key features and benefits
Key features and benefits
HD Hi-Fi Wifi Microphone
Yealink Full Duplex Technology
Dual-band 2.4GHz/5GHz wireless networks
6m-360° voice pickup range
12 hours battery life of conference
WPA2，AES128 Encryption Technology
Specifications
Specifications
Specifications
Specifications
Description
Description
1
VCM36-W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCM36-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yealink VCM36-W

Summary of Contents for Yealink VCM36-W

  • Page 1 The VCM36-W is easy to use with a single pairing, with up to 12 hours of battery life in conference mode and 7 days of standby time. The VCM36-W WIFI microphone is equipped with a charging dock that allows you to charge the microphone wirelessly, and you can change its deployment position at any time while using it to suit your needs.

  • Page 2: Device Compatibility

    • Carton Meas: 635 x *237 x 200 mm Device Compatibility Device Compatibility The maximum number of VCM36-W microphones supported by the conferencing room endpoint is as follows:  NOTE NOTE Since the microphones do not support mixed-use, the kits with this microphone or MSpeech do not support other microphones by default.

  • Page 3: Led Indicator

    DeskVision A24 × MeetingEye 500 How to Use How to Use VCM36-W has different features when used with different video conferencing endpoints. For more information, please refer to the corresponding documents. Teams Verison: Teams Verison Connect the VCM36-W to MeetingBar A20/A30:...

  • Page 4: Hardware Introduction

    Solid green for one Power on second and then off If you tap the mute button and the Charge indicator LED on the VCM36-W is still off, it means the VCM36-W is powered off Mute LED Indicator: LED Indicator Status...

  • Page 5: Mute/Unmute Microphone

    Mute/Unmute Microphone Mute/Unmute Microphone 1. Press the Mute Mute button on the VCM36-W to mute the microphone. If the muting LED indicator is solid red, the microphone is mute. 2. Press the Mute Mute button again to unmute the microphone.
