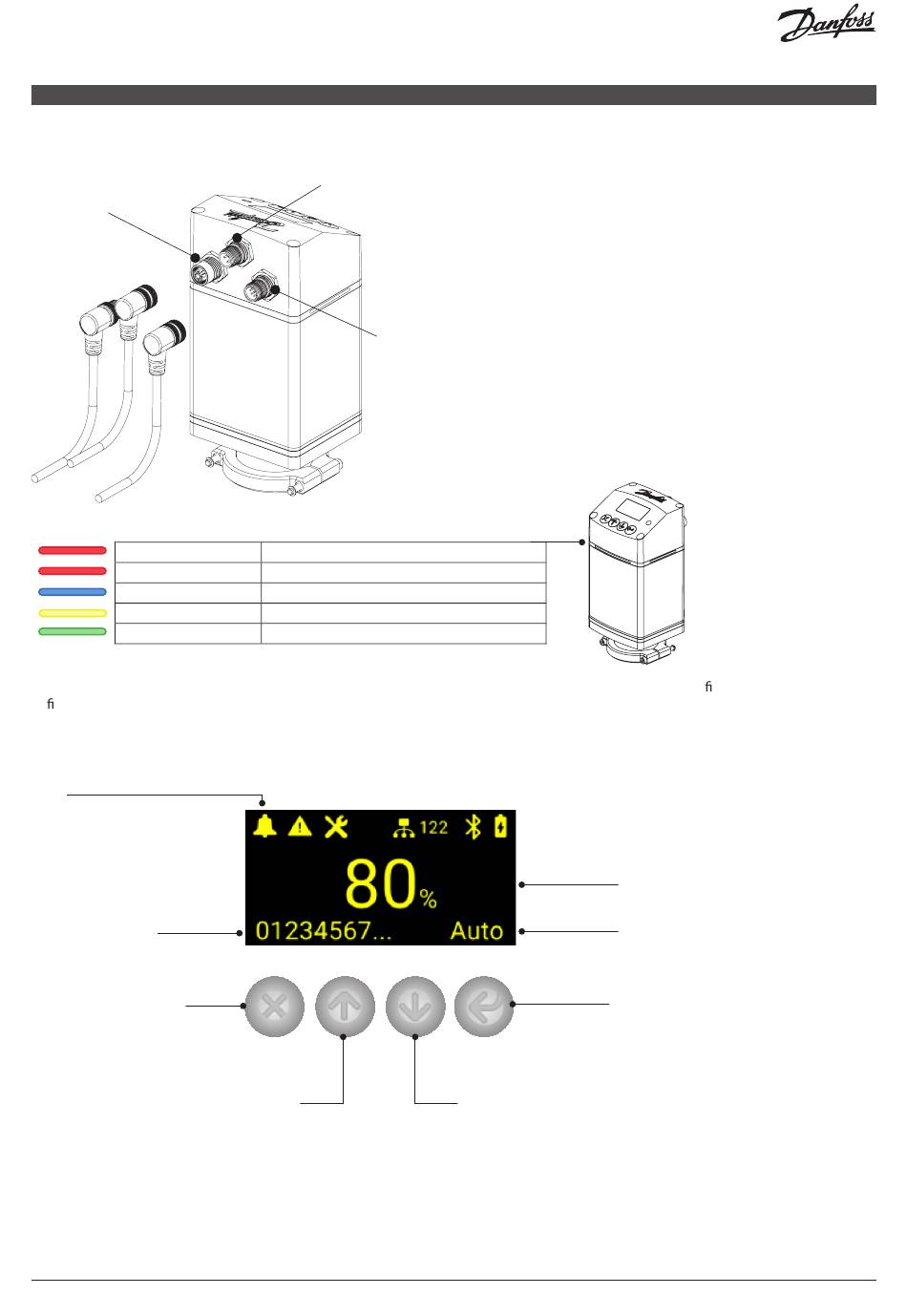

Power on & start operation
ICAD has a light guide viewable from three sides, which indicates the status. Immediately after power on the light guide and display
lights up.
Data communication
Light guide
Steady red
Flashing red
Flashing blue
Flashing yellow
Flashing green
The main screen layout and navigation is as described below. ICAD will start up in alarm mode as the ICM con guration needs to be
de ned to start operation. Follow the steps on next page to set this up correctly.
STATUS BAR
STATUS BAR
Alarm | Warning | Service overdue | Modbus address | Bluetooth ON | UPS enabled
ICAD name
EXIT
Back one level
On main screen show alarms
4 | AN461947453648en-000101
Power supply
Control signals
Critical alarm - stopped operating
Severe alarm - danger of stopping operating
ICAD is connected via Bluetooth
Warning
OK
ARROW UP
Navigate up
Show I/O status
ENGLISH
Open menu / Down one level
Set parameter on lowest level
ARROW DOWN
Navigate down
Show I/O status
Actual opening degree
Status
ENTER
