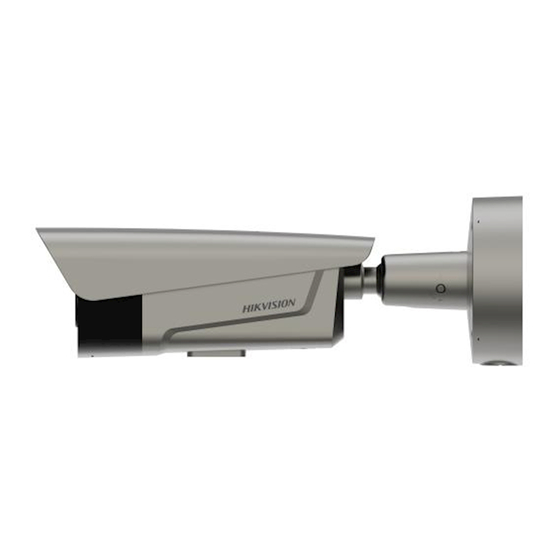

- Page 1 Intelligent Entrance ANPR Camera Quick Start Guide...
- Page 2 Intelligent Entrance ANPR Camera • Quick Start Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
-
Page 3: Table Of Contents
Intelligent Entrance ANPR Camera • Quick Start Guide TABLE OF CONTENTS Chapter 1 Panel Interface ........................ I Chapter 2 Device Installation......................2 Install TF Card ..............................2 Install Device ..............................2 Power on ................................4 Chapter 3 Device Configuration ...................... 5... -
Page 4: Chapter 1 Panel Interface
Intelligent Entrance ANPR Camera • Quick Start Guide Chapter 1 Panel Interface The panel interfaces of Intelligent Entrance ANPR Camera are shown as below. Panel Interface Interface Description Name Description Wiegand Wiegand interface RS-485 RS-485 communication interface ALM-IN Alarm input Alarm output ALM OUT AUDIO IN... -
Page 5: Chapter 2 Device Installation
Intelligent Entrance ANPR Camera • Quick Start Guide Chapter 2 Device Installation Please check if there is any damage of the package first. According to the packing list, make sure no item is lost. After checking all the items included, you can continue to install the device. Install TF Card The installation method of TF card is shown below. - Page 6 Intelligent Entrance ANPR Camera • Quick Start Guide Cut off the power supply of the device. Drill holes on the wall according to the installation template, and fix it on the wall with expansion screws. Install Rear Cover Make sure the template is installed as the silk-screen UP indicates. Thread internal cables through the wire holes, and tighten the screws to fix the junction box.
-
Page 7: Power On
Intelligent Entrance ANPR Camera • Quick Start Guide Adjust Angle Power on The cables should be well laid out and connected for normal device usage. Power on the device after the device is installed correctly. If the device fails to be powered on normally, please check whether the cables are connected correctly. If the cables are connected correctly, go further to check the cable arrangement. -
Page 8: Chapter 3 Device Configuration
Intelligent Entrance ANPR Camera • Quick Start Guide Chapter 3 Device Configuration Scan the QR code below to get the user manual for detailed configuration. User Manual QR Code... - Page 9 UD35550B...
