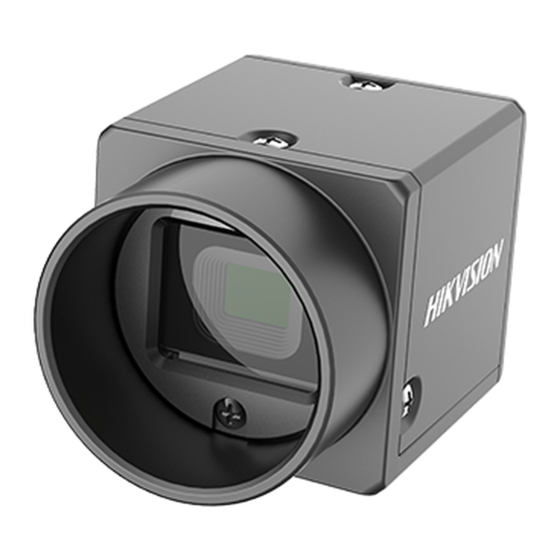

HIKVISION UD01715B User Manual

Area scan machine vision usb 3.0 camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Area Scan Machine Vision USB 3.0 Camera User Manual
Area Scan Machine Vision
USB 3.0 Camera

User Manual

UD01715B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UD01715B and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION UD01715B

Summary of Contents for HIKVISION UD01715B

  • Page 1: User Manual

    Area Scan Machine Vision USB 3.0 Camera User Manual Area Scan Machine Vision USB 3.0 Camera User Manual UD01715B...
  • Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;...
  • Page 4 Area Scan Machine Vision USB 3.0 Camera User Manual 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 5 Area Scan Machine Vision USB 3.0 Camera User Manual Cautions:  Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.

  • Page 6: Table Of Contents

    Area Scan Machine Vision USB 3.0 Camera User Manual Table of Contents Chapter 1 Overview ......................... 9 Introduction ........................9 Main Features ........................9 Specifications ........................10 1.3.1 MV-CA013-20UM/UC Specification ................10 1.3.2 MV-CA013-20UM/UC Response Curve ............... 11 1.3.3 MV-CA050-20UM/UC Specification ................11 1.3.4 MV-CA050-20UM/UC Response Curve ...............
  • Page 7 Area Scan Machine Vision USB 3.0 Camera User Manual 3.3.1 Global Shutter ........................ 28 3.3.2 Rolling Shutter ....................... 29 Image Acquisition and Transmission ................30 3.4.1 Internal Trigger Mode ....................30 3.4.2 External Trigger Signal and Working Mode ..............31 Strobe Output ........................
  • Page 8 Area Scan Machine Vision USB 3.0 Camera User Manual Indicator Status Description ................... 59 FAQ ........................... 60...

  • Page 9: Chapter 1 Overview

    Area Scan Machine Vision USB 3.0 Camera User Manual Chapter 1 Overview 1.1 Introduction The Machine Vision Camera is an image capturing device and capable of real-time transmission of uncompressed image through a USB 3.0 interface. Remote image capturing and camera control, for example, the operating mode and the image parameters adjustment, are supported by client software.

  • Page 10: Specifications

    Area Scan Machine Vision USB 3.0 Camera User Manual 1.3 Specifications 1.3.1 MV-CA013-20UM/UC Specification Table 1-1 MV-CA013-20UM/UC Specification MV-CA013-20UM MV-CA013-20UC Model Parameter 1.3 MP 1/2" CMOS Machine Vision USB 3.0 Camera Camera Sensor Type 1/2" global shutter CMOS Resolution 1280 × 1024 4.8 μm ×...

  • Page 11: Mv-Ca013-20Um/Uc Response Curve

    Area Scan Machine Vision USB 3.0 Camera User Manual Dimension 29 mm × 29 mm × 30 mm Weight Approx.56 g Lens Mount C-Mount MVS or the third-party client software which supports USB 3.0 Control Client Vision protocol Windows XP/7/8 32/64bits Compatibility USB 3.0 Vision V1.0 Certifications...
  • Page 12 Area Scan Machine Vision USB 3.0 Camera User Manual 4.8 μm × 4.8 μm Pixel Size Frame Rate 60 fps @ 2592 × 2048 30 fps @ 2592 × 2048 Dynamic Range > 60 dB > 40 dB Gain 0 to 15 dB 8 μs to 10 sec Exposure Time Global shutter, Auto-exposure, Manual exposure, and One-key...

  • Page 13: Mv-Ca050-20Um/Uc Response Curve

    Area Scan Machine Vision USB 3.0 Camera User Manual 1.3.4 MV-CA050-20UM/UC Response Curve Figure 1-2 MV-CA050-20UM/UC Quantum Efficiency The response curve data is provided by the chip manufacture. 1.4 Camera Physical Interfaces 1.4.1 Camera Dimension The dimension of the MV-CA013-20UM/UC and MV-CA050-20UM/UC is shown below. The camera should be installed with M3 ×...

  • Page 14: Rear Panel Introduction

    Area Scan Machine Vision USB 3.0 Camera User Manual 23.7 3-M3 3 Unit: mm 4-M2 3 42.51 2-M2 36.3 Figure 1-3 Dimension of MV-CA013-20UM/UC and MV-CA050-20UM/UC The camera adopts the C-Mount lens interface. The flange back length of lens is 17.5 mm ± 0.15 mm.

  • Page 15: Power And I/O Interface Introduction

    Area Scan Machine Vision USB 3.0 Camera User Manual Table 1-3 Description of the Rear Panel Description USB 3.0 interface M2 screw holes for USB 3.0 cable securing 6-pin power and I/O interface Status indicator LED 1.4.3 Power and I/O Interface Introduction The description of the 6-pin power and I/O connector is shown in the table below.
  • Page 16 Area Scan Machine Vision USB 3.0 Camera User Manual Table 1-5 Accessory List Accessory Name Number Description Camera The machine vision camera. Power I/O cable The 6-pin cable (included) or extension cable (not included). Power adapter 12 V DC power adapter (Min. 1A) USB 3.0 Cable Micro USB 3.0 (model B ) cable (need to be ordered separately)

  • Page 17: Chapter 2 Camera Installation And Configuration

    1. Enter the Device Manager Interface of your computer, and you are able to find Hikvision USB 3.0 Machine Vision Camera on the interface. 2. Right click Hikvision USB 3.0 Machine Vision Camera, to check the device property. And the following figure shows that the dive is installed successfully.

  • Page 18: Camera Configuration

    Area Scan Machine Vision USB 3.0 Camera User Manual Figure 2-1 Drive Status Checking 2.3 Camera Configuration You can configure the camera via the control client. There are two methods available: setting via the attribute tree or via the menu bar. 2.3.1 Setting via Attribute Tree The software can read the XML file of camera attributes and display it in tree format.
  • Page 19 Area Scan Machine Vision USB 3.0 Camera User Manual Figure 2-2 Main User Interface of the Client Software Table 2-1 Description of the Main User Interface No. Area Name Description Menu Bar Function modules includes File, View, Camera, Settings, Tools, and Help Control Toolbar Contorls the image of live view including starting/stopping live view, zooming in/out, recording,...
  • Page 20 Area Scan Machine Vision USB 3.0 Camera User Manual For details, refer to the User Manual of MVS Control Client. 2. Double click the camera on the device list in Devices and Attributes Tree area. 3. Click the Attributes tab to enter the camera attribute page. You can switch the user level as Beginner, Expert or Guru which displays different camera attributes.

  • Page 21: Setting Via Menu Bar

    Area Scan Machine Vision USB 3.0 Camera User Manual device temperature, etc. You can modify the alias and reset the device.  Image Format Control: In the Image Format Control attribute, you can view the live view image width and height, pixel size, etc. You can modify the image reverse status, test pattern and the embedded information, etc.
  • Page 22 Area Scan Machine Vision USB 3.0 Camera User Manual Figure 2-4 Setting via Menu Bar You can set the image display, ROI, bandwidth, trigger mode, high dynamic range, lookup table, embedded information and camera information. Functions and Attributes of machine vision cameras may be different among different camera models.

  • Page 23: Chapter 3 Functions

    Area Scan Machine Vision USB 3.0 Camera User Manual Chapter 3 Functions 3.1 Device Control 3.1.1 Name Modification Run the client software and click Device Control. You will see the device type, the version information, the device serial number, and so on. Input the device name in Device User ID as shown in Figure 3-1.

  • Page 24: Image Format And Frame Rate

    Area Scan Machine Vision USB 3.0 Camera User Manual 3.2 Image Format and Frame Rate Support different image formats and customized ROI settings. The specified ROI will increase the image frame rate in some models. The following figures are for reference only. The actual format depends on the camera’s supported formats.
  • Page 25 Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-3 Bayer GR Pixel Pattern Figure 3-4 Bayer GB Pixel Pattern Figure 3-5 Bayer BG Pixel Pattern Figure 3-6 Bayer RG Pixel Pattern The camera uses 12 bit ADC (some only support 10 bit ADC)， and supports 8 bit data output according to your data processing capacity.

  • Page 26: Frame Rate

    Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-7 and finish setting. Figure 3-7 Frame Rate Setting 3.2.2 Frame Rate The transmission bandwidth, pixel format and output ROI resolution decides the maximum camera frame rate. Please refer to the frame rate formula when setting ROI. Click Acquisition Control in the attribute list and select Acquisition Frame Rate.

  • Page 27: Roi Setting

    Area Scan Machine Vision USB 3.0 Camera User Manual 3.2.3 ROI Setting The following three factors decide the maximum camera frame rate:  Frame Readout time: the shorter the image height, the less the readout time and the higher the frame rate. ...

  • Page 28: Global Shutter And Rolling Shutter

    Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-9 ROI Setting 3.3 Global Shutter and Rolling Shutter 3.3.1 Global Shutter Support global shutter camera. Exposure starts and ends in each line simultaneously. Data readout is after the exposure. The time for the sensor collecting exposure and for the data readout are the same, but as shown in Figure 3-10, different in the actual readout time.

  • Page 29: Rolling Shutter

    Area Scan Machine Vision USB 3.0 Camera User Manual 3.3.2 Rolling Shutter Support rolling shutter camera. The exposure starts in the first row, and the data will read out simultaneously. After the whole action, the rest of rows start to expose and read out one by one.

  • Page 30: Image Acquisition And Transmission

    Area Scan Machine Vision USB 3.0 Camera User Manual Trigger_in1 Trigger_in2 Trigger delay Trigger delay Frame time Frame time Intergration Intergration Sensor exposure Frame1 Frame2 Readout Readout Figure 3-13 External Trigger Mode 3.4 Image Acquisition and Transmission Purpose: Image acquisition mode is divided into internal trigger mode and external trigger mode.

  • Page 31: External Trigger Signal And Working Mode

    Area Scan Machine Vision USB 3.0 Camera User Manual continuously based on the configured frame rate. SingleFrame refers to outputting only one image, as shown in Figure 3-14. Figure 3-14 Internal Trigger Mode 3.4.2 External Trigger Signal and Working Mode Purpose: The signal for the camera to acquire external trigger signal includes the software trigger signal and the signal from external level.
  • Page 32 Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-15 Software Trigger Mode Setting  Hardware external trigger mode Select Trigger Source and Choose Hardware to switch to the hardware external trigger status. Available parameter setting of input signal from hardware external trigger: (1) Trigger edge selection Selecting Rising Edge/Falling Edge under the external signal is available.

  • Page 33: Strobe Output

    Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-17 Delay Time Setting (3) Triggering Anti-jitter The noise may exist in external trigger’s input signal and it may cause spurious triggering status if it goes into the camera. Thus the debounce is necessary. The debounce parameter can be set through Line Debouncer Time in the client software.
  • Page 34 Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-19 Strobe Output Mode Available Strobe parameter setting: (1) Polarity setting Tick Line Inverter to set polarity external trigger’s output signal, as shown in Figure 3-20. Figure 3-20 Modifying Strobe Polarity...
  • Page 35 Area Scan Machine Vision USB 3.0 Camera User Manual (2) Strobe valid time As shown in Figure 3-21, Strobe is set to high level. When exposure starts, Strobe will output immediately. Strobe Line Duration value decides the Strobe duration: when the Strobe Line Duration value is 0, the Strobe duration is equal to the exposure time;...

  • Page 36: Acquisition Mode Under External Trigger

    Area Scan Machine Vision USB 3.0 Camera User Manual through Strobe Line Pre Delay in the client as shown in Figure 3-23. Trigger_in3 Trigger_in2 Trigger_in1 Trigger Trigger Trigger delay delay delay Duration Strobe Intergration1 Intergration2 Intergration3 Sensor exposure Strobe pre delay Figure 3-23 Strobe Pre-trigger Sequence Map 3.6 Acquisition Mode under External Trigger The acquisition mode under external trigger includes single frame mode, burst mode...

  • Page 37: Counter Control

    Area Scan Machine Vision USB 3.0 Camera User Manual 3-25. If Burst Frame Count = 3, one trigger signal will output three frames images and at the same time output three strobe signals. Trigger_in1 Trigger delay Duration Strobe Intergration1 Intergration2 Intergration3 Sensor exposure...
  • Page 38 Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-27 Trigger Source Configuration As shown in Figure 3-28, click Counter And Timer Control and select external trigger source which needs frequency division. Figure 3-28 Counter Frequency Division Configuration By default, Line 0 is signal input pin. Line 2 is configurable input and output pin. Configure Line 2 to input pin in Digital IO Control, as shown in Figure 3-29, in order to do frequency division for Line 2.

  • Page 39: Imaging Parameter Setting

    Area Scan Machine Vision USB 3.0 Camera User Manual is from 1 to 1023. Please see the red 2 in Figure 3-30. Figure 3-30 Counter Parameter Setting By default, Counter Reset Source is OFF as shown in the red 1 in Figure 3-30. Click Counter And Timer Control and select Counter Reset Source.

  • Page 40: Gain Control

    Area Scan Machine Vision USB 3.0 Camera User Manual setting trigger mode, the single mode and continuous mode are invalid. When setting single mode or continuous mode, the exposure time will be limited by Auto Exposure Time Lower Limit and Auto Exposure Time Upper Limit. The time range should only be set between Auto Exposure Time Lower Limit and Auto Exposure Time Upper Limit.

  • Page 41: White Balance

    Area Scan Machine Vision USB 3.0 Camera User Manual Click Analog Control in the attribute list. Click Gain Auto. Select Gain Mode. Input available parameter in the numeric field and finish setting, as shown in Figure 3-33. Figure 3-33 Gain Control The noise increases when Gain increases.

  • Page 42: Region Setting Of Auto Functions

    Area Scan Machine Vision USB 3.0 Camera User Manual Ratio Selector. Select available white balance status parameter and finish setting, as shown in Figure 3-34. Figure 3-34 White Balance Setting 3.8.4 Region Setting of Auto Functions The camera can adjust exposure time and white balance automatically to achieve your expectations.

  • Page 43: Look Up Table (Lut)

    Area Scan Machine Vision USB 3.0 Camera User Manual The available exposure region and the white balance region are the overlapped part of the setting region and the image region. If there is no overlap, the available region refers to the whole image. 3.8.5 Look Up Table (LUT) Purpose: LUT is the grey level mapping table.

  • Page 44: Brightness, Hue And Saturation

    Area Scan Machine Vision USB 3.0 Camera User Manual Gamma=0.5 Gamma=1 Gamma=2 Gamma=4 Figure 3-37 Gamma Curve Click Analog Control in the attribute list. Select Gamma and Gamma Selector and set the parameter as shown in Figure 3-38. Figure 3-38 Gamma Setting Different cameras versions have different default function parameters.

  • Page 45: Image Reverse

    Area Scan Machine Vision USB 3.0 Camera User Manual  Hue You can adjust the hue value in HSV. The default value is 128.  Saturation You can adjust the saturation value in HSV. The default value is 128. The larger the value, the higher is the saturation and the stronger is the color.

  • Page 46: Hdr Cycling Mode

    Area Scan Machine Vision USB 3.0 Camera User Manual Output Reverse (horizontal) Figure 3-40 The Comparison of ROI Output Before And After Mirroring 3.8.9 HDR Cycling Mode Purpose: The camera supports HDR cycling mode: the camera can capture images in cycling mode depending on four groups of parameters.

  • Page 47: Test Pattern

    Area Scan Machine Vision USB 3.0 Camera User Manual Parameter 0 Exposure Time 0 Gain 0 Parameter 3 Parameter 1 Exposure 3 Exposure Time 1 Gain 3 Gain 1 Parameter 2 Exposure 2 Gain 2 Figure 3-42 HDR Cycling Map 3.8.10 Test Pattern Click Image Format Control in the attribute list.
  • Page 48 Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-44 Mono Bar Test Pattern Figure 3-45 Vertical Color Bar Test Pattern Figure 3-46 Horizontal Color Bar Test Pattern...

  • Page 49: I/O Electric Feature

    Area Scan Machine Vision USB 3.0 Camera User Manual Figure 3-47 Checkboard Test Pattern 3.9 I/O Electric Feature 3.9.1 Line0 Opto-isolated Input Circuit In controlling camera I/O, Line0 input circuit can be shown in Figure 3-48. Figure 3-48 Input Circuit Logic 0 input level: 0~1VDC (OPTO_IN pin) Logic 1 input level: 1.5~24VDC (OPTO_IN pin) Maximum input current: 25 mA...

  • Page 50: Line1 Opto-Isolated Output Circuit

    Area Scan Machine Vision USB 3.0 Camera User Manual Please make sure the input voltage is not from 1V to 1.5V as the electric status among the two values is not stable. Logic 1 Input Level Logic 0 Input Level Internal Logic Figure 3-49 Input Logic Level Input rising delay (TDR): 2.6μs...
  • Page 51 Area Scan Machine Vision USB 3.0 Camera User Manual Internal Logic Logic 1 Output Level Logic 0 Output Level Figure 3-51 Output Logic Level Opto-isolated output electric feature can be shown in Table 3-5 (The external voltage is 3.3 V and the external resistance is 1 K.) Table 3-5 Output Electric Feature Parameter Symbol...

  • Page 52: Line2 Configurable Bi-Direction I/O Circuit

    Area Scan Machine Vision USB 3.0 Camera User Manual 3.9.3 Line2 Configurable Bi-direction I/O Circuit In controlling I/O, the configurable bi-direction non-isolated IO circuit of Line2 can be shown in Figure 3-52. Figure 3-52 Line2 Bi-direction I/O Circuit The camera of MV-CA030-10GM/GC has no such function. 1.
  • Page 53 Area Scan Machine Vision USB 3.0 Camera User Manual Please connect to GND pin first to protect GPIO pin and then input voltage to Line2 pin. 2. Configure Line2 to output pin The available maximum current is 25mA and the output impedance is 40Ω. When the environment temperature is 25 degree centigrade, the relationship among external voltage, impedance and the output low level can be shown in Table 3-7.

  • Page 54: User Parameter And Preference Setting

    Area Scan Machine Vision USB 3.0 Camera User Manual 3.10 User Parameter and Preference Setting 3.10.1 Parameters Saving and Loading The camera can save four groups of parameters, including one group of factory parameter and three groups of configurable parameters. You can save currently configured parameter and set corresponded default parameter when logging in at next time in User Set Control in the attribute list.

  • Page 55: Embedded Information

    Area Scan Machine Vision USB 3.0 Camera User Manual User Parameter 1 Currently Load Default Save Unser Parameter Configured Parameter Parameter Load User Parameter 3 Figure 3-56 The Relationship Among Four Groups of Parameters 3.10.2 Embedded Information The camera supports embedding information into the image data. The current supporting embedded information is: ...
  • Page 56 Area Scan Machine Vision USB 3.0 Camera User Manual Each embedded information of the available data will be put in the least 8 significant bits (No matter in MONO8 or RGB24). The Embedded information is as following: Timestamp: Take four bytes: transmission with four available data. Data format: The data format of the timestamp is shown in Figure 3-57.
  • Page 57 Area Scan Machine Vision USB 3.0 Camera User Manual White balance gain: Contains three components of gain. It consumes 8 bytes in total, including two bytes for R channel of Gain, two bytes for G channel of Gain and four bytes for B channel of Gain.

  • Page 58: Firmware Updating

    Area Scan Machine Vision USB 3.0 Camera User Manual 3.11 Firmware Updating Support firmware updating via USB 3.0. After selecting available device in the device list, open Tools > Firmware Updating Tool in the Menu. Select available firmware updating kit, as shown in Figure 3-59. Figure 3-59 Firmware Update...

  • Page 59: Chapter 4 Troubleshooting

    Area Scan Machine Vision USB 3.0 Camera User Manual Chapter 4 Troubleshooting 4.1 Indicator Status Definition Table 4-1 LED Indicator Status LED Status Definition Steady On The LED indicator keeps lights on all the time Unlit The LED indicator keeps unlit all the time Fast Flicker The LED indicator flickers every 200ms to 300ms Slow Flicker...
  • Page 60 Area Scan Machine Vision USB 3.0 Camera User Manual 4.3 FAQ Table 4-3 FAQ Problem Possible Reasons Solutions Description 1. The camera cannot be detected 1. Confirm that the power supply of 1. The camera does not by the client camera is well connected (via LED work properly.
  • Page 61 Area Scan Machine Vision USB 3.0 Camera User Manual...
