Page 1

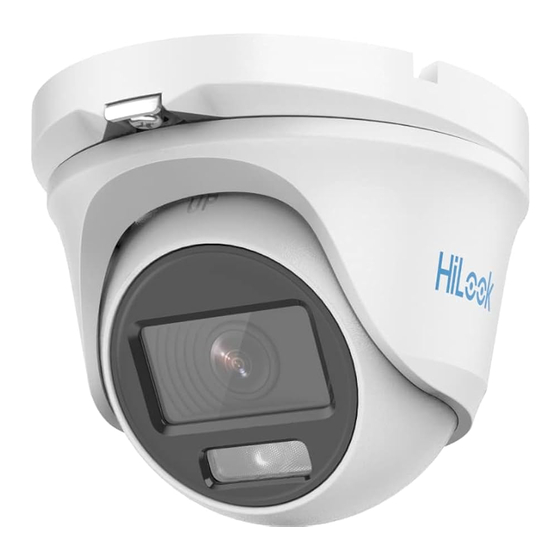

HiLook Series 3K ColorVu Audio Turret Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model...
Page 2
FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF...
UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 4
Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
Do not aim the camera at the sun or extra bright places. The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
1.2.2 Overview of Type II Camera Trim Ring Enclosure Microphone Main Body Switch Button Power Cord DC12V Audio & Video Cable Mounting Base Figure 1-2 Overview of Type II Camera Note: Press and hold the switch button for 5 seconds to switch the video output.
Page 7
Figure 2-2 Dissemble the Camera 4. Secure the mounting base to the ceiling with three PA4 × 25 screws. Figure 2-3 Attach the Mounting Base to the Ceiling 5. Pull out the clip plate and install the camera back to the mounting base.
Page 8
Figure 2-6 Drill Template 3. (Optional) Drill the cable hole, when the cables are routed through the ceiling. 4. Take apart the junction box. 5. Secure the junction box body on the ceiling with PA4 × 25 screws that come with the junction box. Figure 2-7 Secure the Junction Box Body 6.
Page 9
3. Loosen the screw and pull out the clip plate to dissemble the camera. Figure 2-10 Dissemble the Camera 4. Use three M4 screws to fix the mounting base onto the wall mount. Figure 2-11 Fix the Mounting Base onto the Wall Mount 5.
Page 10
Figure 2-14 Remove the Trim Ring 5. Secure the camera to the ceiling with three PA4 × 25 screws (supplied). Figure 2-15 Secure the Camera to the Ceiling 6. Connect the cables. 7. Loosen the screw and the clip plate. Figure 2-16 Loosen the Screw and Clip Plate 8.
Page 11
Figure 2-18 Install the Trim Ring Back 11. Turn the trim ring clockwise to secure the camera. Figure 2-19 Secure the Camera 2.2.2 Installation with Junction Box/Inclined Ceiling Mount Before you start: You need to purchase a junction box or inclined ...
Page 12
Figure 2-22 Fix the Camera onto Junction Box Cover 7. Secure the junction box body on the wall with four PA4 × 25 screws. Figure 2-23 Secure the Junction Box Body 8. Route the cables through the bottom cable hole or the side cable hole of the junction box and connect the cables.
Figure 2-26 Remove the Trim Ring 4. Install the camera to the wall mount with three PA4 × 25 screws (supplied). Figure 2-27 Install the Camera 5. Refer to steps 6 to 11 of 2.2.1 Ceiling Mounting Without Junction Box to finish installation. 3 Menu Description Please follow the steps below to call the menu.
VIDEO FORMAT EXPOSURE MODE ANTI- BANDING EXPOSURE BACK EXIT SAVE & EXIT IMAGE MODE WHITE BALANCE BRIGHTNESS CONTRAST VIDEO SHARPNESS SETTINGS SATURATION BACK EXIT SAVE & EXIT AUDIO VOLUME AUDIO MAIN MENU SETTINGS BACK EXIT SAVE & EXIT LIGHT SMART THRESHOLD LIGHT LEVEL...
When switching the video output as CVI, you can set the video format as 4M@25 fps, or 4M@30 fps. 3.2 EXPOSURE EXPOSURE MODE You can set the EXPOSURE MODE to GLOBAL, BLC, HLC, or DWDR. GLOBAL GLOBAL refers to the normal exposure mode which adjusts lighting distribution, variations, and non-standard processing.
the image. You can set WHITE BALANCE mode to AUTO or MANUAL. AUTO Under AUTO mode, white balance is being adjusted automatically according to the color temperature of the scene illumination. MANUAL You can adjust the R-GAIN and B-GAIN value to correct colors manually.
Figure 3-6 SMART LIGHT AUTO Under the AUTO mode, the white light turns on automatically as the environment becomes dark. The THRESHOLD is the environmental light level at which the white light turns on. The greater the value is, the darker the environment should be to activate the light.
