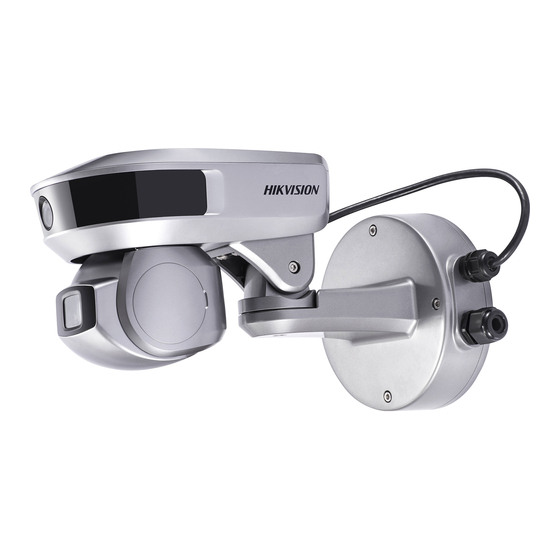

HIKVISION PanoVu PT Series User Manual

Target capture camera
Hide thumbs Also See for PanoVu PT Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Target Capture Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION PanoVu PT Series

Summary of Contents for HIKVISION PanoVu PT Series

  • Page 1 Target Capture Camera User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Target Capture Camera User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

  • Page 4: Table Of Contents

    Target Capture Camera User Manual Contents Chapter 1 Overview ........................1 1.1 Product Introduction ......................1 1.2 Key Function .......................... 1 1.3 System Requirement ......................1 Chapter 2 Device Activation and Accessing ................. 3 2.1 Activate Device ........................3 2.1.1 Activate Device via Web Browser .................. 3 2.1.2 Activate via SADP ......................
  • Page 5 Target Capture Camera User Manual 3.4.2 Set Face Picture Comparison ..................23 3.4.3 View Face Comparison Result ..................24 3.5 Face Modeling ........................24 Chapter 4 PTZ ........................... 25 4.1 PTZ Control .......................... 25 4.2 Set Preset ..........................27 4.2.1 Special Presets ......................27 4.3 Set Patrol Scan ........................
  • Page 6 Target Capture Camera User Manual 5.1.10 Lens Initialization ...................... 36 5.1.11 Light .......................... 36 5.1.12 Display Target Information on Live View ..............36 5.1.13 Undervoltage Alarm ....................37 5.2 Set Transmission Parameters ....................37 Chapter 6 Video and Audio ....................... 39 6.1 Video Settings ........................
  • Page 7 Target Capture Camera User Manual 7.1 Storage Settings ........................49 7.1.1 Memory Card ......................49 7.1.2 Set FTP ........................51 7.1.3 Set NAS ........................52 7.1.4 Set Cloud Storage ......................53 7.2 Video Recording ........................53 7.2.1 Record Automatically ....................54 7.2.2 Record Manually ......................
  • Page 8 Target Capture Camera User Manual 9.2.5 Trigger Recording ......................66 Chapter 10 Network Settings ....................67 10.1 TCP/IP ..........................67 10.1.1 Multicast ........................68 10.1.2 Multicast Discovery ....................69 10.2 Port ............................ 69 10.3 Port Mapping ........................70 10.3.1 Set Auto Port Mapping ....................70 10.3.2 Set Manual Port Mapping ..................
  • Page 9 Target Capture Camera User Manual 11.4 Import and Export Configuration File ................81 11.5 Export Diagnose Information ..................... 81 11.6 Reboot ..........................81 11.7 Upgrade ..........................81 11.8 View Open Source Software License .................. 82 11.9 Demist ..........................82 11.10 Set Live View Connection ....................82 11.11 Time and Date ........................

  • Page 10: Chapter 1 Overview

    Chapter 1 Overview 1.1 Product Introduction PanoVu PT series target capture camera is an HD camera for remote monitoring through network. It is easy to install with simple wiring and is easy to use. The device consists of two channels: Camera 01 is the PTZ channel and Camera 02 is the panoramic channel.
  • Page 11 Target Capture Camera User Manual Recommended Specifications Mac OS 10.13 or later Intel® Pentium® IV 3.0 GHz or higher 1 G or higher Display 1024 × 768 resolution or higher Web Browser Internet Explorer 9 to 11.0, Apple Safari 12 and above version, Mozilla Firefox 52 and above version, Google Chrome 57 and above version.

  • Page 12: Chapter 2 Device Activation And Accessing

    Target Capture Camera User Manual Chapter 2 Device Activation and Accessing To protect the security and privacy of the user account and data, you should set a login password to activate the device when access the device via network. Note Refer to the user manual of the software client for the detailed information about the client software activation.

  • Page 13: Activate Via Sadp

    • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should belong to the same subnet.

  • Page 14: Access Device Via Web Browser

    Target Capture Camera User Manual 2.2 Access Device via Web Browser Before You Start Check the system requirement to confirm that the operating computer and web browser meets the requirements. Steps 1. Open the web browser. 2. Input IP address of the device to enter the login interface. 3.

  • Page 15: Admin Password Recovery

    Target Capture Camera User Manual Operating System Web Browser Operation are restricted. For example, Playback and Picture are not available. For detailed restricted function, refer to the actual device. Note The device only supports Windows and Mac OS system and do not support Linux system. 2.2.2 Admin Password Recovery If you forget the admin password, you can reset the password by clicking Forget Password on the login page after completing the account security settings.
  • Page 16 Target Capture Camera User Manual Locking Duration The device releases the lock after the setting duration.

  • Page 17: Chapter 3 Smart Function

    Target Capture Camera User Manual Chapter 3 Smart Function 3.1 Linked Capture The panoramic channel and the PTZ channel are linked together to fast locate and capture targets. Function Setup To set up the linked capture, the following configurations should be done in order: 1.

  • Page 18: Multi-Target-Type Detection

    Target Capture Camera User Manual Note To use this function, your web browser version should be above IE11.0.9600.17843. Live View Parameter Icon Function Start or stop live view. For devices with multiple channels, you can choose a way to display the images. For devices with multiple channels, you can choose a channel for live view.

  • Page 19: Set Multi-Target-Type Detection In Ptz Channel

    Target Capture Camera User Manual Note For certain device models, you need to select Multi-Target-Type Detection on VCA Resource page first. 3.2.1 Set Multi-Target-Type Detection in PTZ Channel Go to Configuration → System → System Settings → VCA Resource to enable the multi-target-type detection for Camera 1 (the PTZ channel).
  • Page 20 Target Capture Camera User Manual Overlay and Capture Choose to configure capture parameters and the information you want to display on stream and picture. Display VCA Info. on Stream Display smart information on stream, including the target and rules information. Display Target Info.
  • Page 21 Target Capture Camera User Manual It is the speed of deciding whether an object in detection area is a target or not. The higher the value is, the faster the target will be detected. The default value is recommended. Sensitivity It is the sensitivity of recognizing a target.

  • Page 22: Set Multi-Target-Type Detection In Panoramic Channel

    Target Capture Camera User Manual It refers to the quality of face to trigger quick shot. Max. Capture Interval It describes the max. time occupation for one quick shot. Capture Times It refers to the capture times a face will be captured during its stay in the configured area. Unlimited The device keeps capturing the target face, which exceeds the Quick Shot Threshold during the Max.
  • Page 23 Target Capture Camera User Manual Set Multi-Target-Type Detection Rule After set the multi-target-type detection rules and algorithm parameters, the device captures targets of multiple types and trigger linkage actions automatically. Steps 1. Go to Configuration → Multi-Target-Type Detection → Camera 02 → Rule . 2.
  • Page 24 Target Capture Camera User Manual Overlay human moving pattern on the alarm picture. Display Motor Vehicle Tracking Pattern on Alarm Picture Overlay motor vehicle moving pattern on the alarm picture. Display Target Info. on Alarm Picture Overlay the alarm picture with target information. Target Picture Settings You can set the face picture type by selecting Custom, Head Shot, Half-Body Shot, or Full-Body Shot.
  • Page 25 Target Capture Camera User Manual It is the speed of deciding whether an object in detection area is a target or not. The higher the value is, the faster the target will be detected. The default value is recommended. Sensitivity It is the sensitivity of recognizing a target.

  • Page 26: Face Capture

    Target Capture Camera User Manual Dwell Time for Capture The dwell time of the PTZ channel after a capture. Upload No-License-Plate Vehicle Upload the captured picture of the vehicle with no license plate. Remove Duplicated Targets It filters out repeated captures of the same target. Face Filtering Time It means the time interval between the camera detecting a face and taking a capture action.

  • Page 27: Operate Manual Face Capture

    Target Capture Camera User Manual 7. Input the min. pupil distance in the text field, or click to draw min. pupil distance. Min. Pupil Distance The min. pupil distance refers to the minimum area between two pupils, and it is basic for the device to recognize a face.

  • Page 28: Face Capture Algorithm Parameters

    Target Capture Camera User Manual Comparing to target picture, background picture is the scene image offers extra environmental information. You can set the background picture quality and resolution. If the background image need to be uploaded to surveillance center, check Background Upload. Custom Information Check and input desired custom information to display.
  • Page 29 Target Capture Camera User Manual It refers for the quality of face to trigger capture and alarm. Higher value means better quality should be met to trigger capture and alarm. Remove Duplicated Faces This function can filter out repeated captures of certain face. Note Remove Duplicated Faces, Face Picture Comparison, and Face Modeling cannot be turned on simultaneously, and the device can support only one function at a time.

  • Page 30: Face Comparison

    Target Capture Camera User Manual Enable the function, and the device automatically adjusts exposure level when human faces appear in the scene. Reference Brightness It refers to the reference brightness of a face in the face exposure mode. If a face in the actual scene is brighter than the set reference brightness, the device lower the exposure level.
  • Page 31 Target Capture Camera User Manual 4) Optional: Modify a face picture library. Select the desired library and click and change related parameters. 5) Optional: Delete a library. Select the desired library and click 3. Add face pictures to the library. Note The picture format should be JPEG, and the size no larger than 300 K per file.

  • Page 32: Set Face Picture Comparison

    Target Capture Camera User Manual 3.4.2 Set Face Picture Comparison The function compares captured pictures with face pictures in library and output comparison result. Comparison result can trigger certain actions when arming schedule and linkage method are set. Before You Start You should first create a face picture library and add face pictures.

  • Page 33: View Face Comparison Result

    Target Capture Camera User Manual 3.4.3 View Face Comparison Result Steps 1. Go to Application. 2. Set search condition and click Counting. Matched results are shown in Face Picture Comparison Statistics area. 3.5 Face Modeling Face modeling serves the purpose of collecting face pictures, creating face models and uploading data to the surveillance center.

  • Page 34: Chapter 4 Ptz

    Target Capture Camera User Manual Chapter 4 PTZ PTZ is an abbreviation for pan, tilt, and zoom. It means the movement options of the camera. 4.1 PTZ Control In live view interface, you can use the PTZ control buttons to control the device panning, tilting, and zooming.
  • Page 35 Target Capture Camera User Manual Non-motor Vehicle Choose Non-motor Vehicle when you monitor the non-motor vehicles. Motor Vehicle Choose Motor Vehicle when you monitor the motor vehicles. Auto You are recommended to set it as Auto when the application scene of the speed dome is complicated.

  • Page 36: Set Preset

    Target Capture Camera User Manual 4.2 Set Preset A preset is a predefined image position. For the defined preset, you can call the preset No. to view the position. Steps 1. Click to show the setting panel, and click 2. Use the PTZ control buttons to move the lens to the desired position. 3.

  • Page 37: Set Patrol Scan

    Target Capture Camera User Manual 4.3 Set Patrol Scan Patrol scan is a function to automatically move among multiple presets. Before You Start Make sure that you have defined more than one presets. See Set Preset for detailed configuration. Steps 1.

  • Page 38: Set Initial Position

    Target Capture Camera User Manual Steps 1. Go to Configuration → PTZ → Limit . 2. Select Limit Type. Manual Stops It refers to the movement range limit when you control the device manually. 3. Click Set and set limits according to the prompt on the live image. 4.

  • Page 39: Set Park Action

    Target Capture Camera User Manual 6. Click Save. Note If you want to clear all scheduled tasks, go to Configuration → PTZ → Clear Config , check Clear All Scheduled Tasks, and click Save. 4.7 Set Park Action You can set the device to perform an action (for example, preset or patrol) or return to a position after a period of inactivity (park time).

  • Page 40: Set Rapid Focus

    Target Capture Camera User Manual Active Zoom Ratio When the actual zoom ratio is less than the set active zoom ratio, the set area can not be covered. When the actual zoom ratio is greater than the set active zoom ratio, the privacy mask is valid.

  • Page 41: Set Panorama Tracking

    Target Capture Camera User Manual 4. Check Enable after successful calibration. 5. Click Save. 4.10 Set Panorama Tracking The PTZ channel tracks detected target after panoramic channel and PTZ channel. Steps 1. Go to Configuration → PTZ → Panorama Tracking . 2.

  • Page 42: Set Ptz Priority

    Target Capture Camera User Manual 4.12 Set PTZ Priority The function can set the PTZ priority of different signals. Steps 1. Go to Configuration → PTZ → Prioritize PTZ . 2. Set the priority signal and delayed time. Network The network signal controls the device with priority. RS-485 The RS-485 signal controls the device with priority.

  • Page 43: Chapter 5 Live View

    Target Capture Camera User Manual Chapter 5 Live View It introduces the live view parameters, function icons and transmission parameters settings. 5.1 Live View Parameters Note For multichannel devices, select the desired channel first before live view settings. 5.1.1 Window Division You can choose a layout for live view window.

  • Page 44: Start Digital Zoom

    Target Capture Camera User Manual 5.1.5 Start Digital Zoom It helps to see a detailed information of any region in the image. Steps 1. Click to enable the digital zoom. 2. In live view image, drag the mouse to select the desired region. 3.

  • Page 45: Count Pixel

    Target Capture Camera User Manual 5.1.9 Count Pixel It helps to get the height and width pixel of the selected region in the live view image. Steps 1. Click to enable the function. 2. Drag the mouse on the image to select a desired rectangle area. The width pixel and height pixel are displayed on the bottom of the live view image.

  • Page 46: Undervoltage Alarm

    Target Capture Camera User Manual Note Multi-target-type detection should be set before enabling the function. 5.1.13 Undervoltage Alarm It is used to monitor the device voltage and warns you when the voltage is alarmingly low. When the device voltage is too low, a sign appears in live view image.
  • Page 47 Target Capture Camera User Manual The device takes the real-time video image as the priority over the video fluency. Balanced The device ensures both the real-time video image and the fluency. Fluent The device takes the video fluency as the priority over teal-time. In poor network environment, the device cannot ensures video fluency even the fluency is enabled.

  • Page 48: Chapter 6 Video And Audio

    Target Capture Camera User Manual Chapter 6 Video and Audio This part introduces the configuration of video and audio related parameters. 6.1 Video Settings This part introduces the settings of video parameters, such as, stream type, video encoding, and resolution. Go to setting page: Configuration →...

  • Page 49: Resolution

    Target Capture Camera User Manual 6.1.3 Resolution Select video resolution according to actual needs. Higher resolution requires higher bandwidth and storage. 6.1.4 Bitrate Type and Max. Bitrate Constant Bitrate It means that the stream is compressed and transmitted at a comparatively fixed bitrate. The compression speed is fast, but mosaic may occur on the image.
  • Page 50 Target Capture Camera User Manual H.264 H.264, also known as MPEG-4 Part 10, Advanced Video Coding, is a compression standard. Without compressing image quality, it increases compression ratio and reduces the size of video file than MJPEG or MPEG-4 Part 2. H.264+ H.264+ is an improved compression coding technology based on H.264.

  • Page 51: Profile

    Target Capture Camera User Manual 6.1.8 Profile This function means that under the same bitrate, the more complex the profile is, the higher the quality of the image is, and the requirement for network bandwidth is also higher. 6.1.9 SVC Scalable Video Coding (SVC) is the name for the Annex G extension of the H.264 or H.265 video compression standard.

  • Page 52: Audio Encoding

    Target Capture Camera User Manual 6.2.1 Audio Encoding Select the audio encoding compression of the audio. 6.2.2 Environmental Noise Filter Set it as OFF or ON. When the function is enabled, the noise in the environment can be filtered to some extent.
  • Page 53 Target Capture Camera User Manual Image Adjustment By adjusting the Brightness, Saturation, Contrast and Sharpness, the image can be best displayed. Exposure Settings Exposure is controlled by the combination of iris, shutter, and gain. You can adjust image effect by setting exposure parameters.
  • Page 54 Target Capture Camera User Manual Semi-auto The device focuses once after the PTZ and lens zooming. If the image is clear, the focus does not change when the scene changes. Manual You can adjust the focus manually on the live view page. Min.
  • Page 55 Target Capture Camera User Manual When the mode is set to Auto, the supplement light is automatically turned in or off according to the image brightness. When the mode is set to Scheduled, set the start time and end time for the light to work. When the mode is set to NC, the light is off.

  • Page 56: Image Parameters Switch

    Target Capture Camera User Manual Set the DNR level for both space DNR and time DNR to control the noise reduction degree. The higher level means stronger reduction degree. White Balance White balance is the white rendition function of the camera. It is used to adjust the color temperature according to the environment.

  • Page 57: Video Standard

    Target Capture Camera User Manual Note For Linked Scene configuration, refer to Scene Mode . 3. Click Save. 6.4.3 Video Standard Video standard is an ability of a video card or video display device that defines the amount of colors that are shown and the resolution. The two most common video standard used are NTSC and PAL.

  • Page 58: Chapter 7 Video Recording And Picture Capture

    Target Capture Camera User Manual Chapter 7 Video Recording and Picture Capture This part introduces the operations of capturing video clips and snapshots, playback, and downloading captured files. 7.1 Storage Settings This part introduces the configuration of several common storage paths. 7.1.1 Memory Card You can view the capacity, free space, status, type, and property of the memory card.
  • Page 59 The device detects the status of Hikvision memory card. You receive notifications when your memory card is detected abnormal. Before You Start The configuration page only appears when a Hikvision memory card is installed to the device. Steps 1. Go to Configuration → Storage → Storage Management → Memory Card Detection .

  • Page 60: Set Ftp

    Target Capture Camera User Manual Remaining Lifespan It shows the percentage of the remaining lifespan. The lifespan of a memory card may be influenced by factors such as its capacity and the bitrate. You need to change the memory card if the remaining lifespan is not enough. Health Status It shows the condition of your memory card.

  • Page 61: Set Nas

    Target Capture Camera User Manual Before You Start Get the FTP server address first. Steps 1. Go to Configuration → Network → Advanced Settings → FTP . 2. Configure FTP settings. Server Address and Port The FTP server address and corresponding port. User Name and Password The FTP user should have the permission to upload pictures.

  • Page 62: Set Cloud Storage

    Target Capture Camera User Manual The saving path of network disk files. Mounting Type Select file system protocol according to the operation system. Enter user name and password of the net HDD to guarantee the security if SMB/CIFS is selected. 3.

  • Page 63: Record Automatically

    Target Capture Camera User Manual 7.2.1 Record Automatically This function can record video automatically during configured time periods. Before You Start Select Trigger Recording in event settings for each record type except Continuous. See Event and Alarm for details. Steps 1.

  • Page 64: Record Manually

    Target Capture Camera User Manual The time period you set to record before the scheduled time. Post-record The time period you set to stop recording after the scheduled time. Stream Type Select the stream type for recording. Note When you select the stream type with higher bitrate, the actual time of the pre-record and post-record may be less than the set value.

  • Page 65: Capture Configuration

    Target Capture Camera User Manual Note Go to Configuration → Local , click Save downloaded files to to change the saving path of downloaded video files. 7.3 Capture Configuration The device can capture the pictures manually or automatically and save them in configured saving path.

  • Page 66: View And Download Picture

    Target Capture Camera User Manual 7.3.3 View and Download Picture You can search, view and download the pictures stored in the local storage or network storage. Steps 1. Click Picture. 2. Select channel No. 3. Set search condition and click Search. The matched pictures showed in the file list.

  • Page 67: Chapter 8 Event And Alarm

    Target Capture Camera User Manual Chapter 8 Event and Alarm This part introduces the configuration of events. The device takes certain response to triggered alarm. 8.1 Basic Event 8.1.1 Set Motion Detection This function detects moving objects in the detection region and trigger linkage actions. Steps 1.
  • Page 68 Target Capture Camera User Manual Figure 8-1 Set Rules Stop Drawing Stop drawing one area. Clear All Clear all the areas. 4. Optional: You can set the parameters of multiple areas by repeating the above steps. Expert Mode You can configure different motion detection parameters for day and night according to the actual needs.

  • Page 69: Set Video Tampering Alarm

    Target Capture Camera User Manual 3. Select an Area and click Draw Area. Click and drag the mouse on the live image and then release the mouse to finish drawing one area. Figure 8-2 Set Rules Stop Drawing Finish drawing one area. Clear All Delete all the areas.

  • Page 70: Set Exception Alarm

    Target Capture Camera User Manual Figure 8-3 Set Video Tampering Area 6. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method. 7. Click Save. 8.1.3 Set Exception Alarm Exception such as network disconnection can trigger the device to take corresponding action. Steps 1.

  • Page 71: Set Alarm Input

    Target Capture Camera User Manual 8.1.4 Set Alarm Input Alarm signal from the external device triggers the corresponding actions of the current device. Before You Start Make sure the external alarm device is connected. See Quick Start Guide for cables connection. Steps 1.

  • Page 72: Chapter 9 Arming Schedule And Alarm Linkage

    Target Capture Camera User Manual Chapter 9 Arming Schedule and Alarm Linkage Arming schedule is a customized time period in which the device performs certain tasks. Alarm linkage is the response to the detected certain incident or target during the scheduled time. 9.1 Set Arming Schedule Set the valid time of the device tasks.

  • Page 73: Ftp/Nas/Memory Card Uploading

    Target Capture Camera User Manual Automatic Alarm Set the automatic alarm parameters, then the device triggers an alarm output automatically in the set arming schedule. Steps 1. Set automatic alarm parameters. Alarm Output No. Select the alarm output No. according to the alarm interface connected to the external alarm device.

  • Page 74: Send Email

    Target Capture Camera User Manual Refer to Set FTP to set the FTP server. Refer to Set NAS for NAS configuration. Refer to Set New or Unencrypted Memory Card for memory card storage configuration. 9.2.3 Send Email Check Send Email, and the device sends an email to the designated addresses with alarm information when an alarm event is detected.

  • Page 75: Notify Surveillance Center

    Target Capture Camera User Manual 9.2.4 Notify Surveillance Center Check Notify Surveillance Center, the alarm information is uploaded to the surveillance center when an alarm event is detected. 9.2.5 Trigger Recording Check Trigger Recording, and the device records the video about the detected alarm event. For device with more than one camera channels, you can set one or more channels to take recordings if needed.

  • Page 76: Chapter 10 Network Settings

    Target Capture Camera User Manual Chapter 10 Network Settings 10.1 TCP/IP TCP/IP settings must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other. Go to Configuration →...

  • Page 77: Multicast

    Target Capture Camera User Manual Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction. The valid value range of MTU is 1280 to 1500.

  • Page 78: Multicast Discovery

    Target Capture Camera User Manual 10.1.2 Multicast Discovery Check the Enable Multicast Discovery, and then the online network camera can be automatically detected by client software via private multicast protocol in the LAN. 10.2 Port The device port can be modified when the device cannot access the network due to port conflicts. Caution Do not modify the default port parameters at will, otherwise the device may be inaccessible.

  • Page 79: Port Mapping

    Target Capture Camera User Manual Note • Enhanced SDK Service Port, WebSocket Port, and WebSockets Port are only supported by certain models. • For device models that support that function, go to Configuration → Network → Advanced Settings → Network Service to enable it. 10.3 Port Mapping By setting port mapping, you can access devices through the specified port.

  • Page 80: Set Port Mapping On Router

    Target Capture Camera User Manual What to do next Go to the router port mapping settings interface and set the port number and IP address to be the same as those on the device. For more information, refer to the router user manual. 10.3.3 Set Port Mapping on Router The following settings are for a certain router.

  • Page 81: Snmp

    Target Capture Camera User Manual 10.4 SNMP You can set the SNMP network management protocol to get the alarm event and exception messages in network transmission. Before You Start Before setting the SNMP, you should download the SNMP software and manage to receive the device information via SNMP port.

  • Page 82: Access To Device Via Pppoe Dial Up Connection

    Target Capture Camera User Manual By Browsers Enter the domain name in the browser address bar to access the device. By Client Software Add domain name to the client software. Refer to the client manual for specific adding methods. 10.6 Access to Device via PPPoE Dial Up Connection This device supports the PPPoE auto dial-up function.

  • Page 83: Accessing Via Mobile Client

    Target Capture Camera User Manual 10.7 Accessing via Mobile Client Hik-Connect is an application for mobile devices. Using the App, you can view live image, receive alarm notification and so on. Note Hik-Connect service should be supported by the camera. 10.7.1 Enable Hik-Connect Service on Camera Hik-Connect service should be enabled on your camera before using the service.

  • Page 84: Set Up Hik-Connect

    - Visit https://appstore.hikvision.com to download the application according to your mobile phone system. - Visit the official site of our company. Then go to Support → Tools → Hikvision App Store . - Scan the QR code below to download the application.

  • Page 85: Set Isup

    Target Capture Camera User Manual Note • The required verification code is the code you create or change when you enable Hik-Connect service on the camera. • If you forget the verification code, you can check the current verification code on Platform Access configuration page via web browser.

  • Page 86: Set Network Service

    Target Capture Camera User Manual 3. Click Add to configure the Open Network Video Interface user. Delete Delete the selected Open Network Video Interface user. Modify Modify the selected Open Network Video Interface user. 4. Click Save. 5. Optional: Repeat the steps above to add more Open Network Video Interface users. 10.10 Set Network Service You can control the ON/OFF status of certain protocol as desired.

  • Page 87: Set Alarm Server

    Target Capture Camera User Manual Note • Complete certificate management before selecting server certificate. Refer to Certificate Management for detailed information. • When set up connection between the device and the client software, it is recommended to use Enhanced SDK Service and set the communication in Arming Mode to encrypt the data transmission.

  • Page 88: Set Srtp

    Target Capture Camera User Manual It helps to improve latency and reduce packet loss caused by network congestion and ensure the video quality as well. Shaping level is configurable. 10.14 Set SRTP The Secure Real-time Transport Protocol (SRTP) is a Real-time Transport Protocol (RTP) internet protocol, intended to provide encryption, message authentication and integrity, and replay attack protection to the RTP data in both unicast and multicast applications.

  • Page 89: Chapter 11 System And Security

    Target Capture Camera User Manual Chapter 11 System and Security It introduces system maintenance, system settings and security management, and explains how to configure relevant parameters. 11.1 View Device Information You can view device information, such as Device No., Model, Serial No. and Firmware Version. Enter Configuration →...

  • Page 90: Import And Export Configuration File

    Target Capture Camera User Manual 11.4 Import and Export Configuration File It helps speed up batch configuration on other devices with the same parameters. Steps 1. Export configuration file. 1) Go to Configuration → System → Maintenance → Upgrade & Maintenance . 2) Click Device Parameters and input the encryption password to export the current configuration file.

  • Page 91: View Open Source Software License

    Target Capture Camera User Manual Firmware Directory Locate the directory which the upgrade file belongs to. 3. Click Browse to select the upgrade file. 4. Click Upgrade. 11.8 View Open Source Software License Go to Configuration → System → System Settings → About Device , and click View Licenses. 11.9 Demist Demist is to remove the condensation on the lens and the glass window.

  • Page 92: Set Ntp Server

    Target Capture Camera User Manual - Select Set Time, and manually input or select date and time from the pop-up calendar. - Check Sync. with computer time to synchronize the time of the device with that of the local 5. Click Save. 11.11.2 Set NTP Server You can use NTP server when accurate and reliable time source is required.

  • Page 93: Set Ip Address Filter

    Target Capture Camera User Manual Go to Configuration → System → Security → Authentication to choose authentication protocol and method according to your needs. RTSP Authentication Digest and digest/basic are supported, which means authentication information is needed when RTSP request is sent to the device. If you select digest/basic, it means the device supports digest or basic authentication.

  • Page 94: Set Https

    Target Capture Camera User Manual Modify Modify the selected IP address or IP address range in the list. Delete Delete the selected IP address or IP address range in the list. 5. Click Save. 11.12.3 Set HTTPS HTTPS is a network protocol that enables encrypted transmission and identity authentication, which improves the security of remote access.

  • Page 95: Set Ieee 802.1X

    Target Capture Camera User Manual 11.12.5 Set IEEE 802.1X You can authenticate user permission of the connected device by setting IEEE 802.1X. Go to Configuration → Network → Advanced Settings → 802.1X , and enable the function. Select protocol and version according to router information. User name and password of server are required.

  • Page 96: Ssh

    Target Capture Camera User Manual Before You Start • Install client and CA certificates before configuration. Refer to Certificate Management for detailed information. • Select certificates according to the requirement of the log server. If two-way authentication is required, select the CA certificate and the client certificate. If one-way authentication is required, select the CA certificate only.
  • Page 97 Target Capture Camera User Manual Create and Install Self-signed Certificate Steps 1. Go to Configuration → System → Security → Certificate Management . 2. Click Create Self-signed Certificate. 3. Input certificate information. Note The input certificate ID cannot be the same as the existing ones. 4.
  • Page 98 Target Capture Camera User Manual The imported certificate is displayed in the Server/Client Certificate list. If the certificate is used by certain function, the function name is shown in the column Functions. 9. Optional: Click Certificate Property see the certificate details. Install Other Authorized Certificate If you already has an authorized certificate (not created by the device), you can import it to the device directly.

  • Page 99: User And Account

    Target Capture Camera User Manual 4. Click OK. The imported certificate is displayed in the CA Certificate list. If the certificate is used by certain functions, the function name is shown in the Functions column. 11.12.10 User and Account Set User Account and Permission The administrator can add, modify, or delete other accounts, and grant different permission to different user levels.
  • Page 100 Target Capture Camera User Manual Simultaneous Login The administrator can set the maximum number of users logging into the system through web browser simultaneously. Go to Configuration → System → User Management , click General and set Simultaneous Login. Online Users The information of users logging into the device is shown.

  • Page 101: Appendix A. Device Command

    Target Capture Camera User Manual Appendix A. Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for all Hikvision network cameras.

  • Page 102: Appendix B. Device Communication Matrix

    Target Capture Camera User Manual Appendix B. Device Communication Matrix Scan the following QR code to get device communication matrix. Note that the matrix contains all communication ports of Hikvision network cameras.
  • Page 103 UD20912B...

This manual is also suitable for:

Ds-egd0288-h/fr

Table of Contents
