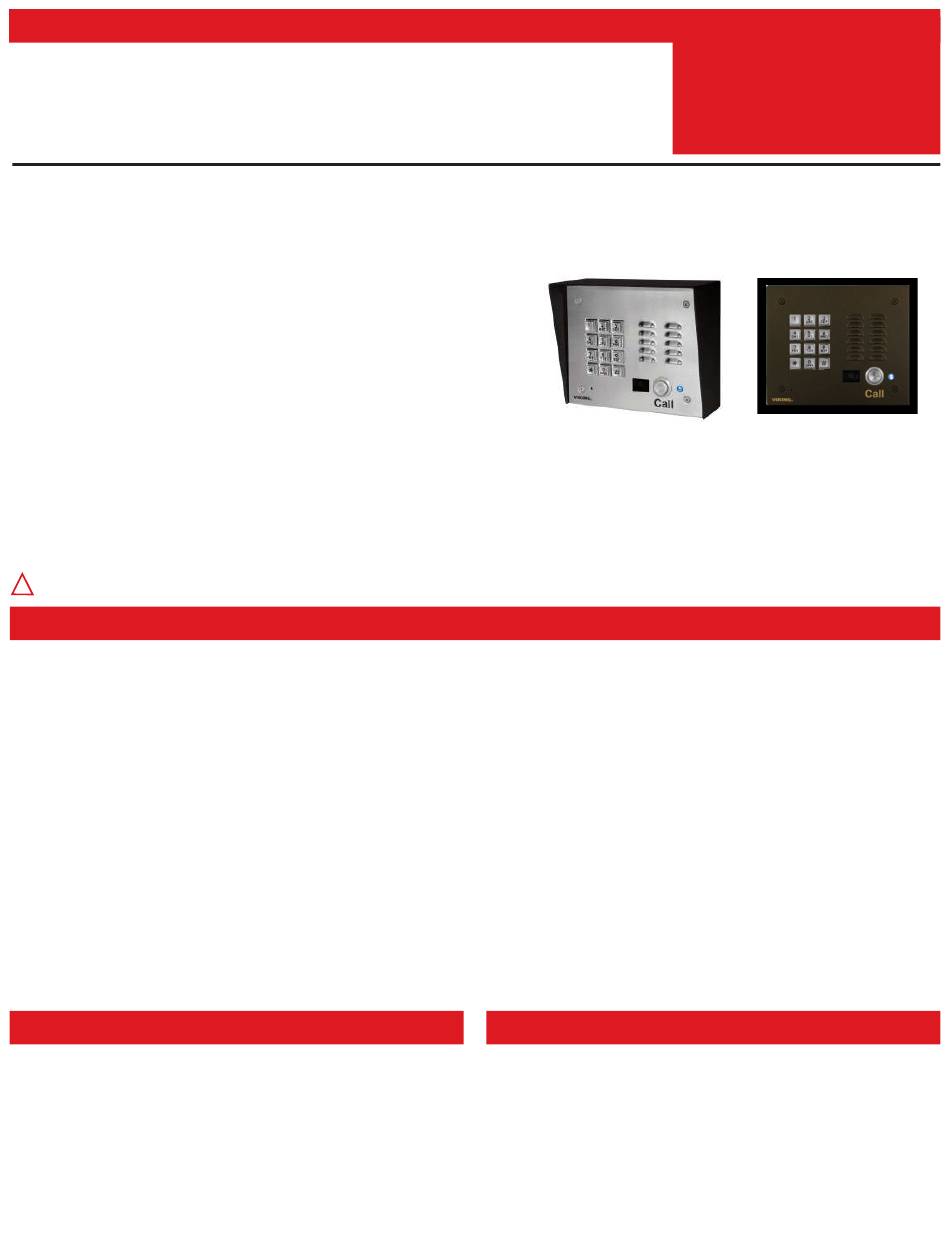

Designed, Manufactured and Supported in the USA
VIKING
S E C U R I T Y & C O M M U N I C A T I O N
Vandal Resistant VoIP Entry Phone System with
Integrated Keypad and Analog Color Video Camera
The K-1705-IP Series entry phones provide a durable and attractive hands-free phone for
apartment and residential door entry or applications requiring a vandal resistant VoIP speaker
phone with an integrated analog Color Video Camera. The K-1705-IP phone is designed to
provide quick and reliable hands-free communication for SIP VoIP phone systems with PoE.
The unit can be programmed from any PC on the same LAN or remotely using a Static IP
Address. The K-1705-IP entry phone can dial up to 250 programmable numbers and another
250 rollover numbers and provide CCTV video of the entry area. They are available in two
attractive finishes: "Brushed Stainless Steel" and "Oil Rubbed Bronze".
When the K-1705-IP phone is connected to an apartment or business tenant, a built-in contact
closure may be activated to control an electric gate or door strike. Up to 1,000 keyless entry
codes may be programmed, providing tenants with keyless entry. A 26 Bit Wiegand input is
provided for adding an optional proximity card reader with capacity to program up to 1,000 card
numbers. Keyless entry codes and card numbers can be programmed to only allow access at
specific times and/or day of the week. The K-1705-IP includes a request for exit (REX) input and
also offers activity logging.
Installation requires the assistance of a Network Administrator / IT Technician.
!
• Built-in high resolution analog NTSC color video camera with wide viewing angle,
tilt/swivel adjustments and wide operating temperature: -40°F to 140°F
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with
permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad
and "Call" button. Scratch resistant powder coating (K-1705-BN-IP). T-10 Security
Torx drive mounting screws.
• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws
and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-
draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant
powder paint (K-1705-BN-IP)
• Available in 2 standard finishes: 316 brushed stainless steel with laser etched
graphics or oil rubbed bronze powder paint with copper metallic graphics
• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control, see DOD 582
• Blue "Call /Status" LED indicator
• SIP compliant (see page 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 2, <6.5 watts)
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
• Viking's proprietary VOX switching eliminates the need for "Push to Talk" mode
• Network downloadable firmware
Applications
• Apartment Entry Phone
• Residential Gate Entrance
• Door Entry Phone
• Courtesy Assistance Phone
• Customer Service Phone
• Automated Teller (ATM) Phone
Information: 715-386-8861
www.VikingElectronics.com
PRODUCT MANUAL
Features
• Security or Emergency
Phone
• Hot-Line Phone
• Kiosk Phone with up to
250 number speed dialing
S O L U T I O N S

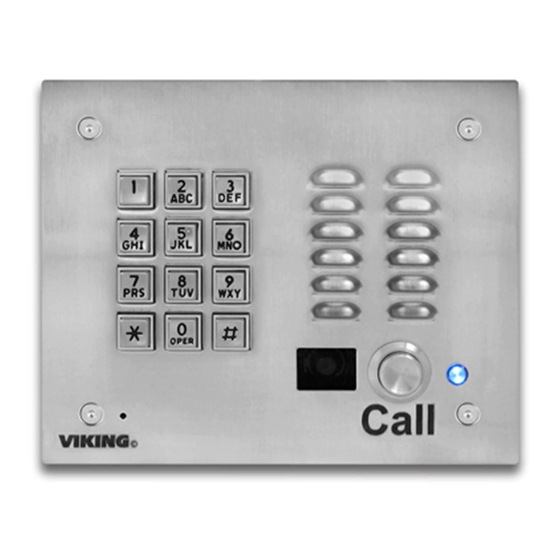

K-1705-IP
"Brushed 316 Stainless Steel"
(similar to brushed nickel)
(shown in optional surface mount box)
The K-1705-IP-EWP shares all of the features of the K-1705-IP in addition to
Enhanced Weather Protection (EWP) for outdoor installations where the unit
is exposed to precipitation or condensation. EWP products feature foam rubber
gaskets, sealed connections, gel-filled butt connectors, as well as urethane
or thermal plastic potted circuit boards. See DOD 859 for more information on
EWP.
• 26 Bit Wiegand input for optional proximity card readers, see DOD 221 and 228
• 26 Bit Wiegand output connect to card reader input of an Access Control System
• Programmable to speed dial up to 250 numbers
• Cycles to roll over phone number on busy or no-answer
• Program up to 1,000 keyless entry codes and/or proximity card numbers
• Keyless entry codes and proximity card numbers can be programmed to only allow
access at specific times and day of week
• Event logging with time and date stamp
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet
IP66 Ingress Protection Rating, see DOD 859
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range (-40°F to 140°F)
• Programmable volume adjustments for microphone and speaker
• Selectable auto-answer feature for monitoring
• Zinc plated steel rough-in box included
• Optional VE-6x7 Surface Mount Box available, see DOD 424
• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428
• Diagnostics (for testing mic, speaker & relays)
Specifications
Power: PoE class 2 (<6.5 watts)
Dimensions: Overall: 5.5" x 6.5" x 2.6" (140mm x 165mm x 66mm)
Rough-in box: 4.5" x 5.5" x 2.5" (114mm x 140mm x 64mm)
Shipping Weight: 1.5 kg (3.3 lbs)
Operating Temperature: -40°F to 140°F (-40° C to 60° C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with
auto cross over
Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors
K-1705-IP Series
VoIP Entry Phone System
with Built-In Color Camera
May 21, 2019
K-1705-BN-IP
"Oil Rubbed Bronze"
(satin dark brown powder paint
with fine copper metallic)
