- Page 1 M2MS, M2MS-AL M2MS Extension Set Quick Reference 2023...
- Page 2 Version: Date: 08-Aug-2023 Item No.: M0009-510-842 Copyright © 2023 Thorlabs...
-
Page 3: Table Of Contents
Operation Instructions Chapter 5 Beam Quality (M²) Measurement 5.1.1 M² Meter Extension Set 5.1.2 Setup M2MS 5.1.2.1 Connecting M2MS to the PC Maintenance and Service Chapter 6 Warranty and RMA Information Chapter 7 Return of Devices WEEE Policy Manufacturer Address... - Page 4 Thorlabs. Attention Prior to applying power to the M2MS Extension Set, make sure that the protective conductor of the 3 con- ductor mains power cord is correctly connected to the protective earth ground contact of the socket outlet! Improper grounding can cause electric shock resulting in damage to your health or even death! All modules must only be operated with duly shielded connection cables.
- Page 5 Chapter 1 Safety Attention The M2MS and M2MS-AL M² Measurement System comes with an alignment laser that is powered by a M2MS and M2MS-AL internal driver. Be careful when using this laser! Laser modules can deliver up to several 0.4 mW of even invisible laser radiation! When operated incorrectly, this can cause severe damage to your eyes and health! Be sure to pay strict attention to the safety recom- mendations of the appropriate laser safety class, as stated for the used light source.
- Page 6 It is used in photonics research and development applications. The M2MS and M2MS-AL Extension Set is designed for laboratory use only. The product may not be used or in- tegrated into equipment that is applied in pharmaceutical, medical, or military applications. Thorlabs, Inc. Life Support and Military Use Application Policy is stated below: THORLABS’...
- Page 7 Thorlabs offers the M2MS extension sets for measurements below 400 nm (M2MS-AL) and above 400 nm (M2MS). Adapters allow to mount the BC207 or BC210C camera beam profiler or BP209 slit beam profiler to the extension. 3.1 Ordering Codes and Accessories...

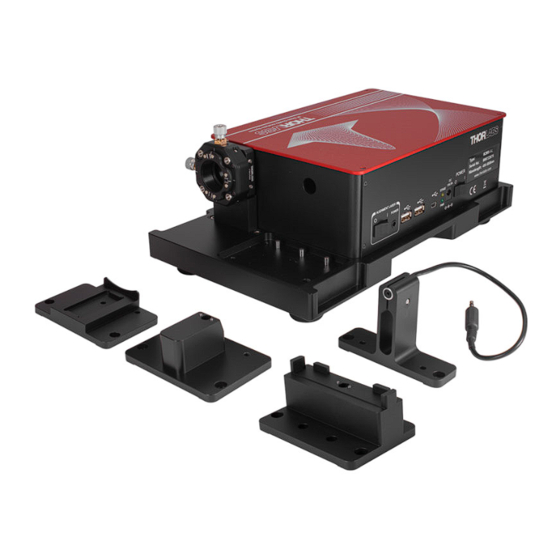

- Page 8 5.1.1 M² Meter Extension Set The M² Meter Extension Set is an automated stage, compatible with all Thorlabs beam profilers of the BP209, BC207 and BC210C Series as well as the former BC106N Series, to scan through the light beam in the Z-axis for the beam profiler to acquire an M value.
-
Page 9: Setup M2Ms
Note It is strongly recommended to fix the M2MS properly to the optical table using the four rail clamps that are in- cluded in the M2MS Accessory Box. To ensure proper mounting, first remove the rubber feet from the M2MS base plate. -
Page 10: Connecting M2Ms To The Pc
2 - Electromagnetic Endpoint Latch 3. Close the M2MS. 5.1.2.1 Connecting M2MS to the PC The M2MS comprises integrated control electronics with translation stage controller, a USB 2.0 hub and a cur- rent source for the alignment laser. Switch to enable Alignment Laser k Output connector for Alignment Laser USB 2.0 hub output ports (to Beam Profiler) (not recommended for... - Page 11 4. Switch the M2MS on (8). The green Power On indicator lights up. 5. Connect the M2MS to the PC using the supplied 3 m long USB 2.0 cable; do not start the Beam software yet. 6. The PC's operating system recognizes the connected new hardware and performs the driver installation: 7.
-
Page 12: Return Of Devices
Warranty and RMA Information Thorlabs warrants material and production of the M2MS Extension Set for a period of 24 months starting with the date of shipment in accordance with and subject to the terms and conditions set forth in Thorlabs’ General... -
Page 13: Copyright And Exclusion Of Liability
All rights reserved. This document may not be reproduced, transmitted or translated to another language, either as a whole or in parts, without the prior written permission of Thorlabs. Copyright © Thorlabs 2023. All rights reserved. -
Page 14: Thorlabs Worldwide Contacts
M2MS Extension Set Chapter 10 Thorlabs Worldwide Contacts Chapter 10 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc.
