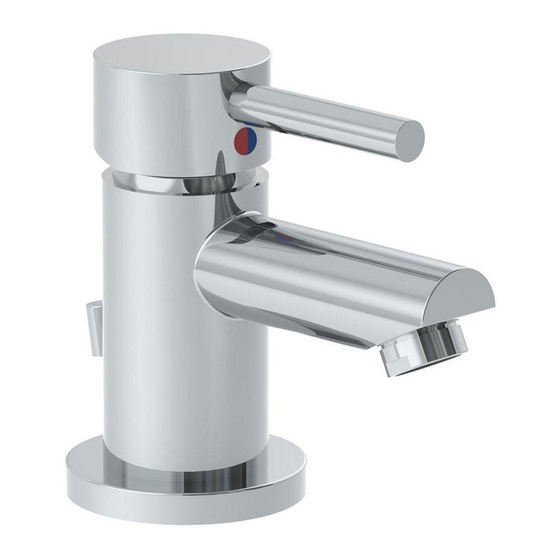

Symmons Dia SLS3522PP Operation & Maintenance Manual

SLS3522PP
Single Handle Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
☐
SLS3522PP
Single Handle Lavatory Faucet
with A Push Pop Drain Assembly
Compliance
ASME A112.18.1/CSA B125.1
NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
WaterSense 1.0 gpm (3.8 L/min)
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.

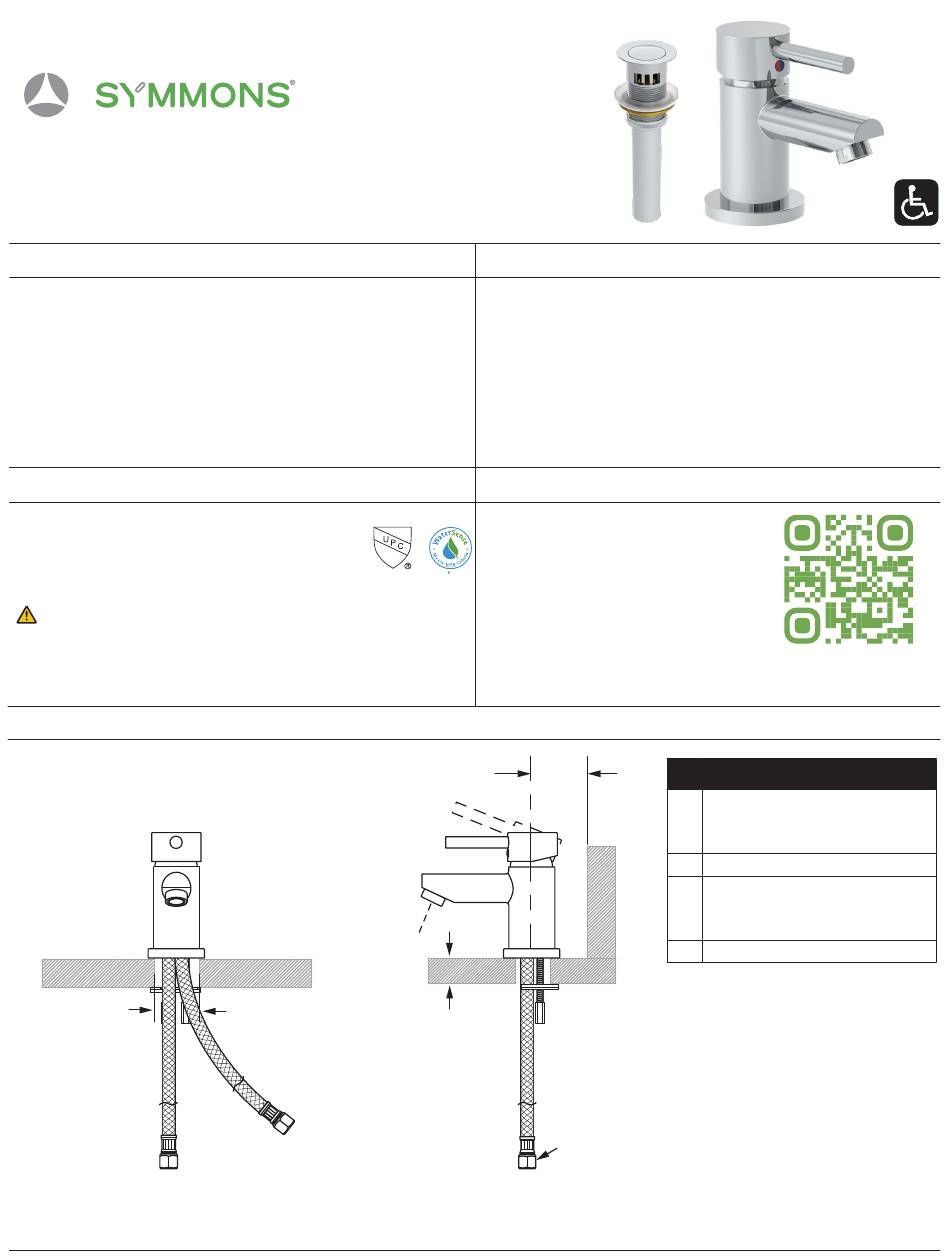

Dimensions
C C
Note: Dimensions subject to change without notice.
®
Dia
Feature Highlights
•
•
•
•
•
•
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
c
installations.
Certi ed by
10 Years - for commercial/industrial
IAPMO R&T
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
J J
Single hole mount configuration
Quarter turn ceramic cartridge
25 inch braided hose water supply connections
5" height
Standard 1.0 gpm (3.8 L/min) flow rate
Faucet shall be metal construction, plated in
standard polished chrome finish
E E
C
E
J
L
L L
Measurements
Hole Size
Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
Min. 2-1/2", 64 mm
Deck Thickness Ref.
Min. 7/8", 22 mm
Max. 1-7/8", 47 mm
3/8" compression fitting
