Symmons Dia SLS3512PP Operation & Maintenance Manual

SLS3512PP
Single Handle Lavatory Faucet
Operation & Maintanence Manual
Model Numbers
☐
SLS3512PP

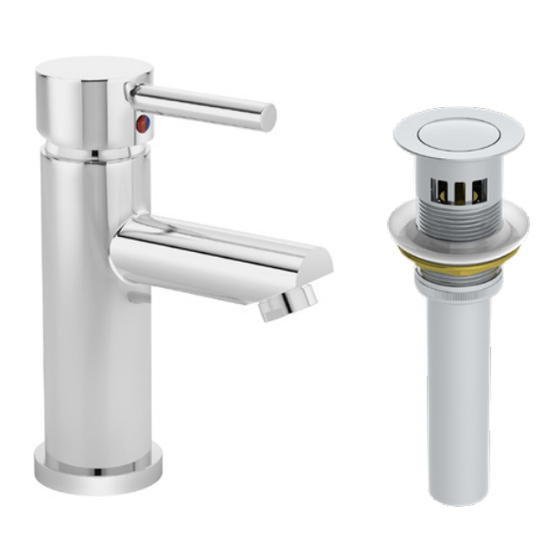

Single Handle Lavatory Faucet with
Push Pop Drain Assembly
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
-WaterSense 1.0 gpm
Installation
Quick Install Guide
HOT COLD
ON
OFF
-
+
Dia
c
Dia Lavatory Faucet
Step 4
Flush lines and
check for leaks
Optional
Adjust limit stop washer
to limit handle turn to the
hot position if desirable
HOT
®
Feature Highlights
• Single hole mount configuration
• Quarter turn ceramic cartridge
• 23 inch braided hose water supply connections
• 7-1/8" height
• Standard 1.0 gpm (3.8 L/min) flow rate
• Faucet shall be metal construction, plated in standard
polished chrome finish
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
Certi ed by
IAPMO R&T
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Step 3:
Push Pop Install: Insert drain body (L)
into drain opening. From below, Tighten
locking nut (O) with gasket (M) and
washer (N) to ange. Tighten tail nut (Y)
with washer (X) to secure tail pipe (Q).
Do Not overtighten.
Step 1
Attach faucet assembly
Step 2
Connect supply hoses
COLD
L
Plumbers Putty
1
M
N
2
O
X
3
Q
Y
