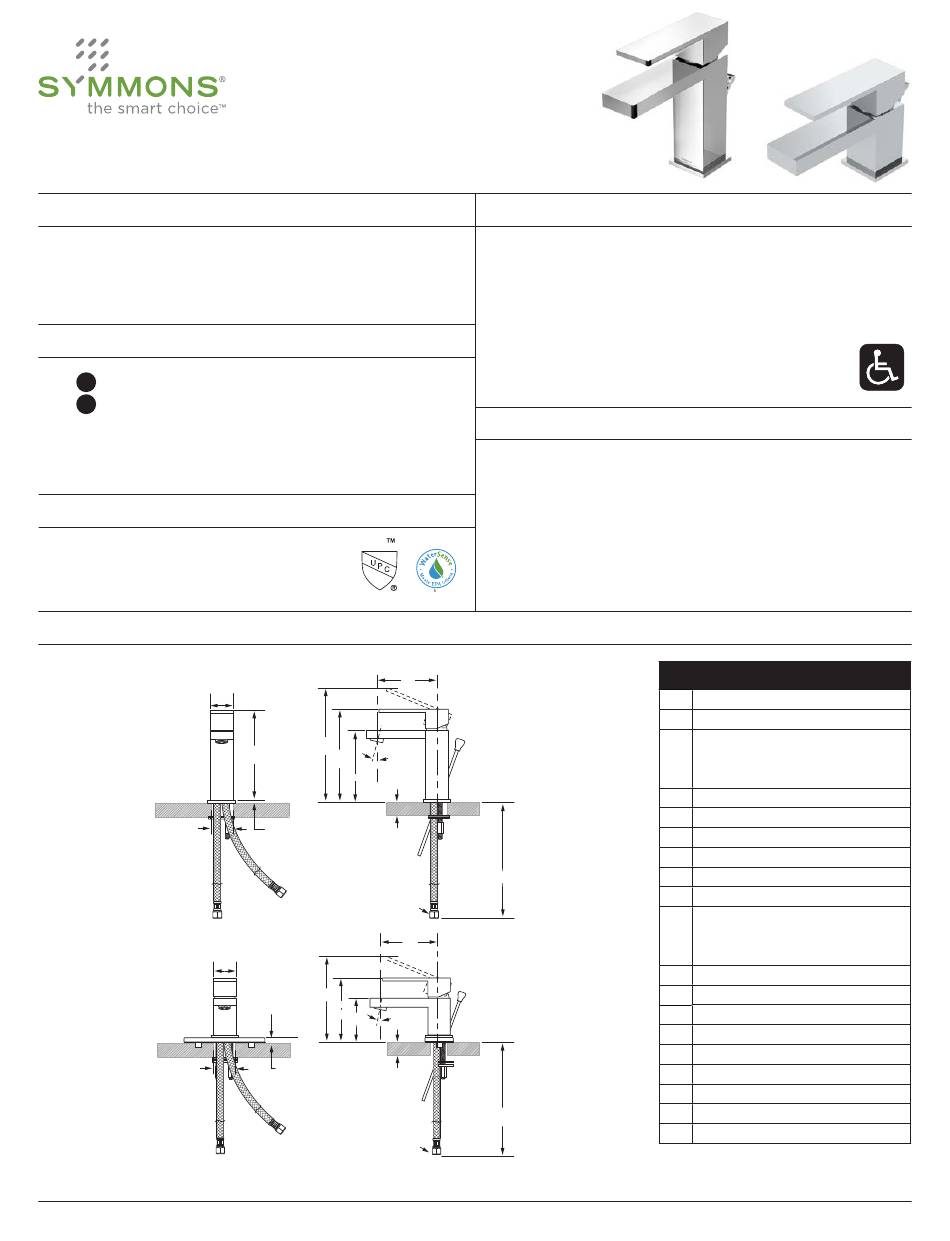

SLS-3612-1.5, SLS-3622-1.5
Duro
Single Handle Lavatory Faucet
®
Operation & Maintenance Manual
Model Numbers
☐
SLS-3612-1.5

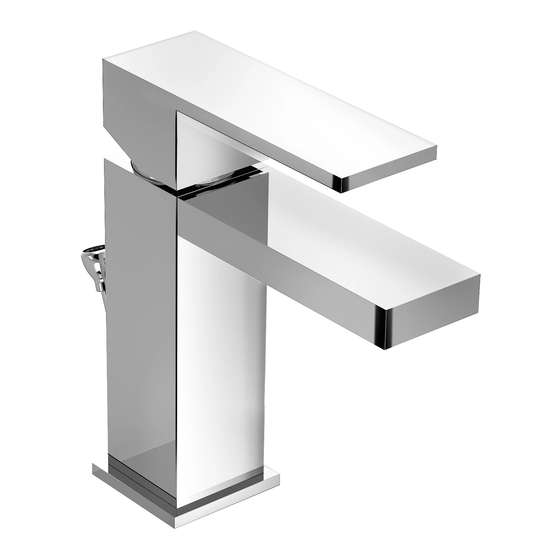

Duro Single Handle Lavatory Faucet (6-7/8" height)
☐
SLS-3622-1.5
Duro Single Handle Lavatory Faucet (4-1/2" height)
Modifications
☐
-0.5 0.5 gpm (1.9 L/min) aerator
CG
☐
-1.0 1.0 gpm (3.8 L/min) aerator
CG
Note: Append appropriate -suffix to model number.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
-WaterSense 1.5 gpm (5.7 L/min)
Dimensions
A A
C C
M M
C C
Note: Dimensions subject to change without notice.
c
Certi ed by
IAPMO R&T
E E
F F
B B
I I
G G
H H
D D
J J
L L
N N
P P
Q Q
I I
R R
O O
J J
L L
Specification
Single handle lavatory faucet featuring a single hole
mounting configuration. Includes ceramic cartridge,
nylon braided hoses with 3/8" compression fittings, metal
drain assembly and standard 1.5 gpm (5.7 L/min) aerator.
Components made from brass and nonmetallic materials
plated in standard
polished chrome finish.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
K K
S S
Measurements
A
1-11/16", 43 mm
B
6-11/16", 170 mm
Hole Size:
C
Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
D
3/16", 5 mm
E
4-7/16", 113 mm
F
8-7/16", 214 mm
G
6-7/8", 175 mm
H
5-5/16", 135 mm
I
12°
Deck Thickness Ref.
J
Min. 7/8", 22 mm
Max. 2-1/2", 64 mm
K
24", 610 mm
L
3/8" compression fitting
M
1-11/16", 43 mm
N
4-5/8", 118 mm
O
3/8", 9 mm
P
6-9/16", 167 mm
Q
4-1/2", 114 mm
R
3-1/2", 89 mm
S
25", 635 mm
