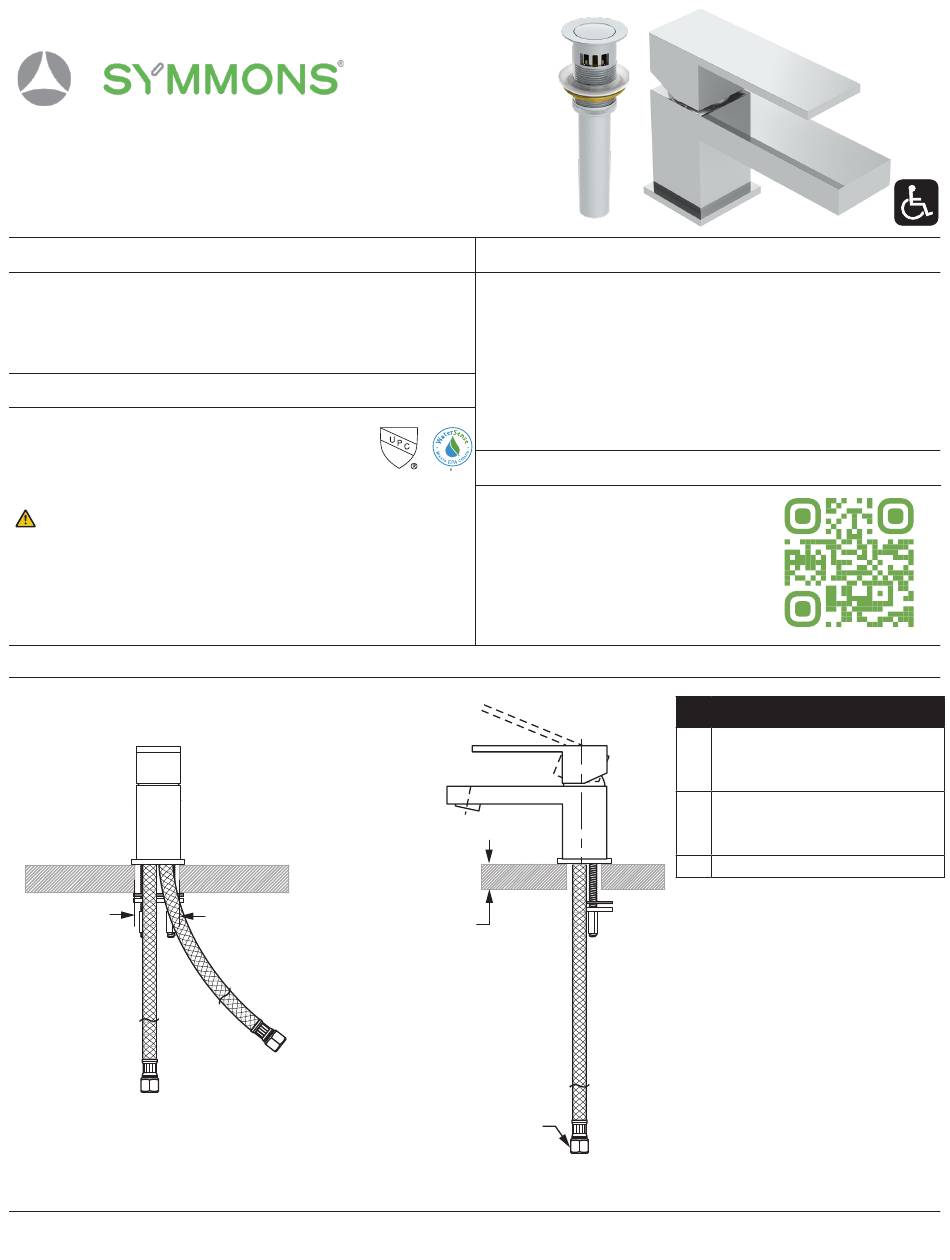

SLS3622PP
Single Handle Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
☐
SLS3622PP
Single Handle Lavatory Faucet with
Push Pop Drain Assembly
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
- WaterSense 1.0 gpm (3.8 L/min) only
WARNING: This product can expose you to
chemicals including lead, which is known to the
state of California to cause cancer, birth defects, or
other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
Dimensions
B
B
Note: Dimensions subject to change without notice.
Duro®
Feature Highlights
•
Single hole mount configuration
•
Single lever cartridge with ceramic control components
•
25 inch braided hose water supply connections
•
4-1/2" height
•
Standard 1.0 gpm (3.8 L/min) flow rate
•
Faucet shall be metal construction, plated in standard
polished chrome finish
c
Warranty
Certi ed by
IAPMO R&T
Limited Lifetime - to the original end
purchaser in consumer/residential
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
I
I
K
K
Measurements
Hole Size:
B
Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
Deck Thickness Ref.
I
Min. 7/8", 22 mm
Max. 2-1/2", 64 mm
K
3/8" compression fitting
