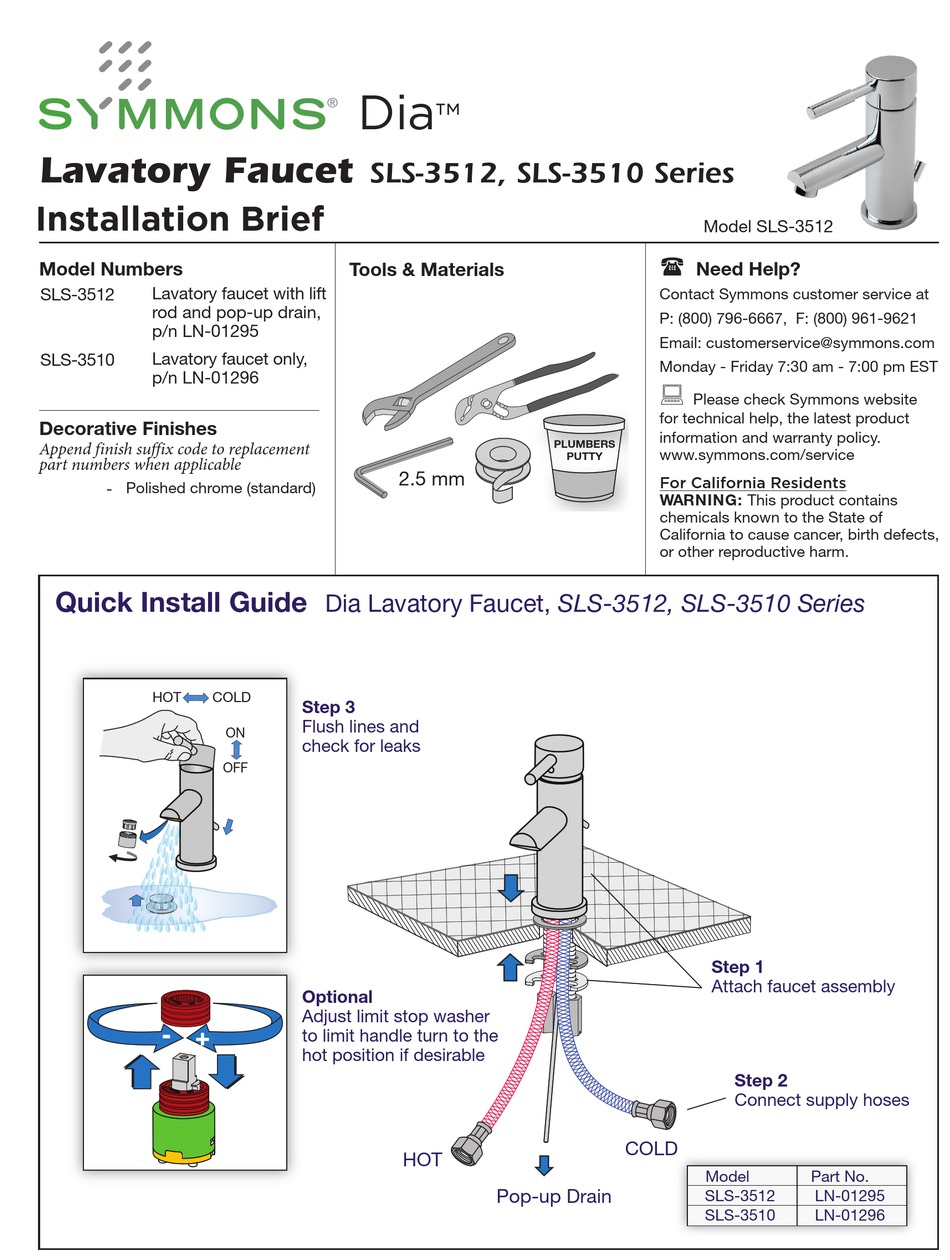

Lavatory Faucet
Installation Brief
Model Numbers
Lavatory faucet with lift
SLS-3512
rod and pop-up drain,
p/n LN-01295
Lavatory faucet only,
SLS-3510
p/n LN-01296
Decorative Finishes
Append finish suffix code to replacement
part numbers when applicable
- Polished chrome (standard)
Quick Install Guide
HOT
COLD
-
+
Dia
SLS-3512, SLS-3510 Series
Tools & Materials
2.5 mm
Dia Lavatory Faucet, SLS-3512, SLS-3510 Series
Step 3
Flush lines and
ON
check for leaks
OFF
Optional
Adjust limit stop washer
to limit handle turn to the
hot position if desirable
™
PLUMBERS
PUTTY
HOT
Pop-up Drain
Model SLS-3512
Need Help?
Contact Symmons customer service at
P: (800) 796-6667, F: (800) 961-9621
Email: customerservice@symmons.com
Monday - Friday 7:30 am - 7:00 pm EST
Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
For California Residents
WARNING: This product contains
chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Step 1
Attach faucet assembly
Step 2
Connect supply hoses
COLD
Model
SLS-3512
SLS-3510
Part No.
LN-01295
LN-01296
