Symmons Symmetrix SLS-2012 Series Installation Brief

Lavatory Faucet
Installation Brief
Model Numbers
SLS-2012... Lavatory faucet with lift rod
and pop-up drain assembly
p/n LN-01299
SLS-2011... Lavatory faucet with lift rod
p/n LN-01348
SLS-2010... Lavatory faucet only
p/n LN-01300

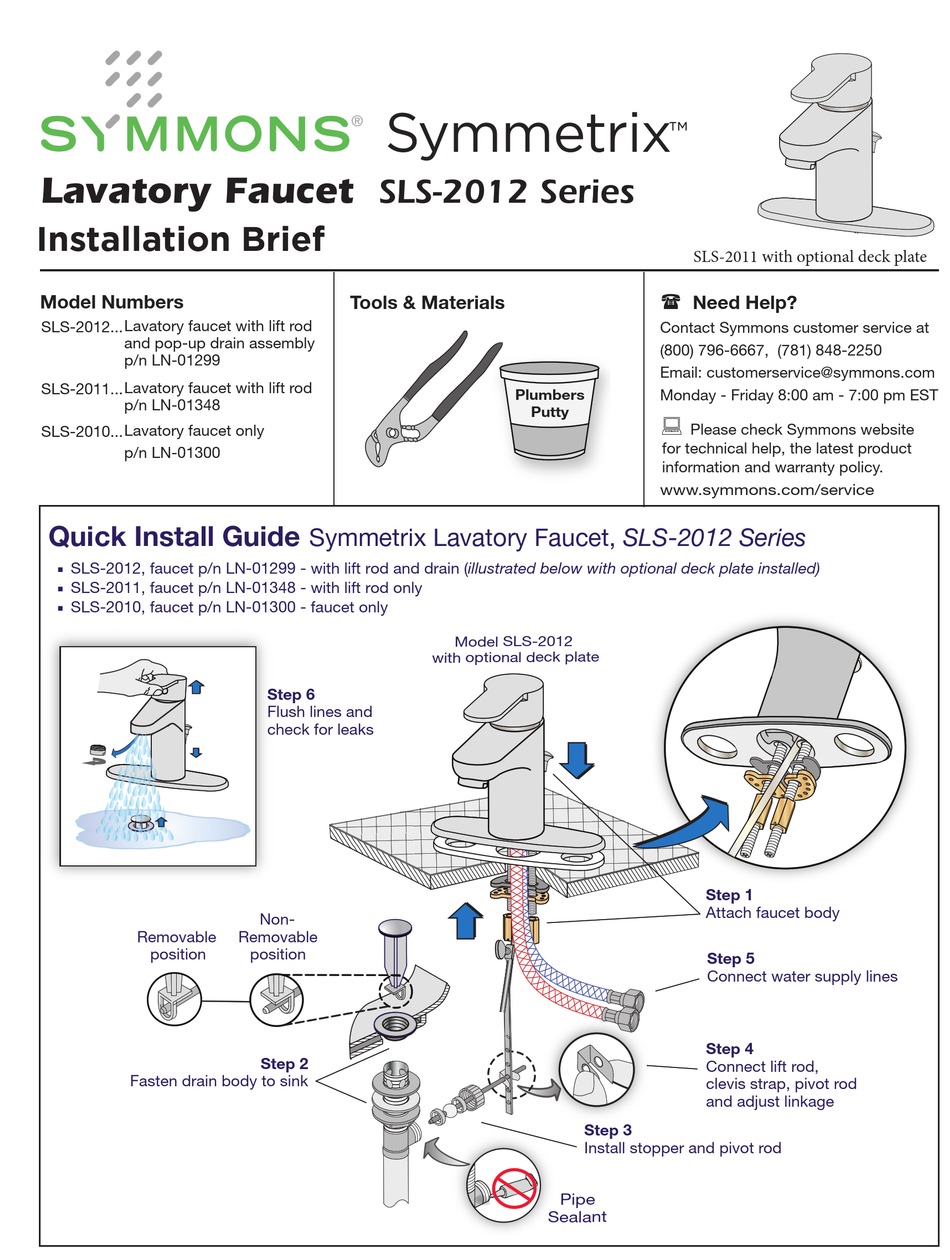

Quick Install Guide
SLS-2012, faucet p/n LN-01299 - with lift rod and drain (illustrated below with optional deck plate installed)
SLS-2011, faucet p/n LN-01348 - with lift rod only
SLS-2010, faucet p/n LN-01300 - faucet only
Removable
position
Fasten drain body to sink
Symmetrix
SLS-2012 Series
Tools & Materials
Symmetrix Lavatory Faucet, SLS-2012 Series
Step 6
Flush lines and
check for leaks
Non-
Removable
position
Step 2
™
SLS-2011 with optional deck plate
 Need Help?
Contact Symmons customer service at
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Plumbers Monday - Friday 8:00 am - 7:00 pm EST
Putty

Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Step 3
Install stopper and pivot rod
Step 1
Attach faucet body
Step 5
Connect water supply lines
Step 4
Connect lift rod,
clevis strap, pivot rod
and adjust linkage
