SLS5512PP
Single Handle Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
SLS5512PP

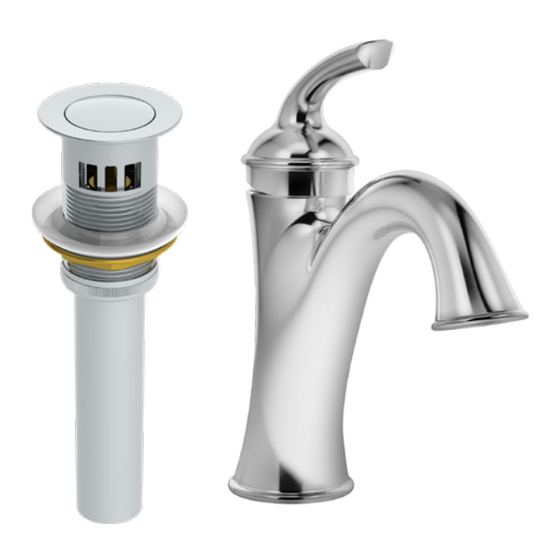

Single Handle Lavatory Faucet with A Push Pop
Drain Assembly
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
-WaterSense 1.0 gpm
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Dimensions
Dimensions
Note: Dimensions subject to change without notice.
Elm®
Certi ed by
CSA Group
Elm Single Handle Lavatory Faucet, SLS-5510-1.5
Faucet with copper supply tubes
Feature Highlights
•
Single post round lavatory faucet with swival lever
handle
•
Single hole deck mounting and optional 4 inch deck
plate
•
Commercial grade ceramic disc valve cartridge for drip
free performance
•
Push Pop-up drain assembly
•
3/8 inch copper supply lines with 1/2 inch IPS fittings
•
Aerator with standard 1.0 gpm flow rate (3.8 L/min)
•
Optional aerator available in lower flow rates
•
Metal construction
•
Polished chrome finish (standard)
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Elm SLS5512PP
Summary of Contents for Symmons Elm SLS5512PP
- Page 1 10 Years - for commercial/industrial CSA Group installations. Refer to WARNING: This product can expose you to chemicals www.symmons.com/warranty for complete warranty information. including lead, which is known to the state of California to cause cancer, birth defects, or other reproductive harm.
- Page 2 Parts Breakdown Replacement Parts Model SLS-5512-BH Series Item Description Part Number Handle Kit RL-041* Temperature Cartridge RL-042 Aerator and Wrench(2.2) LN-333-KIT Aerator and Wrench(1.5) FLR-102-1.5-KIT Aerator and Wrench(0.5) FLR-102-0.5 Mounting Hardware RL-040A Braided Hoses RL-007 Optional 4” Deck Plate includes Mounting LN-01934* Hardware Push Pop Drain Assem-...
- Page 3 Installation If replacing an older faucet ensure water supply is turned OFF before removing, then turn faucet control valve ON to relieve water pressure. DO NOT use pipe dope or thread sealant on drain assembly, or any plastic threaded components. 1) Shut off water supplies.
- Page 4 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3722 REV 0 021623...
