x-IMU3 User Manual v1.7
January 5, 2024

2.1.1 Serial header

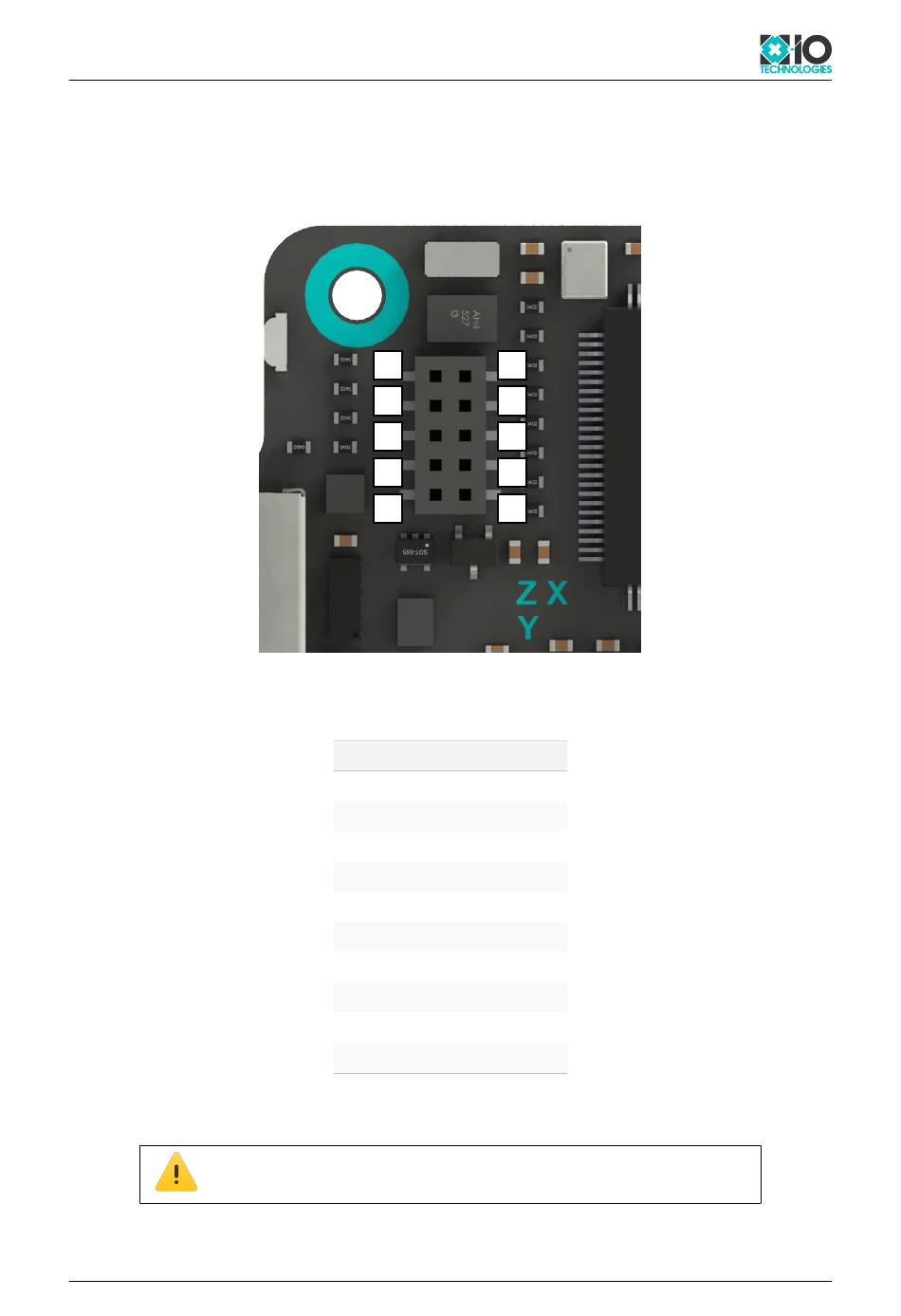

The serial header pinout is annotated in figure 2. The connector part number is "CLP-105-02-L-D". The
recommend mating connector part number is "FTS-105-03-F-DV".
Warning - Incorrect connections to the serial header may cause permanent
damage. This interface should only be used by an experienced engineer.
1
6
2
7
3
8
4
9
5
10
Figure 2: Serial header pinout
Pin
Name
Type
1
3.3V
Power
2
GND
Power
3
VBAT
Power
4
VBUS
Power
5
Button
Input
6
Serial override
Input
7
Serial RTS
Output
8
Serial CTS
Input
9
Serial RX
Input
10
Serial TX
Output
Table 1: Serial header pinout
8
