2 Hardware

2.1 Board

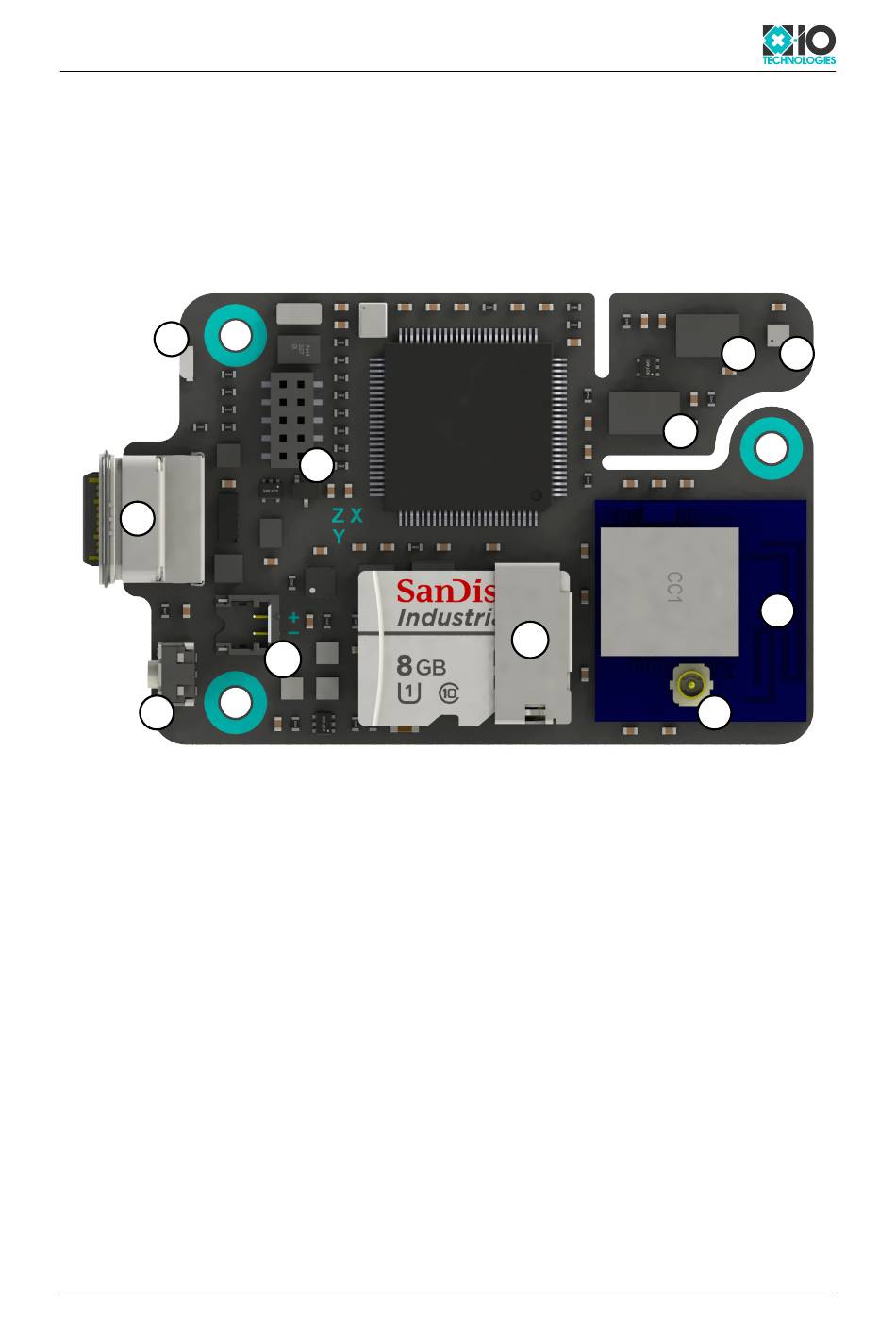

Board components are annotated in Figure 1. A detailed mechanical drawing describing the board dimensions
and locations of key components is available on the product
3
2
1
1. Power button
2. USB-C connector
3. LED
4. Serial header
5. High-g accelerometer
6. Inertial sensor (gyroscope and accelerometer)
7. Magnetometer
8. Wireless antennae
9. U.FL connector for external wireless antennae
10. microSD socket
11. Battery connector
4
11
Figure 1: Board
web page.
10
6 7
5
8
9
