Quick Reference
RPP051

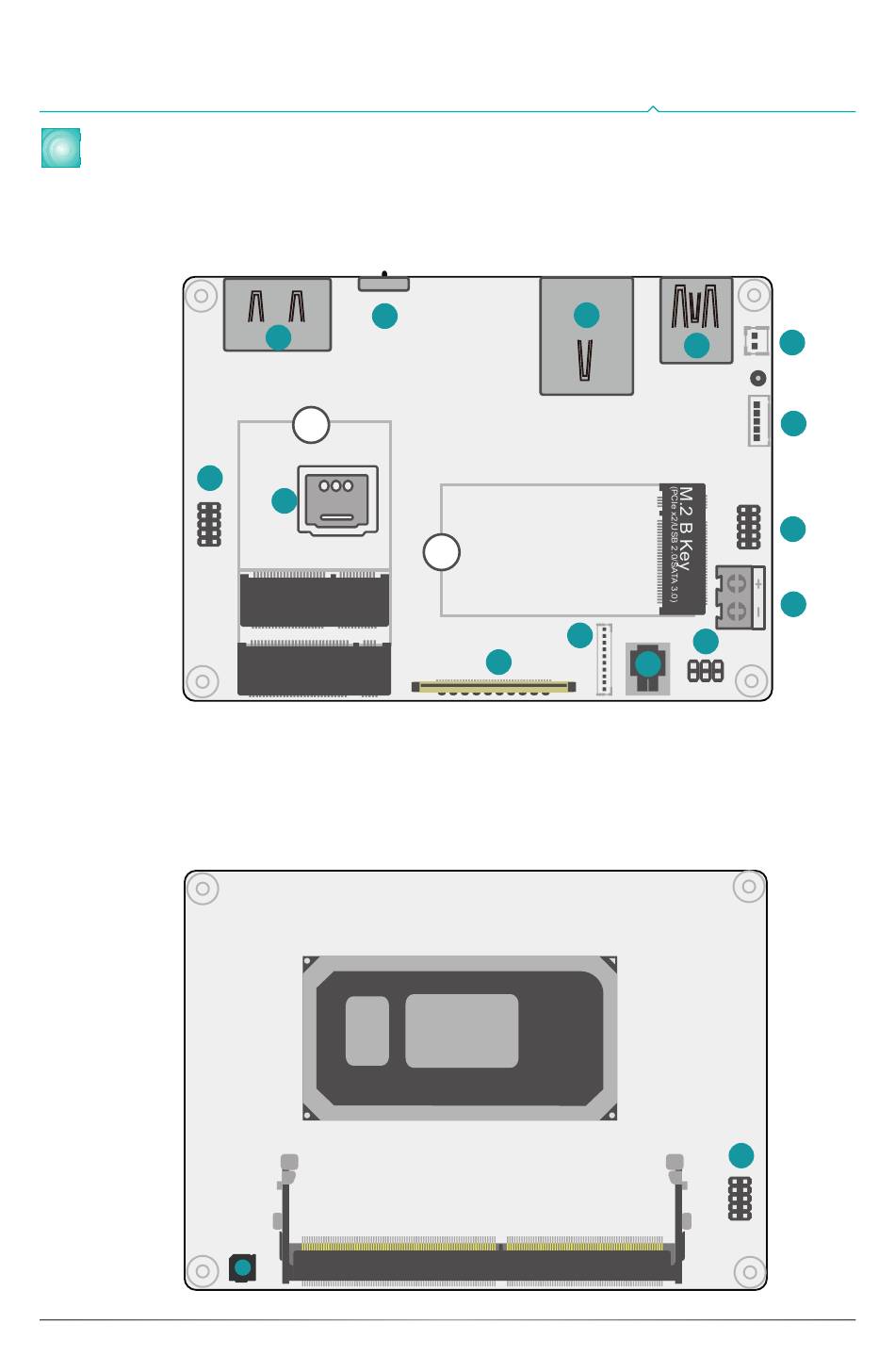

Board Layout
Top View
5
10
2
Bottom View
© November 10, 2023 DFI Inc.
2
1
6
9
1
M.2 E Key
M.2 B Key
(PCIe x1/USB 3.2 Gen1/ SATA 3.0)
DDR5 (SO-DIMM)
15
3
8
1
7
9
10
www.dfi.com
4
11
1
1
12
5
2
1
13
10
9
14
10
5
1
6
2
16
1
2
10
9
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RPP051 and is the answer not in the manual?

Questions and answers

Related Manuals for DFI RPP051

Summary of Contents for DFI RPP051

  • Page 1 Quick Reference RPP051 www.dfi.com Board Layout Top View M.2 E Key M.2 B Key (PCIe x1/USB 3.2 Gen1/ SATA 3.0) Bottom View DDR5 (SO-DIMM) © November 10, 2023 DFI Inc.
  • Page 2 DP++ TDP Switch Front Panel 2.5G LAN RTC Battery USB3.2 Gen2 SMBus COM1 USB2.0 SIM Card Slot 12V DC IN Buzzer Front Audio Quick Reference | RPP051...

  • Page 3: Pin Assignment

    PIN Assignment X RTC Battery (J1) Assignment Assignment RTC Signal X 12V DC IN (CN1) Assignment Assignment DC_IN X SMBus (J5) Assignment 3VSB I2C0_CLK I2C0_SDA I2C0_INT X Front Panel (J6) Assignment Assignment SIO_PWSIN# 3V3SB SUS_LED# SYSRST# HD_LED# Quick Reference | RPP051...
  • Page 4 X DIO (CN6) Assignment D_IOA7_C D_IOA6_C D_IOA5_C D_IOA4_C D_IOA3_C D_IOA2_C D_IOA1_C D_IOA0_C 5VSB X USB2.0 (UBJ1) Assignment Assignment 5V_USB2_56 5V_USB2_56 USB2_4_C_N USB2_3_C_N USB2_4_C_P USB2_3_C_P Quick Reference | RPP051...
  • Page 5 X Front Audio (AUJ1) Assignment Assignment MIC2_L AGND_AUDIO MIC2_R LINE2_R MIC2-JD AGND_AUDIO LINE2_L LINE2-JD X COM1 (TSJ1) Assignment Assignment MDCD1# MSIN1 MSOUT1 MDTR1# MDSR1# MRTS1# MCTS1# MRI1# Quick Reference | RPP051...
  • Page 6 X LAN1 (ETCN2) Assignment Assignment 225_LAN2_MDIP3 225_LAN2_MDIN3 225_LAN2_MDIP2 225_LAN2_MDIN2 225_LAN2_MDIP1 225_LAN2_MDIN1 225_LAN2_MDIP0 225_LAN2_MDIN0 225_LED2_LINK_ACT# 3V3SB 225_LED2_1000# 225_LED2_2500# X USB3.0 (UBCN1) Assignment Assignment 5V_USBA_12 USB2_1_C_N USB2_1_C_P USB3_1_C_RXN USB3_1_C_RXP USB3_1_C_TXN USB3_1_C_TXP 5V_USBA_12 USB2_2_C_N USB2_2_C_P USB3_2_C_RXN USB3_2_C_RXP USB3_2_C_TXN USB3_2_C_TXP Quick Reference | RPP051...
  • Page 7 X DP++ (CN11) Assignment DPA_LANE0_P_C DPA_LANE0_N_C DPA_LANE1_P_C DPA_LANE1_N_C DPA_LANE2_P_C DPA_LANE2_N_C DPA_LANE3_P_C DPA_LANE3_N_C DPA_AUX_SEL_COM DP2_CEC DPA_CLK_AUXP DPA_DATA_AUXN DPA_HPD_R Quick Reference | RPP051...
  • Page 8 X eDP (CN30) Assignment Assignment LVDS_PANEL_PWR +12V LVDS_PANEL_PWR +12V LVDS_PANEL_PWR +12V +12V eDPB_AUXN eDPB_AUXP DIMMING_1 eDPB_LANE0_C_P BLONOFF_1 eDPB_LANE0_C_N eDP_GND eDP_GND eDPB_LANE1_C_P eDP_GND eDPB_LANE1_C_N eDP_GND eDP_HPD_CON_1 eDPB_LANE2_C_P eDPB_LANE2_C_N eDPB_LANE3_C_P eDPB_LANE3_C_N LVDS_PANEL_PWR Quick Reference | RPP051...

  • Page 9: Switch Setting

    Note Note: To enable the latest setting, please reset to validate. DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the download page at www.dfi.com/...
