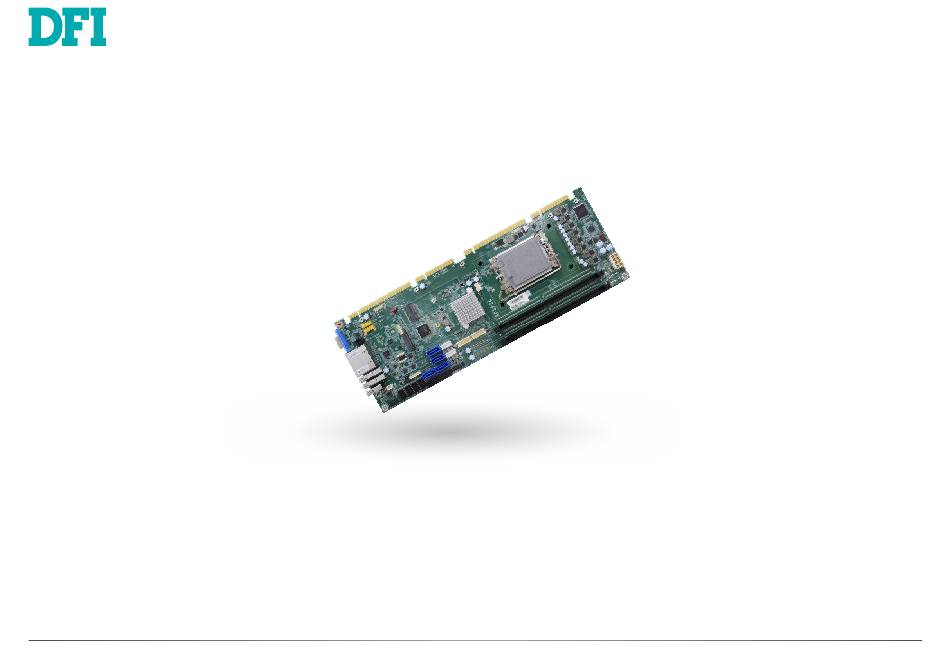

- Page 1 PRSPIC Full Size PICMG 1.3 User’s Manual © March 24, 2025 DFI Inc.
-
Page 2: Fcc And Doc Statement On Class B
1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | PRSPIC... -
Page 3: Table Of Contents
Overview ..........................32 Main ............................33 Advanced ..........................33 CPU Configuration ......................34 Power & Performance ....................34 Power & Performance ► CPU- Power Management Control ......35 ► GT- Power Management Control ......... 35 Power & Performance PCH-FW Configuration ....................36 User's Manual | PRSPIC... -
Page 4: About This Manual
• To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | PRSPIC... -
Page 5: About The Package
The board and accessories in the package may not come similar to the information listed above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative. User's Manual | PRSPIC... -
Page 6: Chapter 1 - Introduction
G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W ® Intel G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W ® Intel G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W ® Intel G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W ® User's Manual | PRSPIC... - Page 7 4K60 10b 4:4:4 HEVC/VP9/SCC 4K60 8b 4:2:0 AVC Display 1x VGA 2x DFI display extension port (DP/HDMI/VGA available) VGA: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 1920x1080 @ 60Hz DP: resolution up to 1920x1200 @ 60Hz Triple Displays...
- Page 8 4 x USB 3.2 Gen 1 BOX, 4 x USB 2.0 (2x5 2.0mm pitch header) 4 x USB 2.0 (2x5 2.0mm pitch header) Display 2 x DFI display extension port (DP/HDMI/VGA available) Audio 1 x Front Audio Header (1 x Line-out, 1 x Mic-in) SATA 6 x SATA 3.0 (up to 6Gb/s)
- Page 9 MTBF MECHANISM Dimensions Full Size PICMG 1.3 Height PCB: 1.6mm TOP Side : 19.85mm TOP Side with cooler: 71.20mm BOT side: 2.35mm BOT side with cooler: 5.90mm STANDARDS AND CERTIFICATIONS Certifications CE, FCC Class B, RoHS User's Manual | PRSPIC...
-
Page 10: Block Diagram
Chapter 1 INTRODUCTION X Dimension X Block Diagram User's Manual | PRSPIC... -
Page 11: Chapter 2 - Hardware Installation
CPU Fan USB2.0 Front Panel Buzzer LPT Port For Intel ® H610E Chipset RTC Battery RS232_422_485_COM1 Clear CMOS RS232_422_485_COM2 USB2.0 RS232_COM3 USB3.2 Gen2 RS232_COM4 USB3.2 Gen2 Audio 2.5G LAN EXT-DDI Power EXT-DDI Power SATA2 (R6) SATA5 (R4) User's Manual | PRSPIC... -
Page 12: Installing The Heat Sink
4 mounting holes around the board. 3. Screw tight two of the spring screws at opposite corners into the mounting holes. And then proceed with the other two spring screws. Mounting holes Mounting holes User's Manual | PRSPIC... -
Page 13: Jumper Settings
Chapter 2 HARDWARE INSTALLATION X Jumper Settings ATX/AT Mode Select (SOJP26) „ 2-3 On: AT Mode „ 1-2 On: ATX Mode (Default) User's Manual | PRSPIC... -
Page 14: Pin Assignment
Chapter 2 HARDWARE INSTALLATION X Pin Assignment RTC Battery (J4) Case Open (SOJ1) Assignment Assignment Battery CASEOPEN# User's Manual | PRSPIC... -
Page 15: Clear Cmos (Sw1)
Chapter 2 HARDWARE INSTALLATION Clear CMOS (SW1) ATX/AT Mode Select (SOJP26) Assignment Assignment 3V3SB RTC RESET SOUT5 User's Manual | PRSPIC... -
Page 16: M.2_M-Key Power Select (M2Jp31)
Chapter 2 HARDWARE INSTALLATION M.2_M-KEY Power Select (M2JP31) System Fan (J7) Assignment Assignment SYSFANOUT1 3V3_MINI_1 SYSFANIN1 3V3DU User's Manual | PRSPIC... -
Page 17: Ext-Ddi Power (Dpcn1)
Chapter 2 HARDWARE INSTALLATION EXT-DDI Power (DPCN1) CPU Fan (J8) EXT-DDI Power (DPCN2) EXT-DDI Power (DPCN1) EXT-DDI Power (DPCN2) Assignment Assignment +12V +12V CPUFANIN CPUFANOUT User's Manual | PRSPIC... -
Page 18: Smbus/I2C (J37)
Chapter 2 HARDWARE INSTALLATION SMBUS/I2C (J37) ATX_8 PIN (CN2) Assignment Assignment 3V3DU SMB_CLK_RESUME SMB_DATA_RESUME AUX12V SMBALERT_PCH- AUX12V I2C2_SCL AUX12V I2C2_SDA AUX12V I2C2_INT User's Manual | PRSPIC... -
Page 19: Audio (Auj2)
SATA0 (J32) SATA1 (J23) Audio (AUJ2) SATA2 (J17) SATA3 (J46) SATA4 (J47) SATA5 (J31) SATA2 (J17) SATA5 (J31) Assignment Assignment SATA4 (J47) SATA1 (J23) SATA3 (J46) SATA0 (J32) MIC2-L AUD_GND MIC2-R LINE2-R MIC2-JD JD3_P7 LINE2-L LINE2-JD User's Manual | PRSPIC... -
Page 20: Usb2.0 (Ubj2)
Chapter 2 HARDWARE INSTALLATION USB2.0 (UBJ2) USB2.0 (UBJ3) Assignment Assignment SBV5 SBV5 SBV5 SBV5 USB2_1_HUB_C_N USB2_3_HUB_C_N USB2_2_HUB_C_N USB2_4_HUB_C_N USB2_1_HUB_C_P USB2_3_HUB_C_P USB2_2_HUB_C_P USB2_4_HUB_C_P User's Manual | PRSPIC... -
Page 21: Dio (Soj3)
Chapter 2 HARDWARE INSTALLATION DIO (SOJ3) Front Panel (J18) Assignment Assignment DI_3 V_SUS_LED DI_2 DI_1 V_SUS_LED DI_0 HD_LED DO_3 SUS_LED DO_2 DO_1 SYSTEM_RESET DO_0 Power Button 5VDU User's Manual | PRSPIC... -
Page 22: Rs232_422_485_Com1 (Tsj25)
Chapter 2 HARDWARE INSTALLATION RS232_422_485_COM1 (TSJ25) RS232_COM3 (TSJ27) Assignment Assignment MDCD1# MDCD3- MSIN3- MSIN1 MSOUT1 MSO3- MDTR1# MDTR3- MDSR3- MDSR1# MRTS1# MRTS3- MCTS3- MCTS1# MRI3- MRI1# User's Manual | PRSPIC... -
Page 23: Rs232_Com4 (Tsj28)
Chapter 2 HARDWARE INSTALLATION RS232_COM4 (TSJ28) RS232_422_485_COM2 (TSJ53) Assignment Assignment MDCD2# MDCD4- MSIN2 MSIN4- MSOUT2 MSO4- MDTR2# MDTR4- MDSR4- MDSR2# MRTS2# MRTS4- MCTS4- MCTS2# MRI2# MRI4- User's Manual | PRSPIC... -
Page 24: Espi (J1)
Chapter 2 HARDWARE INSTALLATION eSPI (J1) Assignment 3V3DU ESPI_RST ESPI_ALERT1 ESPI_IO_0 ESPI_IO_1 ESPI_IO_2 ESPI_IO_3 ESPI_CLK ESPI_CS0 UART1_RX UART1_TX User's Manual | PRSPIC... -
Page 25: Usb3.2 (Ubj44)
Chapter 2 HARDWARE INSTALLATION USB3.2 (UBJ44) Assignment SBV2 USB3_RX3_DN USB3_RX3_DP USB3_TX3_DN USB3_TX3_DP USBP_C_10N USBP_C_10P USBP_C_11P USBP_C_11N USB3_TX4_DP USB3_TX4_DN USB3_RX4_DP USB3_RX4_DN SBV2 User's Manual | PRSPIC... -
Page 26: Usb3.2 (Ubj45)
Chapter 2 HARDWARE INSTALLATION Assignment USB3.2 (UBJ45) SBV3 USB3_RX5_DN USB3_RX5_DP USB3_TX5_DN USB3_TX5_DP USBP_C_12N USBP_C_12P USBP_C_13P USBP_C_13N USB3_TX6_DP USB3_TX6_DN USB3_RX6_DP USB3_RX6_DN SBV3 User's Manual | PRSPIC... -
Page 27: Ext-Ddib (Dpj1)
Chapter 2 HARDWARE INSTALLATION EXT-DDIB (DPJ1) Assignment DPB_LANE1_N DPB_LANE2_N DPB_LANE1_P DPB_LANE2_P DPB_LANE0_P DPB_LANE3_N DPB_LANE0_N DPB_LANE3_P DDIB_AUX_DP DDPB_CTRLCLK_EXT DDIB_AUX_DN DDPB_CTRLDATA_EXT PCH_SYSPWROK DDPB_HPD DPB_POWER User's Manual | PRSPIC... -
Page 28: Ext-Ddic (Dpj2)
Chapter 2 HARDWARE INSTALLATION Assignment EXT-DDIC (DPJ2) DPC_LANE1_N DPC_LANE2_N DPC_LANE1_P DPC_LANE2_P DPC_LANE0_P DPC_LANE3_N DPC_LANE0_N DPC_LANE3_P DDIC_AUX_DP DDPC_CTRLCLK_EXT DDIC_AUX_DN DDPC_CTRLDATA_EXT PCH_SYSPWROK DDPC_HPD DPC_POWER User's Manual | PRSPIC... -
Page 29: Lpt Port (Soj4)
Chapter 2 HARDWARE INSTALLATION Assignment STB- AFD- PD_C_0 LPT Port (SOJ4) ERP_WAKE- PD_C_1 P_INIT- PD_C_2 SLIN- PD_C_3 PD_C_4 PD_C_5 PD_C_6 PD_C_7 ACK- BUSY SLCT User's Manual | PRSPIC... -
Page 30: Expansion Slots
4. Make sure the notch on card is aligned to the key on the socket. 5. Make sure the standoff screw is removed from the standoff. M.2 Module M.2 Socket Stand-off Notch M.2 A-Key M.2 E-Key M.2 M-Key User's Manual | PRSPIC... - Page 31 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | PRSPIC...
-
Page 32: Chapter 3 - Bios Settings
“Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | PRSPIC... -
Page 33: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | PRSPIC... -
Page 34: Cpu Configuration
Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy. Select disabled for other OSes not optimized for Hyper-Threading technology. When dis- abled, only one thread per enabled core is enabled. Enable / Disable AES (Advanced Encryption Standard). User's Manual | PRSPIC... -
Page 35: Power & Performance ► Cpu- Power Management Control
Check to enable render standby support. Enable/Disable processor Turbo Mode (requires EMTTM enabled too). AUTO means enabled. C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | PRSPIC... -
Page 36: Pch-Fw Configuration
MEBx Setup. This option does not disable manageability features in FW. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. Firmware Update Configuration Firmware Update Configuration Configure Management Engine Technology Parameters. User's Manual | PRSPIC... -
Page 37: It8786 Super Io Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced IT8786 Super IO Configuration IT8786 Super IO Configuration ► Serial Port 1, 2 Configuration Serial Port Enable or disable serial port. User's Manual | PRSPIC... -
Page 38: It8786 Super Io Configuration ► Serial Port 3, 4 Configuration
BIOS SETTINGS Advanced Advanced IT8786 Super IO Configuration ► Serial Port 3, 4 Configuration IT8786 Super IO Configuration ► Parallel Port Configuration Serial Port Enable or disable serial port. Serial Port Enable or disable serial port. User's Manual | PRSPIC... -
Page 39: It8786 Hardware Monitor
► Smart FAN Function This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting. Case Open Enable or disable the case open detection function. User's Manual | PRSPIC... -
Page 40: It8786 Hw Monitor ► Smart Fan Function ► Cpu Fan Setting
Fan full speed temperature limit Fan will be full speed when the temperature is higher than this limit. Fan start PWM Fan will start with this PWM value. IT8786 HW Monitor ► Smart FAN Function ► SYS_FAN1 Setting User's Manual | PRSPIC... -
Page 41: Serial Port Console Redirection
Serial Port Console Redirection Serial Port Console Redirection ► Console Redirection Settings Console Redirection By enabling Console Redirection of a COM port, the sub-menu of console redirection settings will become available for configuration as detailed in the following. User's Manual | PRSPIC... -
Page 42: Acpi Settings
(G3 state). • S0 State The system automatically powers on after power failure. • S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. User's Manual | PRSPIC... -
Page 43: Network Stack Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | PRSPIC... -
Page 44: Dfi Wdt Configuration
USB Power Control DFI WDT Configuration Server CA Configuration Watchdog Timer 5_Dual: Support system wake up from S3/S4 by USB KB&MS. Enable or disable Watchdog Timer. 5V: No support system wake up from S3/S4 by USB KB&MS. User's Manual | PRSPIC... -
Page 45: Tls Auth Configuration
Chapter 3 BIOS SETTINGS Advanced X Chipset Tls Auth Configuration Server CA Configuration Please select a submenu and press Enter. The submenus are detailed in the following pages. Press <Enter> to configure Server CA. User's Manual | PRSPIC... -
Page 46: System Agent (Sa) Configuration
Settings about graphic. Select which graphics device should be primary display. Internal Graphics VMD setup menu Keep IGFX enabled based on the setup options. VMD Configuration Settings. PCI Express Configuration PCI Express Configuration Settings. VT-d VT-d capability. User's Manual | PRSPIC... -
Page 47: System Agent (Sa) Configuration
► PCI Express Configuration System Agent (SA) Configuration ► VMD setup menu Compliance Test Mode Enable VMD Controller Enable/Disable to VMD controller. Enable when using compliance Load Board. M.2-M M.2-M Port Settings. PCIE1 PCIE1 Port Settings. User's Manual | PRSPIC... -
Page 48: Pch-Io Configuration
PCI Express Configuration Settings. M.2-E, LAN1, LAN2, ASM1085, PCI Express Root Port 5, 6, 7, 8 SATA Configuration Control the PCI Express Root Port. SATA Device Otpions Settings. HD Audio Configuration HD Audio Subsystem Configuration Settings. User's Manual | PRSPIC... -
Page 49: Configuration► Sata Configuration
HDA will be unconditionally disabled. This field is used to select SATA speed generation limit: Auto, Gen1, Gen2 or Gen3. Ports • Enabled HDA will be unconditionally enabled. Enable or disable the Serial ATA port function. User's Manual | PRSPIC... -
Page 50: Security
Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. Expert Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. User's Manual | PRSPIC... -
Page 51: Boot
Select this option to save BIOS configuration settings to a USB flash device. • Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set-ting from the USB flash device. User's Manual | PRSPIC... -
Page 52: Updating The Bios
MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | PRSPIC...
