Sumake FAW060 Operation Manual

Sumake FAW060 Operation Manual

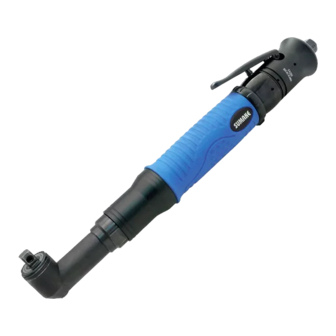

Shut off air composite wrench 3/8" square anvil (angle type-lever start)

Advertisement

Quick Links

SUMAKE
Shut Off Air Composite Wrench 3/8" Square Anvil
Free
Speed
MODEL
r/min
FAW060
2200
FAW075
1000
FAW110
550
FAW180
300
FAW280
250
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
(Angle Type-Lever Start)
Specification:
Torque range
Min. air hose bore
(±3%)
Nm
Kgf-cm
6kg/cm
2-6
20-60
1.2-7.5
12-75
3-11
30-110
3-18
30-180
5-28
50-280
PNEUMATIC TOOLS
Vibration
(mm)
EN ISO 28927-2
5kg/cm
²
²
8.0
9.5
No Load : 0.8 m/s²
8.0
9.5
No Load : 1.0 m/s²
8.0
9.5
No Load : 0.9 m/s²
8.0
9.5
No Load : 0.9 m/s²
8.0
9.5
No Load : 0.9 m/s²
Uncertainty K= 1.5
Noise and Vibration:
Noise
EN ISO 15744
Sound pressure level
No Load : 75 dB(A)
No Load : 74 dB(A)
No Load : 74 dB(A)
No Load : 74 dB(A)
No Load : 74 dB(A)
Uncertainty K= 3dB
m/s²
FAW060(075)(110)(180)(280)-S-1406B-MIF
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAW060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake FAW060

  • Page 1 FAW280 5-28 50-280 No Load : 0.9 m/s² No Load : 74 dB(A) hearing! Uncertainty K= 1.5 Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 3dB m/s² FAW060(075)(110)(180)(280)-S-1406B-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: SHUT OFF AIR COMPOSITE WRENCH 3/8" SQUARE ANVIL (ANGLE TYPE-LEVER START) Model/ Serial No.: FAW060(075)(110)(180)(280) to which this declaration applies, complies with these normative documents: ...
  • Page 3: Air Supply

    OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter and lubricator in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
  • Page 4 FAW280 SHUT OFF AIR COMPOSITE WRENCH 3/8" SQUARE ANVIL (ANGLE TYPE-LEVER START) FAW280-P-2108D-MI...
  • Page 5: Parts List

    O Ring 1S6061 Internal Gear 5L3106 Lever 4W6023 Aluminum Ring 7S2202 Roll pin 5A6070 Center Housing 2A6030 Reduction Ring 8E9963 SUMAKE Logo Plate 7S2113 Screw 7S6503 Ball Bearing 7Q6105 O Ring 6N2006 C Ring 2P3040 Silencer 2S6106 Retainer 2P3021 Silencer...
  • Page 6: Impact Wrench

    IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
  • Page 7 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 8 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
  • Page 9: Risk Of Injury

    General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.

This manual is also suitable for:

Faw075Faw110Faw180Faw280
