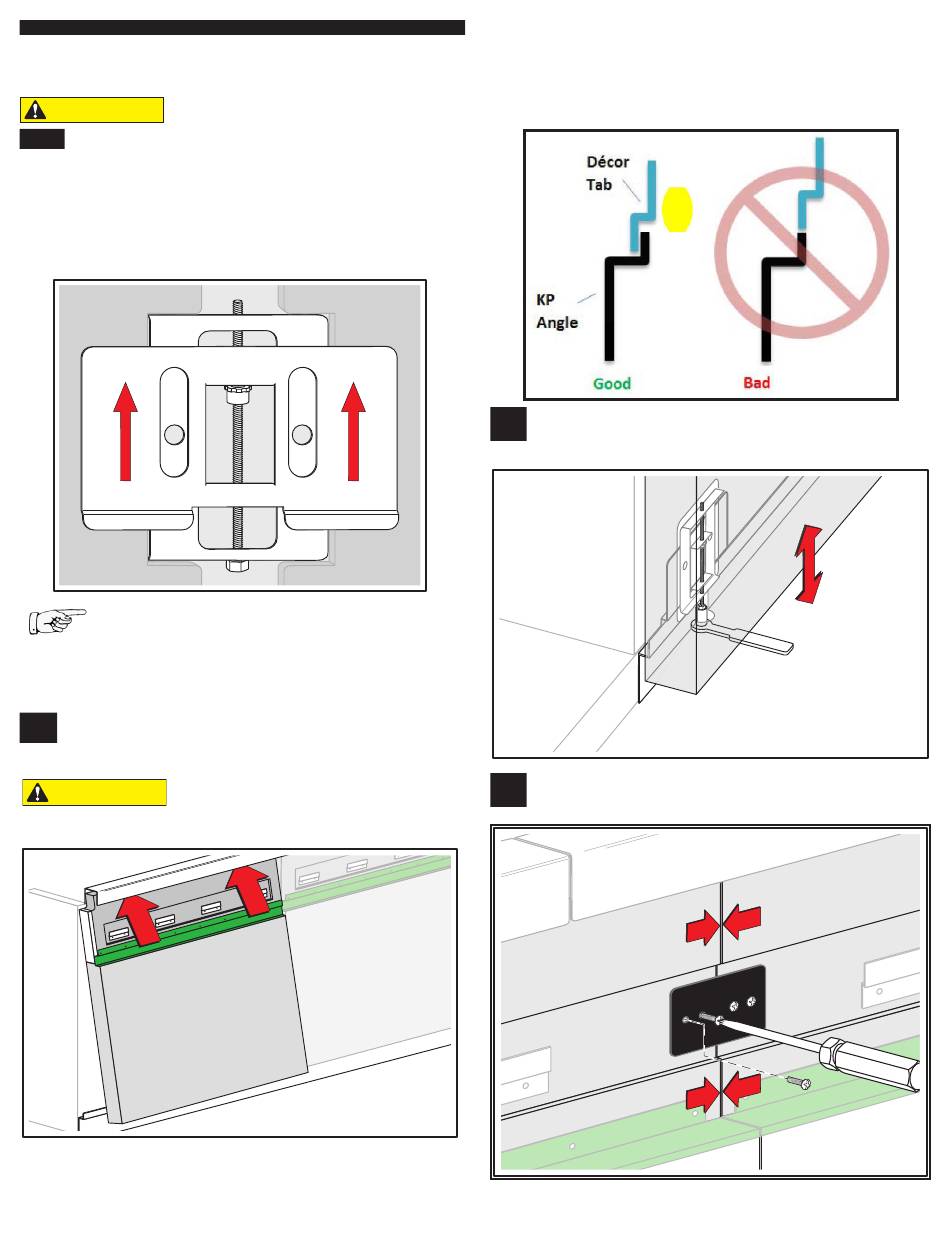

Duke FLM200 Instruction Sheet page 7

INSTALLATION OF NEW LIGHT/GASKET - cont.
CAUTION
Damage/Injury could result if two persons are not used for this Installation.
Ensure all brackets on back of panel are
17
adjusted as shown on the right. It is adjusted
correctly when you can see the open center (where
the bolt is) with the lower flange up above (see Red
arrows).
NOTE: (3/8" From bottom of bracket to offset)
NOTE: The adjustment bracket allows
the decor panel to sit on the kick plate
angle when installing the front panel and during
adjustment.
Slide the panel up into the channel at the top
18
of the unit. Using the brackets hang the panel
on the metal lip at the bottom of the unit.
CAUTION
Pull on bottom of panel to ensure
engagement with bracket.
Installation and Operation of: Product Name
Using a Socket and ratchet adjust the panel to
19
be flush against the top.
Install the mending plate in the middle if
20
needed.
7
