FS-1300 Combination Fire/Smoke Damper Installation
!
DANGER: To avoid causing death or
serious bodily harm to building
occupants, follow all instructions
carefully. Dampers must close
completely to preserve the
integrity of the fire barrier.
I
tems Needed
•
screwdriver, flat-blade
•
nut driver, 1/2 inch socket
•
open-end wrench, adjustable to 1 inch
G
eneral
Note:
For further information, refer to
UL File No. R11172 and
CSFM3230-0554:128.
The FS-1300 Combination Fire/Smoke Leakage-rated
Life Safety Damper is designed to restrict the passage
of flame or smoke when in the closed position, under
dynamic or static conditions.
After installation, when power (electric or pneumatic) is
applied to the actuator, the damper blades will be
driven to the open position by the actuator.
When the primary temperature sensor detects heat, it
breaks power to the actuator, closing the damper
blades through the spring-return mechanism of the
actuator. The damper is now in the smoke protection
mode (damper closed via actuator).
If the air temperature reaches the fusible link
temperature (secondary temperature sensor), the link
separates. The damper linkage disengages from the
actuator, allowing the blades to close by a torsion
spring. The damper is now in fire protection mode
(damper closed via torsion spring).
FS-1300 Combination Fire/Smoke Dampers are
approved for mounting in fire walls constructed of
masonry or gypsum wallboard (metal or wood studs)
and in cement floors or ceilings.
© 1999 Johnson Controls, Inc.
Part No. 44-352-29, Rev. —
Code No. LIT-2681195
1-1/2 Hour/Class II Leakage
Damper and Actuator Product Guide 268.1

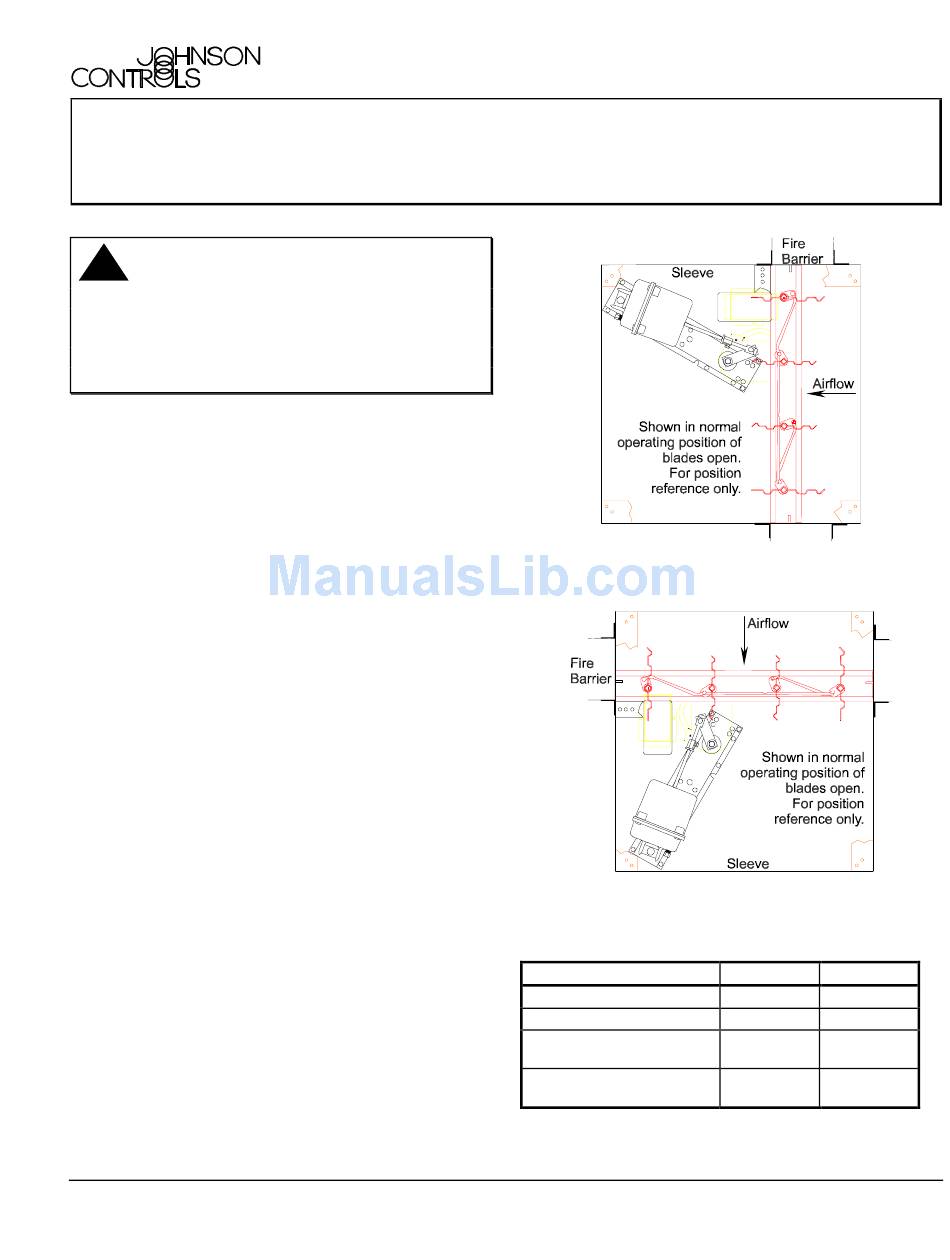

Figure 1: Wall Mounting
Figure 2: Floor/Ceiling Mounting
Table 1: Damper Size Limits
Size Limits
Minimum
Maximum Single Panel
Damper Maximum
(Wall Installation)
Damper Maximum
(Floor Installation)
Note: FS-1300 size limits are a function of past UL tests.
Actual damper size is 1/4 inch less than nominal.
Fire/Smoke Section
Installation Bulletin FS-1300
Issue Date 0499
Width, in.
Height, in.
15
14
32
48
64
96
64
72
www.johnsoncontrols.com
1
Advertisement
Related Manuals for Johnson Controls FS-1300
Summary of Contents for Johnson Controls FS-1300
- Page 1 FS-1300 Combination Fire/Smoke Dampers are (Floor Installation) approved for mounting in fire walls constructed of Note: FS-1300 size limits are a function of past UL tests. masonry or gypsum wallboard (metal or wood studs) Actual damper size is 1/4 inch less than nominal.
- Page 2 4.5, 8.5, FS-1300 dampers include an 18-gauge galvanized or 12.5 steel sleeve, 24-inch-long, which is used for a 6 inch or less fire barrier standard. Any barrier larger than 6 inches requires an optional 32-inch-long sleeve length. All dampers include an identification label providing the following information: •...
- Page 3 D am pe r fire barrier, and are provided with the FS-1300 Combination Fire/Smoke Leakage-rated Damper. The mounting angles are precut to be installed so that two sides extend past the other side (Figure 9 shows one corner), allowing no gaps to exist.
- Page 4 Remove the cover. 11. The ducts connecting to the sleeves shall be equal 2. Remove the knock-out from the side of the or less than the sleeve thickness. All FS-1300 actuator. sleeves are 18-gauge galvanized steel. 3. Attach the conduit connector though the hole and install the wires to the actuator.
- Page 5 2. Copper tubing must be used and looped to allow Actuator w/auxiliary switch pivoting of the actuator. DMPR-RS301 165°F temperature sensor DMPR-RS302 212°F temperature sensor DMPR-RS303 250°F fusible link DMPR-RS304 350°F fusible link FS-1300 Combination Fire/Smoke Damper Installation Bulletin 5...
- Page 6 Table 3: FS-1300 Dynamic Rating - Electric Actuator Width x Height, in. Mounting Ordering Maximum Maximum SP, Actuator, Tested as Code Flow, in. WG** Matched Set with fpm* Damper (350°F) Minimum: 15 x 14 Wall or Ceiling TOVLE, DMPR-S60120, Maximum: 32 x 48...
- Page 7 AMCA Standard for Test Methods for Louvers, Dampers, and Shutters No. 500-89. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
- Page 8 Notes Controls Group www.johnsoncontrols.com 507 E. Michigan Street FAN 268.1 P.O. Box 423 Damper and Actuator Product Guide Milwaukee, WI 53201 Printed in U.S.A. FS-1300 Combination Fire/Smoke Damper Installation Bulletin...
