Installation Instructions
1. INTRODUCTION
The TOWER 32 AM PG2 and TOWER 32 AM K9-90 PG2 (pet-immune) Dual Technology are 2-way,
microprocessor-controlled, wireless digital mirror PIR detectors interfacing with PowerMaster-10 and
PowerMaster-30 control panels (version 16 and higher) and which include the following features:
• Adaptive Active Infra-Red Anti-Masking technology providing the most advanced reliable protection
against intentional masking attempts (patent pending)
• Includes a fully supervised PowerG transceiver.
• 24 GHz K-band microwave module.
• Incorporates patent pending black mirrors for extremely high white light immunity.
• Advanced elliptical / parabolic mirror technology (patent pending)
• Provides multiple curtain coverage (patent pending)
• V-slot® optic technology (patent pending) for improved robustness, anti-vandalism and for very high reliability.
• Creep zone protection
• TOWER 32 AM K9-90 PG2 can distinguish between human beings and pets weighing up to
• The advanced True Motion Recognition™ algorithm (patented) allows distinguishing between the true
motion of an intruder and any other disturbances which may cause false alarms.
• Built-in auto diagnostic for both PIR and microwave detectors.
• Built-in link quality indicators; no need for the installer to physically approach the control panel thus
making installation faster and easier.
• No vertical adjustment is needed.
• Motion event counter determines whether 1 or 2 consecutive motion events will trigger an alarm.
• Automatic termination of walk-test after 15 minutes.
• Microprocessor controlled, digital TMR signal processing with dual-slope digital temperature compensation.
• Sealed chamber protects the optical system.
• Front and back tamper protection.
• Microwave anti-masking
• Disguise mode that detects an intruder who cloaks his IR radiation.
2. INSTALLATION
2.1 General Guidance
1. Keep away from heat sources.
2. Do not expose to air drafts.
3. Do not install outdoors.
4. Avoid direct sunshine.
5. Keep wiring away from power cables.
6. Do not install behind partitions.
7. Mount on solid stable surface.
8. Install the detector in an upright position.
WARNING! Do not partially or completely obscure the detector's
field of view.
WARNING! To comply with FCC and IC RF exposure compliance
requirements, the PIR detector should be located at a distance of
at least 20 cm from all persons during normal operation. The
antennas used for this product must not be co-located or operated
in conjunction with any other antenna or transmitter.
D-303780 TOWER 32 AM PG2, TOWER 32 AM K9-90 PG2 Installation Instructions
TOWER 32 AM PG2 /
TOWER 32 AM K9-90 PG2
Wireless PowerG, Dual Technology, Mirror, PIR Motion Detector with Anti-mask
(see Fig. 2)
40 kg (90 lb) .
A. Screw cover
B. LED
C. PIR optical window
1 2
4 5
7

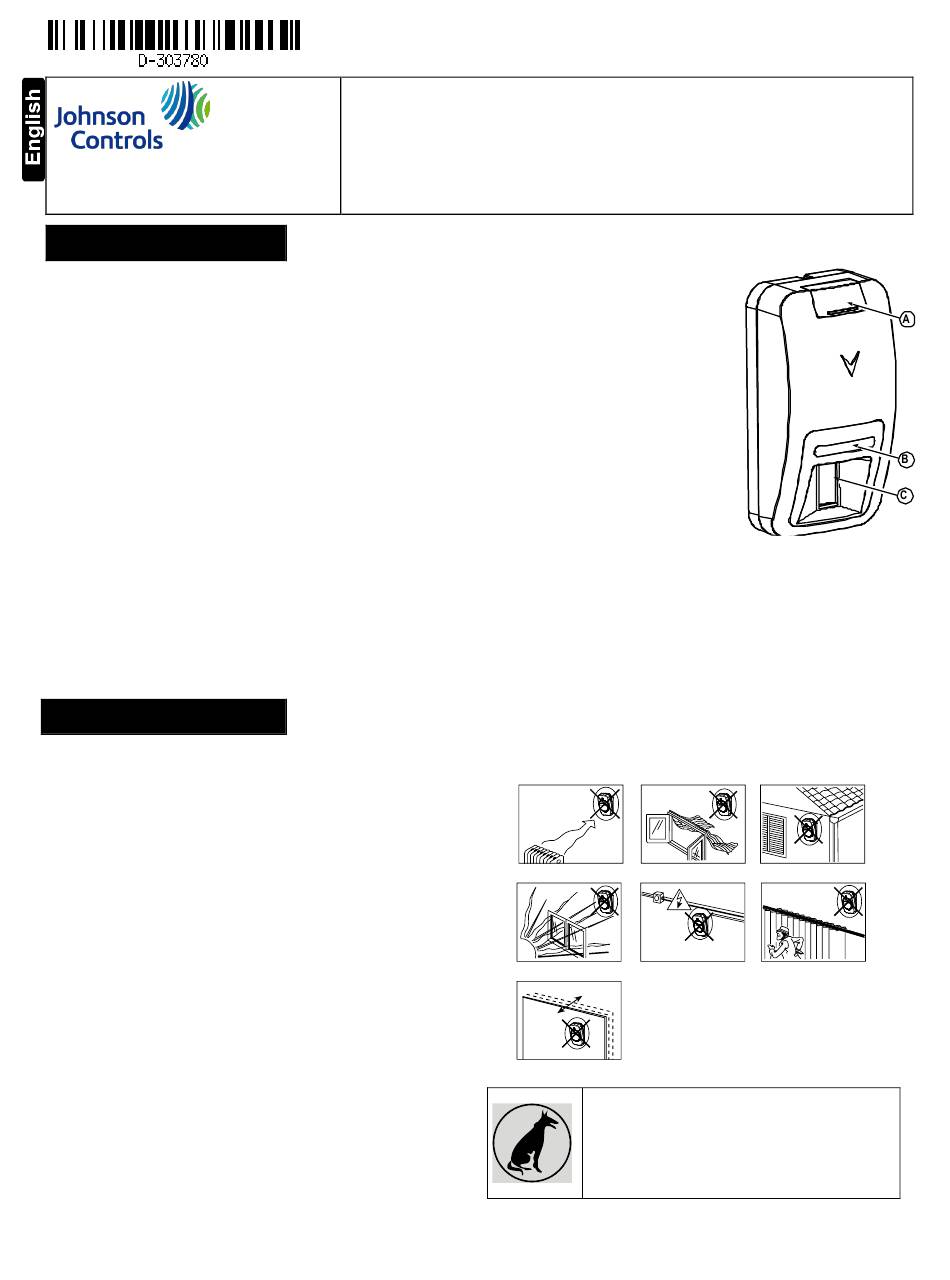

Figure 2. General Guidelines
Important! The detector is immune to
animals moving on the floor or climbing on
furniture as long as the activity takes place below
1 m (3 ft). Above the 1 m (3 ft) height limit, the pet
immunity will decrease as the pet gets closer to
the detector. It is therefore recommended to select
a mounting location that minimizes potential close
proximity of animals.
Figure 1. General View
3
6
40 kg (90 lb)
