Quick Reference Guide
Battery
• For safety and warning information, please read this
manual before attempting to use the equipment.
• Additional safety and warning information is provided
within the MT1040A Transport Modules Operation
Manual. Please refer to it before using the equipment.
• Keep this manual with the equipment.
MT1040A
Network Master Pro
Transport Modules
First Edition

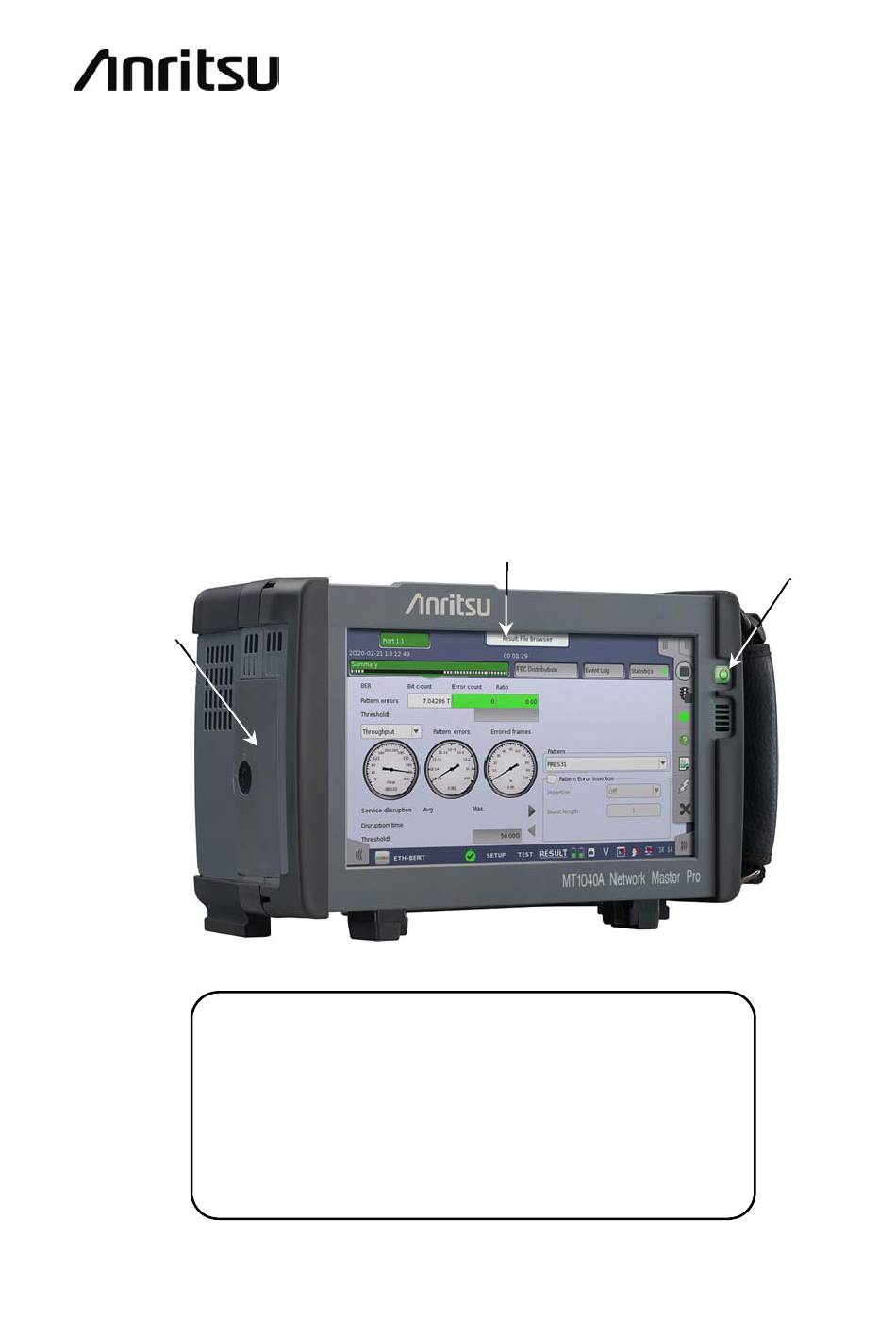

Touch Screen display
Document No.: M-W4039AE-1.0
Power button

Advertisement

loading
Need help?

Need help?

Do you have a question about the Network Master Pro MT1040A and is the answer not in the manual?

Questions and answers

Related Manuals for Anritsu Network Master Pro MT1040A

Summary of Contents for Anritsu Network Master Pro MT1040A

  • Page 1 Quick Reference Guide MT1040A Network Master Pro Transport Modules First Edition Touch Screen display Power button Battery • For safety and warning information, please read this manual before attempting to use the equipment. • Additional safety and warning information is provided within the MT1040A Transport Modules Operation Manual.

  • Page 2: Test Interface

    MT1040A Service Interface DC Input 18-19V USB B USB A Ethernet Service External Clock Interface Test Interface MU104011A 100G Multirate Module MU104014A QSFP-DD 400G Multirate Module Port 2, Sync clock output Port 1, QSFP28/QSFP+ QSFP-DD*/ Port 1, Port 2, QSFP28/QSFP+ SFP/SFP+/SFP28 SFP/SFP+/SFP28 Port 2,...
  • Page 3 MU104015A OSFP 400G Multirate Module Sync clock output Port 2, QSFP28/QSFP+ Port 1, Port 1, Port 2, OSFP SFP/SFP+/SFP28 SFP/SFP+/SFP28 Port 2, Port 1, RJ45 RJ45 MU100010A 10G Multirate Module (DS1) (E1 Balance) (SDH/SONET, OTN, Port Port Port Ethernet optical, FC, CPRI) Rx Bantam Rx Bantam RJ48...
  • Page 4 MU100011A 100G Multirate Module (SDH/SONET, OTN, Ethernet optical, FC, CPRI) Port 1, SFP/SFP+/SFP28 Port 1, Port Sync clock output 2, SFP/SFP+/SFP28 Port Port 2, RJ45 Port 1, CFP4 QSFP+/QSFP28 Port 1, RJ45 (OTN / Ethernet optical) (Ethernet electrical) MU100090A High Performance GPS Disciplined Oscillator AUX DSUB9 1pps Sync In 10MHz Out...

  • Page 5: Power Up/Power Down

    Network Master Pro is equipped with a touch screen display for operating the instrument and test applications. The power button also works as menu button when the instrument is turned on. Power is supplied by an AC adopter or a Li-Ion rechargeable and replaceable battery, which is accessed from the side of the instrument.
  • Page 6 Basic Screens and Navigation The GUI guides you through the setup and execution of the application, first asking Each screen contains a number of sub-screens, accessible via tabs or buttons you to configure the related port(s), then to set up and run the actual displayed at the top of the screen (in the “navigation area”...

  • Page 7: Selecting Applications

    Selecting Applications A number of predefined applications are available – the types depending on which options are installed in the instrument. You select the relevant application by touching the corresponding icon on the Application Selector screen. Displaying hidden icons If an application row contains more application icons than can be displayed on the screen initially, you can access the hidden icons by scrolling the relevant row.

  • Page 8: General Functions

    General Functions General functionalities such as insertion of stimuli, start/stop of test, creation of the report etc. are placed in expandable toolbars. The GUI contains two such toolbars: The instrument toolbar, which is available on all screens. • The application toolbar, which is available on the screens related to a •...
  • Page 9 WLAN (when the option is installed.) Bluetooth (when the option is installed.) VNC (Virtual Network Computing) Controlled by the remote command Connection status of GPS receiver External PC status Connection status with server service provided by Anritsu Touching an icon shows more information.
  • Page 10 Advanced Use of Network Master Pro Running multiple applications It is possible to have multiple applications active simultaneously – assigned to different ports. By displaying the application switcher, you can keep track of the progress of each application and easily switch between them. You can access application switcher in three ways.
  • Page 11 Printed on Recycled Paper Printed in Japan...
