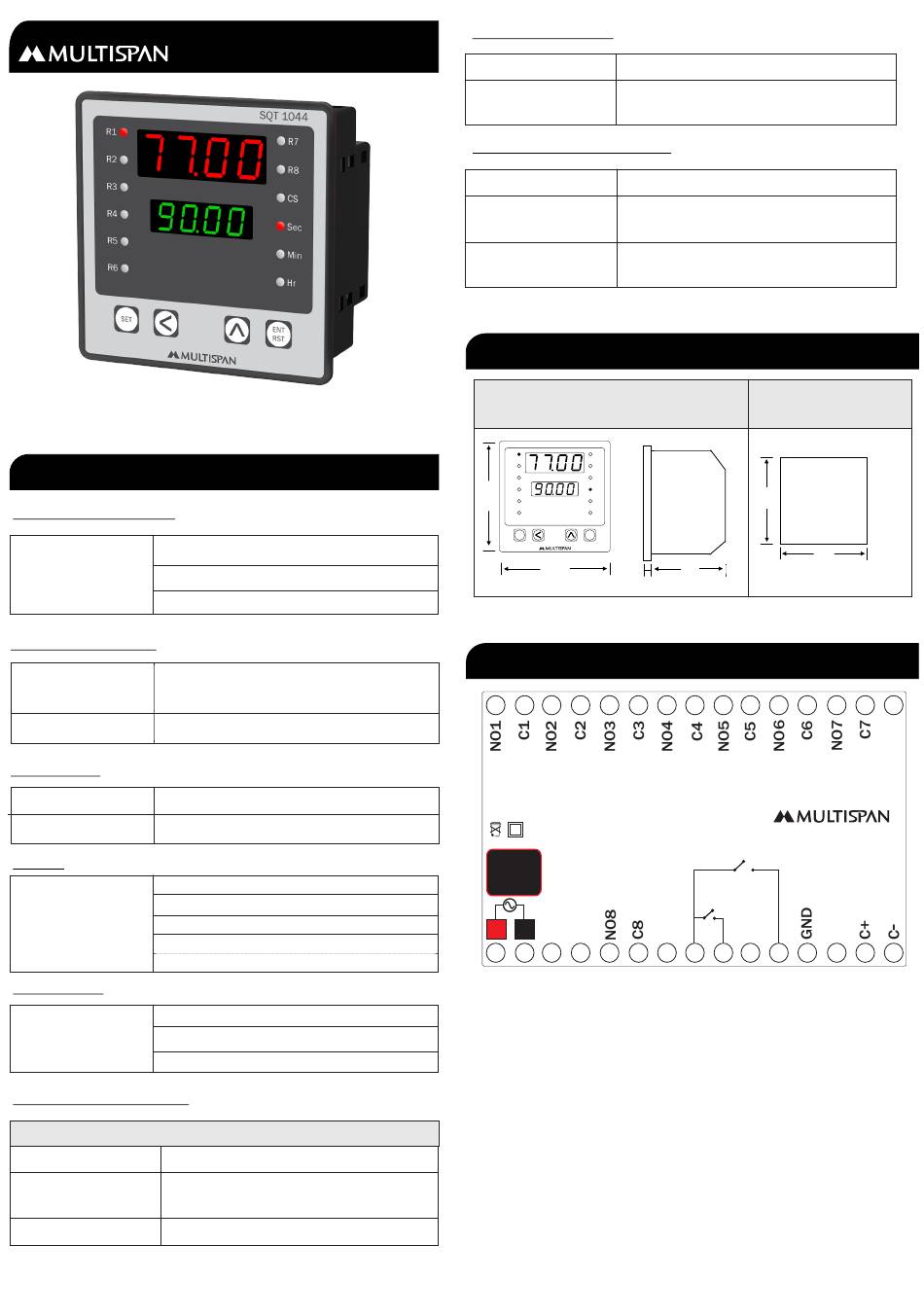

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Trigger
Input (Start Pulse)
Enable
Power ON
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.56"
Display
Lower: 4 digit, 7 segment, 0.40"
Keys
SET, SHIFT, INC, ENT/RST
DIMENSION:
Size
96 (H) x 96 (W) x 54 (D) mm
Panel Cutout
92 (H) x 92 (W) mm
Range:
99.99 Sec
999.9 Sec
Range
99.59 Min
99.59 Hrs
999.9 Hrs
Timer Mode:
Delayed ON
Delayed OFF
Timer Mode
Cycle Timer
OUTPUT SPECIFICATION:
Relay Output
Relay
8 Relay + Cascade
LED Indication
1) Relay Status
2) Time Unit
Rating
5A, 230V AC

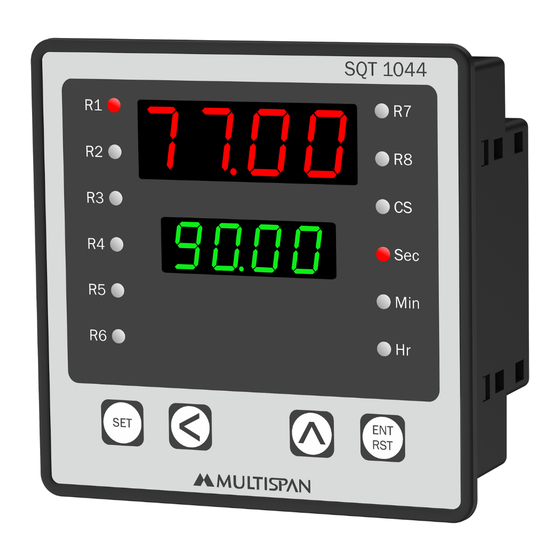

Sequential Timer : 8 Channel
SQT-1044
Display Color:
Upper : RED
Lower: Green
AUXILIARY SUPPLY:
Supply voltage
100 to 270V AC, 50-60Hz
Power consumption
Approx 5 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(AS Per Request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
SQT 1044
R1
R7
R2
R8
R3
CS
R4
Sec
96
R5
Min
R6
Hr
ENT
SET
RST
96
3
TERMINAL CONNECTION
30
29
28
27
26
25
Made in India
~
100
270V AC
50/60 Hz
5VA
L N
5
6
1
2
3
4
Panel Cutout
Dimension (mm)
92
92
54
19
24
23
22
21
20
18
www.multispanindia.com
+24V
START
RESET
7
8
9
10
11
12
13
17
16
14
15
