Star Delta Timer
SD 22,SD 224
Power Supply :
Output:
Time Range :
Pause Time :
230 V AC ±20%,50 Hz (SD 22)
:
415 V AC ±20% ,50 Hz (SD 224)
2 Relay O/P (1 C/O, 5A 230 VAC
1st Relay for star connection & 2nd Relay for delta
connection
0 to 60 sec
50 ms or 100 ms selection by front key

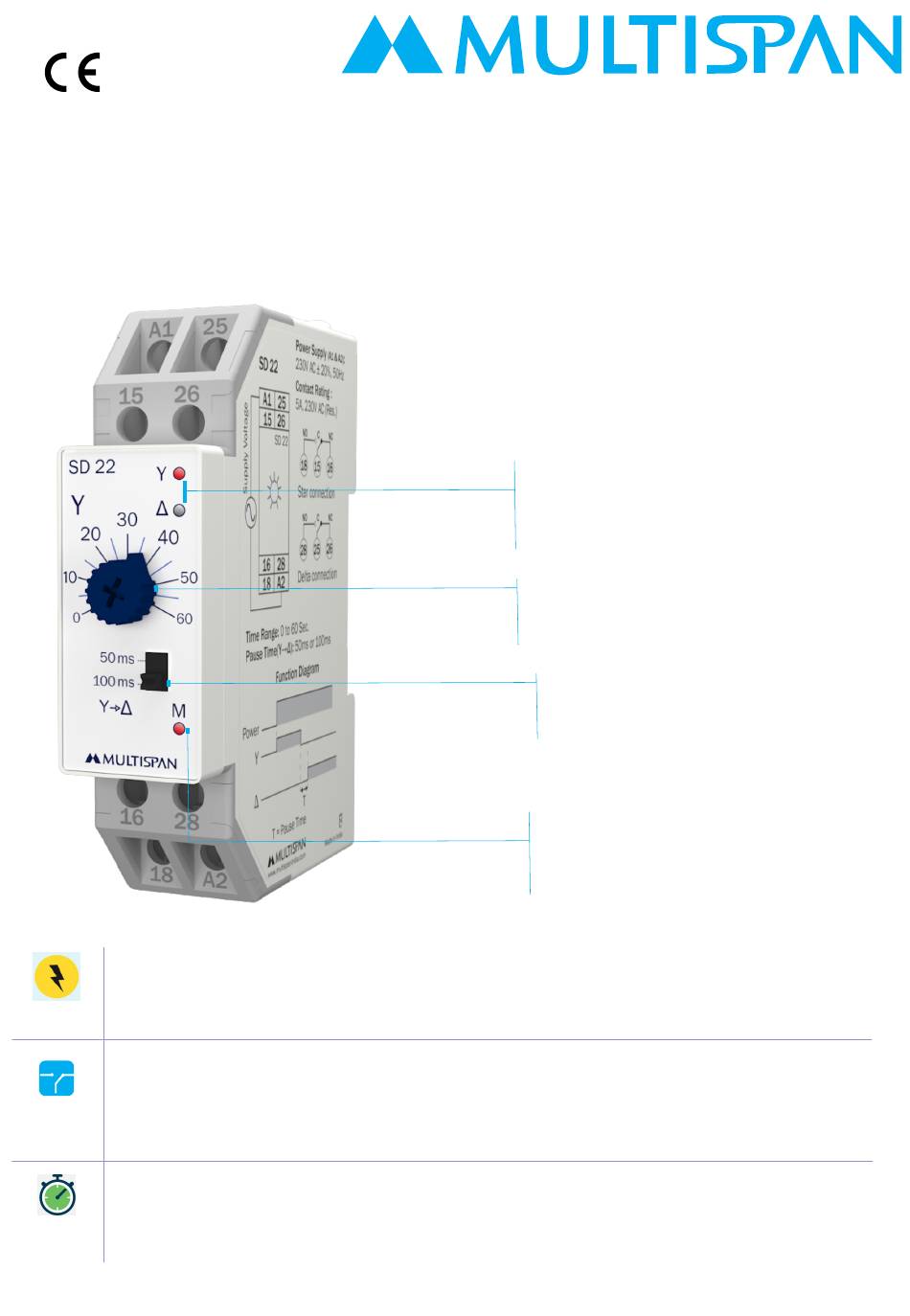

2 LED INDICATION
for visualisation of star or
delta connection output
KNOB
for time range selection
SLIDE SWITCH
for pause time selection
between star to delta
MAIN LED
for visualisation of power
supply status
Resistive Load
)
