FEATURES
1.5KV isolation between supply, input &
output
Linearized O/P
Zero & span correction facility through
trim port
Fast Response time <150ms
Din Rail Mounting
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
PT-100/3W
Input Range
0 to 400 °C
CMRR
>120dp (Typical)
Temperature
<100
Co-efficient
DIMENSION:
Size (HxWxD) mm
100 X 17.5 X 115
SIGNAL ISOLATOR
MI-532P
PPM
OUTPUT SPECIFICATION:
Output 1 & 2
Response Type
Output Inpedance
POWER SUPPLY:
Auxiliary Voltage
Power Consumption
( VA Rating )
ISOLATION:
Isolation Type
Isolation between
supply, input & Output
MECHANICAL INSTALLATION

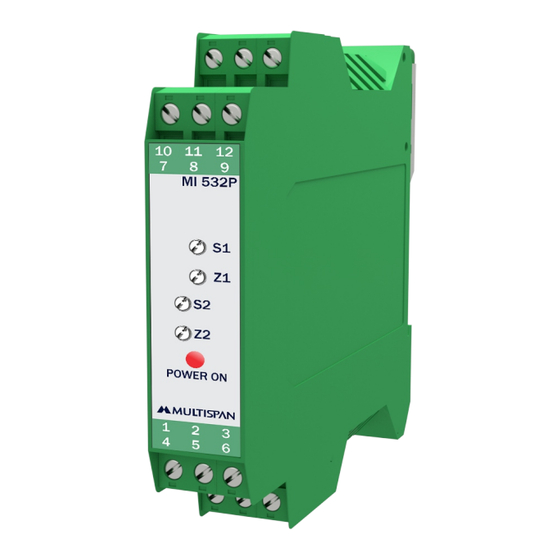

Front view (mm)
17.5
10
11
12
7
8
9
MI 532P
S1
100
Z1
S2
Z2
POWER ON
1
2
3
4
5
6
TERMINAL CONNECTION
1
Input
2
PT-100/3W
3
4
5
4 to 20mA DC
<150ms
Ω
>
500
100 to 270V AC
5VA
Optical - 3 way
At least 1.5KV AC for 1 min
Side view (mm)
115
7
O/P1
4 To 20mA
DC
8
10
O/P2
4 To 20mA
11
DC
