Danfoss 176F4057 Installation Manual page 8

In-back/Out-back Cooling Kit for FA11-FA12
Installation Guide
16X Ø 6 (0.2)

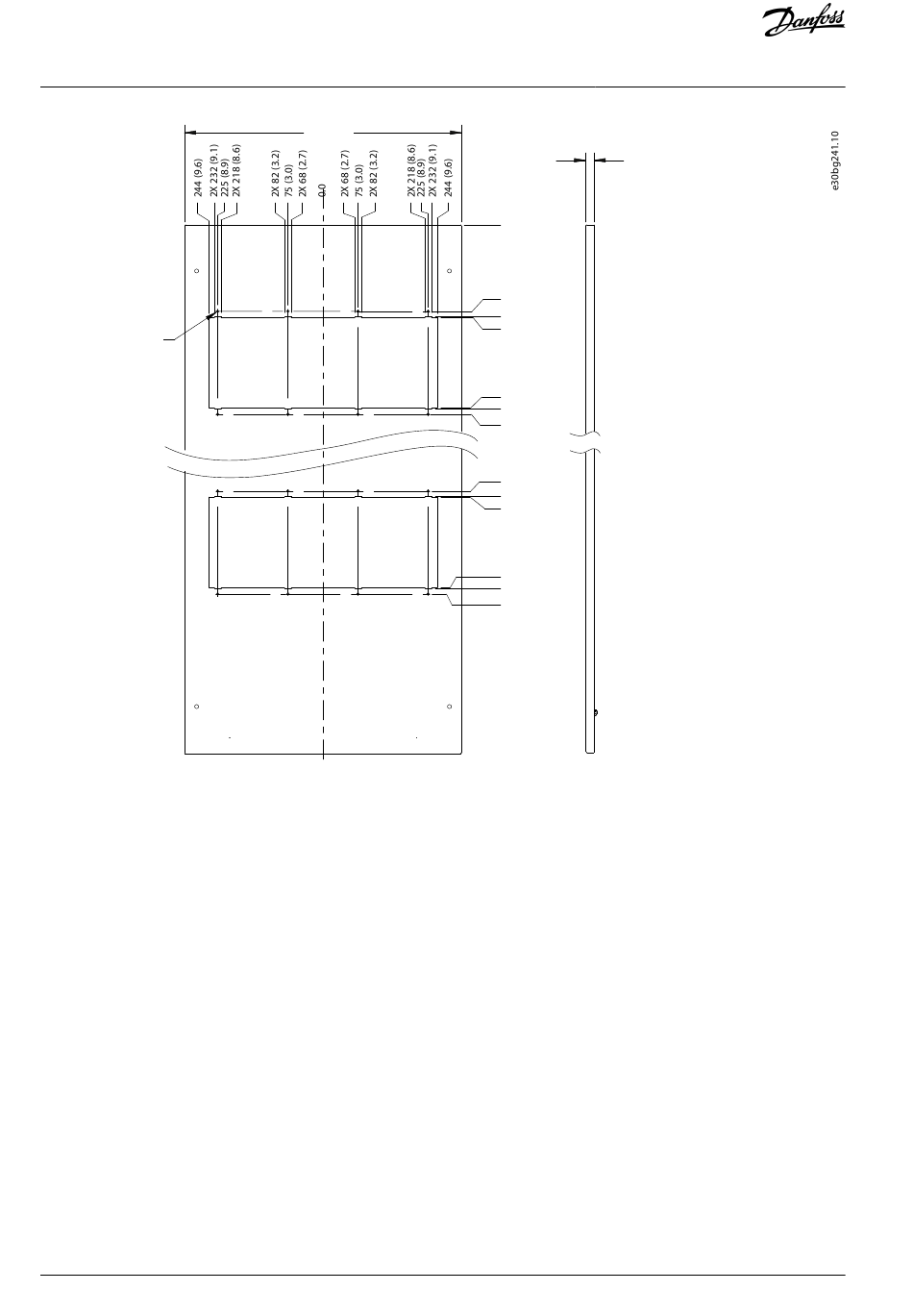

Illustration 5: Vent Dimensions for Backplate in 600 mm (24 in) Cabinet
8 | Danfoss A/S © 2022.03
592 (23.3)
18 (0.7)
0.0
185 (7.3)
4X 196 (7.7)
198 (7.8)
392 (15.4)
4X 394 (15.5)
405 (15.9)
1383 (54.4)
1394 (54.9)
1396 (55.0)
1590 (62.6)
1592 (62.7)
1603 (63.1)
AN361428862578en-000101 / 136R0249
Installation
