Danfoss 176F4057 Installation Manual page 7

In-back/Out-back Cooling Kit for FA11-FA12
Installation Guide
6X S-M10-2Z1
7 (0.3)
3 (0.1)

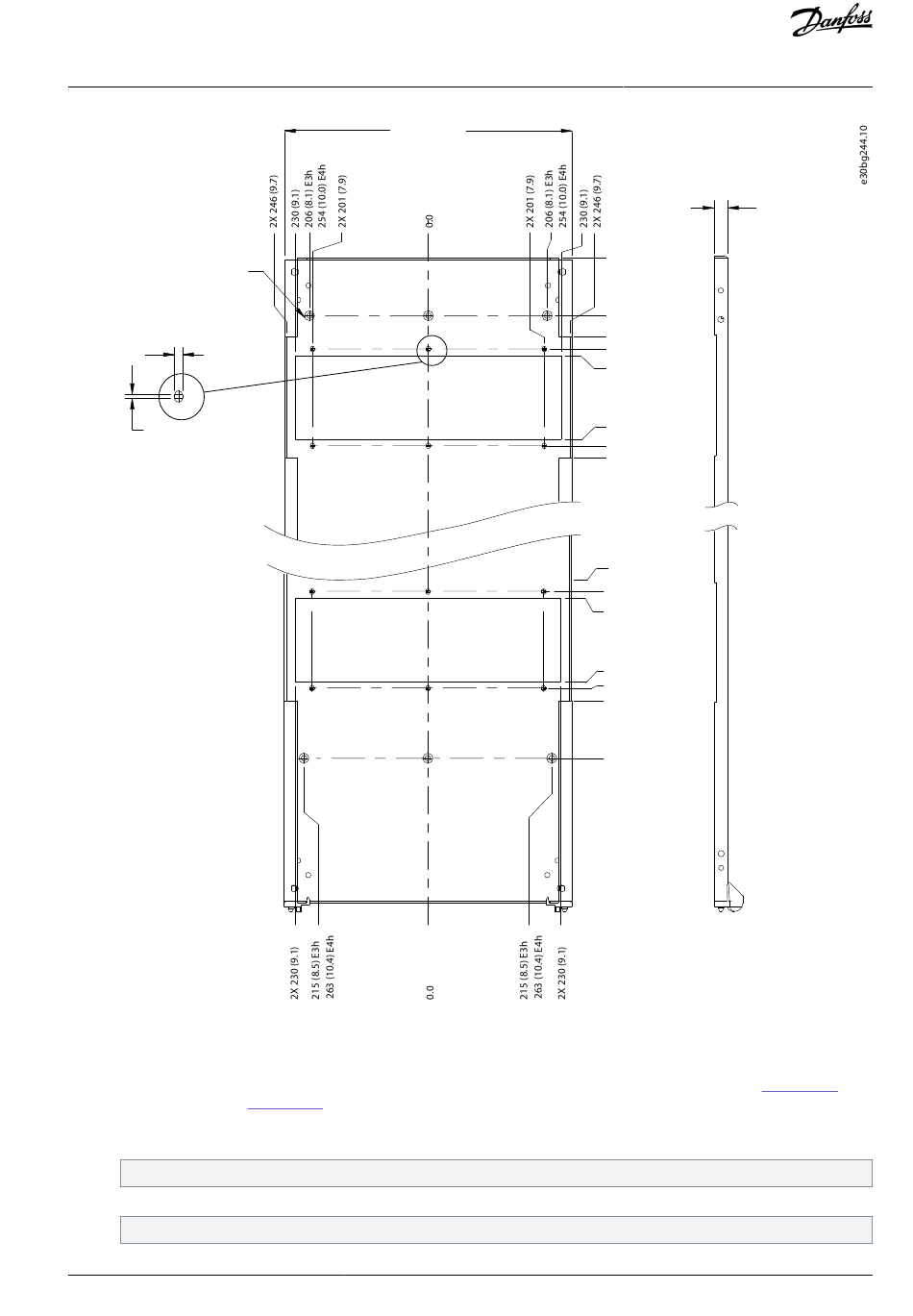

Illustration 4: Vent Dimensions for Mounting Plate in 800 mm (32 in) Cabinet
2.4 Creating Vent Openings in the Backplate
To create upper and lower vent openings in the cabinet backplate, use the following steps. Use the dimensions in
600 mm (24 in) cabinets, and
Procedure
1.
Cut out the vent openings in the cabinet backplate using the dimensions in the template.
The openings must match the frequency converter and mounting plate vent openings.
2.
Drill 8 screw holes (6 mm) around each vent opening using the dimensions in the template.
The holes must match the holes in the frequency converter and in the outer flange of the back duct.
Danfoss A/S © 2022.03
699 (27.5)
Illustration 6 for 800 mm (32 in) cabinets.
23 (0.9)
0.0
100 (3.9)
137 (5.3)
158 (6.2)
169 (6.7)
314 (12.3)
326 (12.8)
347 (13.7)
1335 (52.6)
1357 (53.4)
1368 (53.9)
1513 (59.6)
1524 (60.0)
1545 (60.8)
1645 (64.7)
Illustration 5
AN361428862578en-000101 / 136R0249 | 7
