Summary of Contents for Vantrue S1 Pro
- Page 1 Please scan to download the full version of user manual Bitte scannen Sie es, um das Handbuch herunterzuladen Veuillez scanner pour obtenir le manuel complet Zeskanuj poniższy kod QR, aby uzyskać instrukcję obsługi onlin...
-
Page 2: Table Of Contents
Grundlegende Bedienung Qu'y a-t-il dans la boîte? Opération de base Podstawowe funkcje Co znajdziemy w pudełku? Warrning Camera Overview Warnung S1 Pro Kameraübersicht Précautions Vue d'ensemble de la caméra Ostrzeżenia Budowa kamer Installation Warranty & Support Garantie und Suppor Installation Garantie &... -
Page 3: What's In The Box
Stickers*2 Cable (20ft) Cable (3.3ft, for data transfer only) 2 Channel Voice Controlled Smart Dash Cam Quick User Guide SONNET 1 Pro (S1 Pro) I. Dust-free Cloth J. Warning Stickers K. 3M Adhesive L. Quick User Guide Stickers*2 Optional Accessory M. -
Page 4: Camera Overview

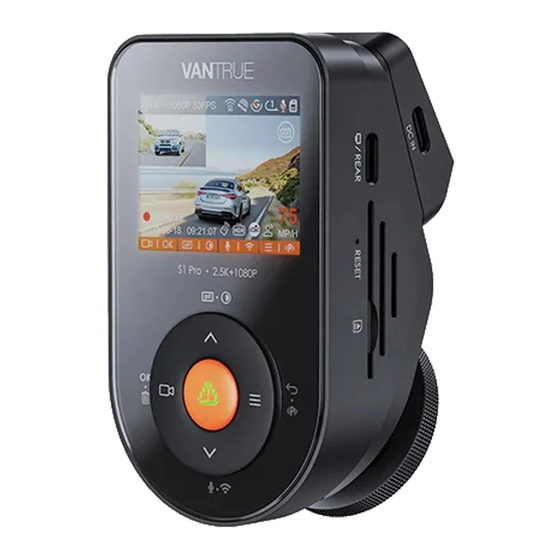

2. Camera Overview 2 inch IPS Screen Type-C USB Port for Charging Front-Facing Camera Microphone Type-C USB Port for Type C USB Port for Rear Camera Rear Camera Cable Reset Button Rear Camera MicroSD Card Slot Rear Camera Indicator Light - 2 -... - Page 5 Button Instruction N E N N E N E Instruction Buttons In menu settings and file browsing, short press to display the previous option, long press to scroll up to display options; In playback mode, short press to fast forward; During video recording, short press to start/stop recording;...
- Page 6 LED Indicator Steady green light In standby status Blinking green light Camera is recording LED Indicator Screen Overview Loop recording for 1 min 2.4G Wi-Fi ON Loop recording for 3mins 5G Wi-Fi ON Loop recording for 5mins 2.4G Wi-Fi is Connected Loop recording OFF 5G Wi-Fi is Connected MIC ON...
- Page 7 3. Installation 3.1 Installing a Memory Card (Recommend Vantrue U3 high-speed microSD card). N E N N E N E Please insert a memory card (memory card capacity: 32GB-512GB, card speed: U3/Class10/A2, recommend Vantrue U3 microSD card) into the card slot according to the direction indicated in below picture, until a "click"...
- Page 8 3.2 Installing the Mount Align the mount with the dash cam mount interface then push in until the mount is installed 3.3 Mounting the Front Camera Thoroughly clean the windshield with water or alcohol, then wipe it with a dry cloth.
- Page 9 3.4 Running the rear camera connecting cable to the rear of the vehicle Plug the rear camera connecting cable into the front unit, run the cable along the headliner, and straight down the length of the car to the A, B, and N E N N E N E C pillars.
- Page 10 3.6 Installing the Car Charger Insert one end of the car charger to the car cigarette lighter and the other end to the Type C port on the front camera mount, start the ignition, waiting for the dash cam to start. - 8 -...
-
Page 11: Basic Operation
Please scan the QR code for the relevant version below to download the APP and install it. 4.2 WiFi Connection The WiFi will be turned on automatically when S1 PRO dash cam is turned on. If WiFi is turned off, you can reopen the WiFi through shortcut keys, voice control, or menus. - Page 12 Note: • Before connecting WiFi, please make sure the WiFi function of your smartphone is enabled. • The initial password for this device is only used for initial login. In order to prevent potential security risks, please be sure to change the initial password after the initial login to prevent others from logging into your device without authorization or other adverse consequences.
- Page 13 4.3 APP Connection Camera Setting N E N N E N E Mileage Statistics Lens correction line Full-screen Icon Microphone ON/OFF Stop Recording Icon Camera Display Switch Snapshot Album After the app is successfully connected to the camera, you can perform the following operations: Video preview: In the real-time preview interface, you can switch to the full-screen preview mode by clicking the full-screen icon or placing the...
- Page 14 Lens correction line: Correct the lens balance via accurate crosshair so that the video screen will not be skewed. OTA upgrade: You can upgrade the S1 PRO dash cam via APP, please refer to 4.12 for more details. Real-time video resolution switching: You can switch display resolution in the real-time preview interface by clicking the icon.
- Page 15 4.5 Loop Recording After inserting the memory card and connecting the power, the dash cam will automatically turn on and enter loop recording. The duration of each N E N N E N E recorded video will be saved based on the loop recording time you set, saved in the normal video older.
- Page 16 4.6 Event Recording Event video is triggered by the G-sensor (Gravity Sensor), which can be automatically triggered or manually locked. During driving, in case of special circumstances, the camera will automatically lock for event recording or you can manually lock the event recording into the event folder (photo will be saved in the photo folder) by pressing the button.
- Page 17 You can wait for 5 minutes to start automatically. long press the button to begin manually. Install the Vantrue ACC hardwire kit and the dash cam will directly enter after the car is stopped the engine (the ACC hardwire kit needs to buy separately).
- Page 18 Collision Detection When collision detection is enabled, the icon will be displayed on the recording interface. If no movement is detected after 5 minutes of recording, collision detection will be activated with the icon in the center of the screen, and the camera automatically turns off. It will start to record for 1 minute after being shaken, then turn off the dash cam again.
- Page 19 detection video and save the 45s video to the normal folder. 1440P +1080P 30FPS N E N N E N E 00:00:37 09-01-2023 10:39:07 MP/H Motion Detection Icon The motion detection range of the front and rear areas can be adjusted respectively, and the set range can be adjusted up and down, left and right.
- Page 20 4.8 Parking Collision Detection After turning on the parking Collision detection mode, you can select the power saving mode or the quick start mode. In the power saving mode, after entering Collision detection, the dash cam will be turned off, and after the collision is triggered, it will be turned on for recording;...
- Page 21 N E N N E N E of the car at the time. To view it, please download and install the Vantrue APP and VANTRUE GPS Player (available for download at www.vantrue.net). 4.11 Viewing and Deleting Video/Photos on a Computer Connect the included TYPE-C USB data cable to the camera and the computer.
- Page 22 4.12 Upgrading Firmware(Please keep it plug in when upgrading) Option 1: Upgrade via PC After downloading the latest S1 PRO firmware via Vantrue Official Website, place the file into the root directory of the memory card, insert it back into the dash cam, power on to upgrade.
- Page 23 N E N N E N E - 21 -...
-
Page 24: Warrning
Firmware upgrade will be carried out from time to time to further improve • the product, please pay attention to the official notice of VANTRUE according to the specific upgrade. This product can record and save images of vehicle accidents, but it does •... -
Page 25: Warranty & Support
Please use this product within the scope of the law. 6. Warranty & Support Warranty The VANTRUE® S1 PRO Dash Cam comes with a full 12 months warranty. If you register your product on our official site (www.vantrue.net/register), you can extend the warranty to 18 months. - Page 26 Hey, find us here: facebook.com/vantrue.live www.vantrue.net/contact Thank You for choosing Vantrue PMN:2 Channel Voice Controlled Smart Dash Cam - 24 -...
-
Page 27: Was Ist In Der Box
FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 28: S1 Pro Kameraübersicht
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
