Vantrue Nexus 5 User Manual

4-channel voice controlled smart dash cam
Hide thumbs Also See for Nexus 5:

Advertisement

Quick Links

4-Channel Voice Controlled
Smart Dash Cam
User Manual
Nexus 5(N5)
122mmX130mm
70g

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nexus 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Vantrue Nexus 5

Summary of Contents for Vantrue Nexus 5

  • Page 1 4-Channel Voice Controlled Smart Dash Cam User Manual Nexus 5(N5) 122mmX130mm...
  • Page 2 Download the full version of user manual here...

  • Page 3: Table Of Contents

    CONTENTS What’s in the box? Camera Overview Installation Basic Operation Specifications Safety Warnings Warranty & Support...

  • Page 4: What's In The Box

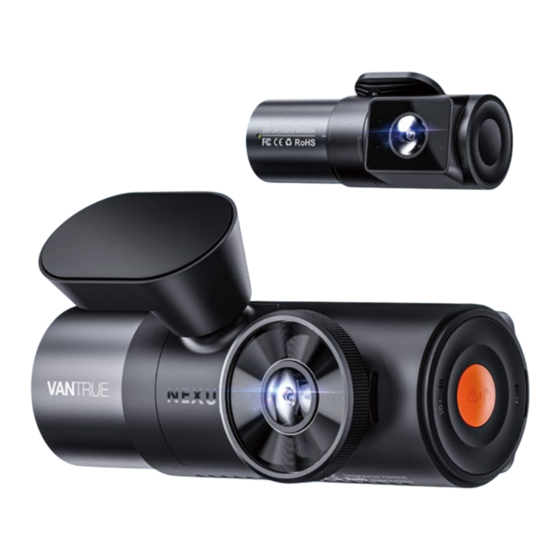

    1. What’s in the box? A. VANTRUE N5 B. Rear Camera C. GPS Mount D. Car Charger Dash Cam with Built-in Type-C Cable (11.5ft) E. Rear Camera F. Type-C USB Data G. Electrostatic H. Crowbar Cable (20ft) Cable (3ft, for...

  • Page 5: Camera Overview

    2. Camera Overview VTE22L1577 Front Facing Camera Serial Number 3.19 inch IPS Screen MicroSD Card Slot Front Cabin Camera Rear Camera for Back Recording Infrared Lights for Front Cabin Rear Cabin Camera Camera Infrared Lights for Rear Cabin 5. Type-C USB Port for Charging Camera Type-C USB Port for Rear Camera Type C USB Port for Rear Camera...
  • Page 6 Button Instruction Button In power-on status, long press to turn off the dash cam； In power-off status, short press to turn on dash cam; During video recording, short press to capture a picture; In playback mode, short press to pop up the delete Menu; Button During video recording, short press to start/stop recording;...
  • Page 7 LED Indicator Steady green light In standby status Blinking green light Camera is recording Screen Overview Voice Assistant OFF WiFi Status Voice Assistant ON 2.4G WiFi ON 5G WiFi ON IR LED AUTO ON/OFF 2.4G WiFi is connected IR LED ON 5G WiFi is connected IR LED OFF Collision Detection...

  • Page 8: Installation

    3. Installation 3.1 Installing a Memory Card (Recommended Vantrue U3 high-speed microSD card). Please insert a memory card (memory card capacity: 32GB-512GB, card speed: U3/Class10/A2) into the card slot according to the direction indicated in below picture, until a "click" sound is heard in the card slot, indicating that the memory card is inserted properly.
  • Page 9 The dashcam has certain requirements on the card speed of the memory card. For reliable operation, please use memory card speed: U3/Class10/A2, we recommend using a VANTRUE SD card(sold separately). The microSD card should be formatted once a month to maximize the lifetime of the memory card.
  • Page 10 3.2.2 Car Charger Installation Connect one end of the car charger to the car cigarette lighter and the other end to the Type C port on the front camera mount. Start the ignition, waiting for the dash cam to start. 3.2.3 Power On Dash Cam, Select the Installation Position Before installation, please power on the dash cam and check whether the shooting angle of the front and interior lens are appropriate through the...
  • Page 11 3.2.4 Installing the Electrostatic Stickers Thoroughly clean the windshield with water or alcohol, then wipe it with a dry cloth. Stick the electrostatic sticker next to the rear-view mirror, which is the recommended position to prevent blocking your view while driving. Electrostatic sticker Note: The electrostatic stickers come with two-sided protective film.
  • Page 12 When installing the rear lens, please avoid the defogging line on the rear windshield, so as not to affect the video effect. Please clean the lens with the dust-free cloth provided by VANTRUE. Please refer to the direction of screen printing to identify if you mount the rear camera correctly.
  • Page 13 3.2.7 Wire Storage Car Charger Cable: Use the crowbar to stuff the car charger cable under the rubber seal of the A-pillar and windshield. Rear Camera Cable: Carefully store the rear camera cable in the direction shown in the picture. - 10 -...
  • Page 14 3.3 APP Download Please scan the QR code for the relevant version below to download the APP and install it. Note: After this camera is successfully connected to your mobile phone through WiFi, it can perform real-time video preview, change camera settings, download files without internet connection, and play back videos on the mobile phone.
  • Page 15 After turning on the WiFi function of the camera, please click "+" to find “N5” in the “Nexus Series” through Vantrue APP, choose the right dash cam to connect, then the app will automatically connect to the camera and display the current real-time recording situation of the camera.
  • Page 16 device without authorization or other adverse consequences. If you forget the WiFi password, you can restore the default setting of the • device, and the Wi-Fi password of the device will also be restored to the default password(12345678). 3.5 APP Operation Camera Setting Mileage statistics Lens correction line...
  • Page 17 Video download: You can select the video or picture you want to download in the SD card browsing interface or in the video playback area. After downloading the video, if you play it in the local file of the app interface, you can view the GPS track of the video.
  • Page 18 3.6 APP Upgrade Open the "Vantrue" App, connect to Wi-Fi, enter "Settings> About> Detect New Version". The App will automatically detect whether its version is the latest version. If there is a new version of the app, follow the prompts and upgrade the version.

  • Page 19: Basic Operation

    4. Basic Operation 4.1 Menu Settings The N5 dash cam has 3 function menus, which are: record settings, system settings, and file browsing. You can set your dash cam according to your requirements with these function setting. Press the button to pause the video first, then press the button to enter the menu settings.
  • Page 20 Front + Front Cabin Recording: 1944P+1080P 30FPS 1440P+1080P 30FPS 1440P+720P 30FPS 1080P+1080P 30FPS 1080P+720P 30FPS 720P+720P 30FPS Front + Rear Recording: 1944P+1080P 30FPS 1440P+1080P 30FPS 1440P+720P 30FPS 1080P+1080P 30FPS 1080P+720P 30FPS 720P+720P 30FPS Front Recording: 2592x1944P 30FPS 2560x1440P 30FPS 1920x1080P 30FPS 1280x720P 30FPS B.
  • Page 21 N. Stamp: Enable or disable the watermark stamp on video and photos. The watermark stamp includes time and date label, VANTRUE label, license plate number, GPS location information, and speed label. All enabled by default.
  • Page 22 information here. The default is automatically turn off WiFi after 10 minutes without connection. WiFi will stay on in the background if you turn on the Auto ON option. The default WiFi mode is 5G. After turning on, you can connect the WiFi and operate the N5 dash cam through the mobile phone.
  • Page 23 50Hz or 60Hz frequency according to different regions. L. System Info: Check the current model, firmware version, and the Vantrue official website. M. Certifications: You can view the certification information of N5 camera.
  • Page 24 The file name format of Time-Lapse video is: 20300128_140733_0006_T_A.MP4； The file name format of Privacy Mode video is: 20300128_140633_0005_S_A.MP4. C. Photo: Photos files. The file name format is: 20210128_140633_0001A.JPG D. All: All the standard videos and critical event videos recorded. Note: The suffix A represents the files recorded by the front camera, the suffix B represents the files recorded by the front cabin camera, and the suffix C represents the files recorded by the rear cabin camera, and the suffix D...
  • Page 25 Please check the loop recording video regularly to avoid the necessary videos being overwritten by loop. When Loop Recording is turned off, the video lock function will no longer work. After the loop recording is turned off, the duration of each video will be 20 mins, and the recording will stop when the memory card capacity is full.
  • Page 26 Note: • The sensitivity of the automatic locking video trigger is determined by the sensitivity of the collision. The higher the sensitivity setting, the greater the probability of being triggered. The total capacity of the event video file accounts for 30% of the total •...
  • Page 27 4.2.4 Motion Detection Area The motion detection range of the front and rear areas can be adjusted respectively, and the set range can be adjusted up and down, left and right. Front Area Detection Rear Area Detection Note： • This feature only works in motion detection parking mode. •...
  • Page 28 • Please use Vantrue hardwire kit for ACC hardwire, ACC hardwire kit from other brands may not work. When the temperature in the car is as high as 60°C(140°F), it is recommend- •...
  • Page 29 Detection is activated with the icon in the center of the screen, and the camera automatically turns off. When the dash cam is turned off, it will start to record for 1 minute after being shaken, then turn off the dash cam again. 1440P+1080P+1080P+1080P 30FPS 00:00:37 14:25:35...
  • Page 30 Video recording process: When the camera detects object movement, it will automatically trigger video recording for 30 seconds. After the motion detection recording ends, the camera will load a 10s pre-recorded video into the 30s motion detection video and save the 40s video to the normal folder. Note: Motion detection mode can only be engaged when the camera is turned on.
  • Page 31 Low Framerate mode When the low framerate mode is selected, the camera will record according to your selection among 1FPS/5FPS/10FPS/15FPS. For example, if you select 1FPS and the current video resolution frame rate is 30FPS, the camera will generate a 30FPS video per second. Low framerate mode can greatly preserve the integrity of the video and save space on the memory card.
  • Page 32 4.2.6 Privacy Mode After enabling the privacy mode, only the latest 3 recording files will be saved. And a 10s video before the recording will be saved to current file too. For example: If you set the loop recording to 1 minutes, after enabling the privacy mode, when the third 1 minute recording ends, the new loop recording file will automatically overwrite the oldest file, and the duration of the private recording is 1 minute and 10 seconds.
  • Page 33 4.2.7 Mileage Statistics The N5 dash cam can record, analysis and statistics your driving time, driving distance, altitude, driving speed and other information according to the GPS information. You can click to download mileage information in the APP, and the mileage information will be saved in the APP as a picture or PDF file.
  • Page 34 4.2.8 Voice Assistant You can also control the camera with voice command, such as take photo, video start, turn on/off WiFi, lock the video, etc. Currently supported languag- es are English, Japanese, Russian, and Chinese. For more detailed voice commands, please check System Settings > Voice Content. 1440P+1080P+1080P+1080P 30FPS 00:00:37 14:25:35...
  • Page 35 You can select GMT-08:00 by selecting your time zone, such as Los Angeles. If you do not know the time zone of your location, you can use WiFi to connect to the Vantrue App, and confirm that the automatic time adjust- ment function in the APP is turned on.
  • Page 36 -Deleting Files Go to "Files", choose a video on the dash cam, press the button in the file browsing interface to pop up the delete Menu. Event Video Event Video Delete This File? 20230601_140633_0005_T_C.MP4 Delete All Files? 20230601_140633_0006_T_C.MP4 20230601_140633_0007_T_C.MP4 20230601_140633_0008_T_C.MP4 b.
  • Page 37 USB3.0 interface. When connecting to a desktop computer, it is recommended to use the USB port on the back of the host computer. c. Viewing and Deleting on the “Vantrue” APP After the camera is successfully connected to the mobile phone through WiFi, it can play back, download and delete files in the mobile APP.
  • Page 38 4.2.12 Upgrading Firmware Option 1: File Upgrade After downloading the latest N5 firmware via Vantrue Official Website, place the file into the root directory of the memory card, insert it back into the dash cam, power on to upgrade.
  • Page 39 - 36 -...

  • Page 40: Specifications

    5. Specifications The specifications of this product may change without prior notice due to product improvements. Model Chips Novatek high-performance processor Image Sensor Sony Sensor G-sensor Built-in triaxial sensor WiFi 2.4GHz & 5GHz Screen 3.19 inch IPS Screen Camera Angle Front: 158°...
  • Page 41 1440P+720P+720P 30FPS 1080P+1080P+1080P 30FPS 1080P+720P+720P 30FPS 720P+720P+720P 30FPS Front + Front Cabin： 1944P+1080P 30FPS 1440P+1080P 30FPS 1440P+720P 30FPS 1080P+1080P 30FPS 1080P+720P 30FPS 720P+720P 30FPS Front + Rear： 1944P+1080P 30FPS 1440P+1080P 30FPS 1440P+720P 30FPS 1080P+1080P 30FPS 1080P+720P 30FPS 720P+720P 30FPS Front： 2592x1944P 30FPS 2560x1440P 30FPS 1920x1080P 30FPS...

  • Page 42: Safety Warnings

    • Firmware upgrade will be carried out from time to time to further improve the product, please pay attention to the official notice of VANTRUE according to the specific upgrade. • This product can record and save images of vehicle accidents, but it does not guarantee that all accident images can be recorded.

  • Page 43: Warranty & Support

    Please use this product within the scope of the law. • 7. Warranty & Support Warranty The VANTRUE® NEXUS 5 Dash Cam comes with a full 12 months warranty. If you register your product on our official site (www.vantrue.net/register), you can extend the warranty to 18 months. Support If you have any questions regarding your product, please solve it in the following ways: 1.
  • Page 44 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation.
  • Page 45 Hey, find us here: www.vantrue.net/contact facebook.com/vantrue.live PMN:Nexus5 4-Channel Voice Controlled Smart Dash Cam...
  • Page 46 Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
