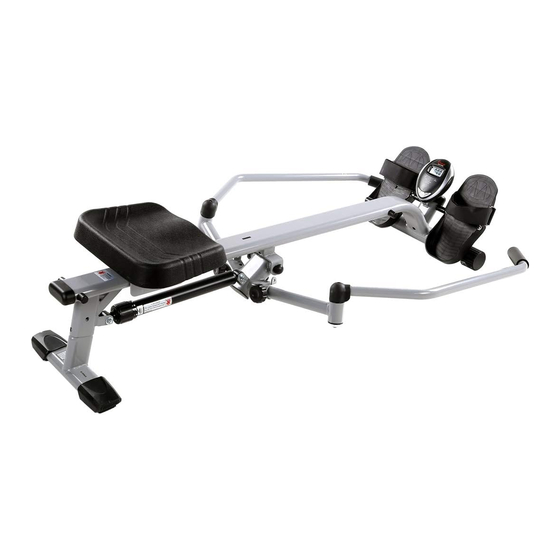

Sunny Health & Fitness SF-RW5639 SMART User Manual

Smart compact full motion rowing machine
Hide thumbs Also See for SF-RW5639 SMART:
Table of Contents

Advertisement

Quick Links

Download this manual

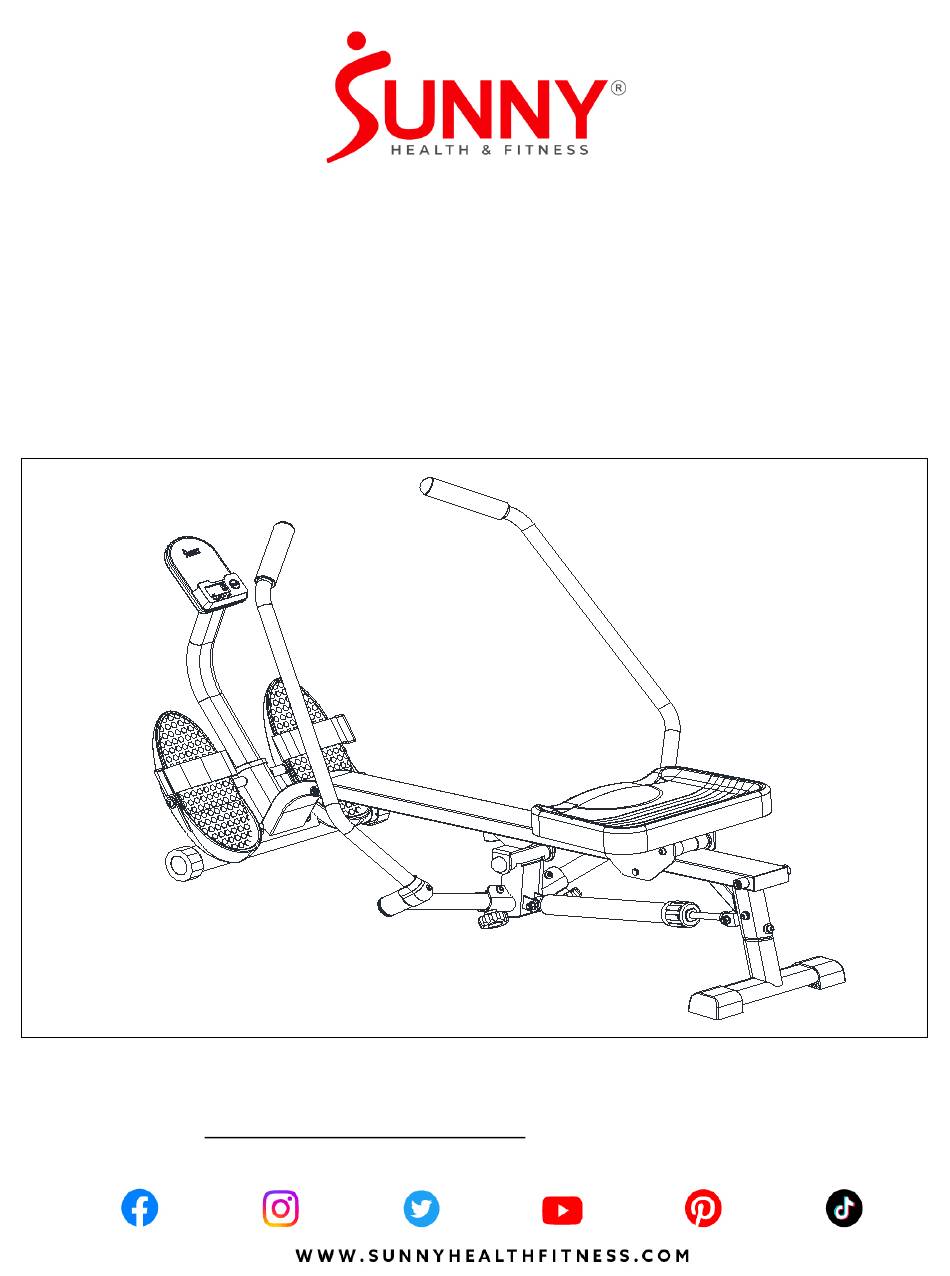

SMART COMPACT FULL MOTION
ROWING MACHINE
SF-RW5639 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading

Related Manuals for Sunny Health & Fitness SF-RW5639 SMART

Summary of Contents for Sunny Health & Fitness SF-RW5639 SMART

  • Page 1 SMART COMPACT FULL MOTION ROWING MACHINE SF-RW5639 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Description Spec. Qty. Description Spec. Qty. Rear Stabilizer Meter Seat Rail Seat Left Handlebar Support Tube Right Handlebar Battery Long Shaft Thank You Card Left Pedal User Manual Right Pedal Hardware Package Front Stabilizer...

  • Page 4: Hardware Package

    HARDWARE PACKAGE #46 φ 8.2* φ 16*1.5 4PCS #35 M8*60 2PCS #49 φ 8.1* φ 10.6*1.5 5PCS #42 M8*50 2PCS #50 φ 8.2* φ 19*1.5 3PCS #36 M8 2PCS #38 M8 2PCS #29 M8 2PCS #40 M8*16 3PCS #60 S6 2PCS #61 S10-S13-S17 1PC Ordering Replacement Parts (U.S.
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: #35 M8*60 2PCS #38 M8 2PCS #49 φ 8.1* φ 10.6*1.5 5PCS #40 M8*16 3PCS #50 φ...
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: #14 φ 18* φ 13.5*31.5 2PCS #40 M8*16 2PCS #43 φ 8.2* φ 22*1.5 2PCS Remove 2 Flat Washers (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: #9 M8*105 1PC #10 M8 1PC Remove 1 Nut (No. 10), 2 Limit Mats (No. 17) and 1 Hex Bolt (No. 9) from Seat Rail (No.

  • Page 8: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION: 1. Take out 2 AAA batteries from the meter box. 2. Press the buckle of the battery cover on the back of the Meter (No. 27), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 27). Pay attention to the battery + and –...

  • Page 9: Adjusting The Resistance

    ADJUSTING THE RESISTANCE This rowing machine is designed with 12 levels of resistance. Turn the upper ring on the Hydraulic Cylinder (No. 30) so the arrow points to the desired resistance level, as shown on the drawing. NOTE: Please do not adjust the resistance of the Hydraulic Cylinder (No. 30) during operation to avoid injury and damage to the rowing machine.

  • Page 10: Balance Adjustment

    BALANCE ADJUSTMENT Before using, check the balance of the product to ensure it is safe for use. Put the product on a flat, even surface. If the product is slightly uneven, rotate the End Caps (No. 24) on the Front Stabilizer (No. 21) to compensate for the uneven ground.
  • Page 11 EXERCISE METER KEY FUNCTIONS： ■  Pressing the MODE key to select and lock on a function for following sequence: SCANTIME COUNT DIST CAL TOT  SPMT/500M SCAN  Press and hold the MODE key for 3 seconds to reset the value to zero (without resetting TOT). ■...
  • Page 12 APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.

  • Page 13: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. φ23*φ33*145 Seat Bracket Foam Grip φ22*φ10.2*14 Rear Stabilizer Roller Seat Rail Bolt M8*60 Left Handlebar Right Handlebar Connecting Joint Junction Piece Phillips Screw M5*12 φ13*398 Long Shaft Inner Hex Screw M8*16 Hex Bolt M8*105 Inner Hex Bolt M8*40...

  • Page 14: Exploded Diagram

    EXPLODED DIAGRAM Version: 1.1...
