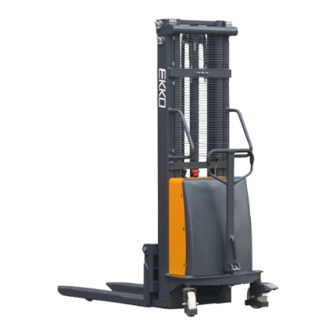

- Page 1 Service Manual Part Manual EA15C Semi-Electric Fork-Over Stacker Note: You must read this manual, and all warning labels on the Fork-Over Stacker BEFORE USE!
-
Page 2: Table Of Contents
Contents Preface ..................- 2 – 1. Structural data form..............- 2 – 2. Safety guidance ................. - 3 - 3. Maintenance ................- 4 - 4. Control panel ................4/5 5. Troubleshooting ................. - 5 - 6. Parts List..................- 6 - - 1 -... -
Page 3: Preface
Preface EKKO Lifts would like to thank you for your recent purchase of an EA15 series semi-electric stacker. The stacker is made with high-quality steel and is designed to be durable, dependable, and easy to use. For your safety and correct use during operation, please carefully read this instruction manual, and all warnings on this stacker before use. -
Page 4: Safety Guidance
1. Safety guidance 1.1 Operators must read all warning signs and instructions on the stacker before use. 1.2 Do not operate this stacker unless you are familiar with it, have been professionally trained in its operation and functionality, and are also authorized to do so. -
Page 5: Maintenance
2. Maintenance 2.1 Hydraulic oil Please check the oil level every six months. The oil can be hydraulic oil: ISO VG32, its viscosity should be 32cSt at 40 C, total volume is about 4.0 liters. 2.2 Daily check and maintenance It is necessary to check the stacker daily. - Page 6 off, and when you pull it back up it will switch the power back on. 3.2 Voltage meter It indicates the voltage of battery. When its voltage is less than 10 Volts, you should recharge it. 3.3 Control handle This control handle lowers and raises the forks. 3.4 Recharging socket - 5 -...
-
Page 7: Troubleshooting
Plug the charger into any 110V outlet, then plug the charger into the unit of the recharging socket. It will automatically stop charging when the charge is complete. 4. Troubleshooting Trouble Cause Solution The forks cannot lift to the -Low on hydraulic fluid -Add hydraulic fluid. -
Page 8: Parts List
5. Parts List Specificatio Code Name Quantity GB/T 818-2000 Cross recess pan head screw M6×20 EA10.0-6 Guard clamp EA1016.0-4 Protective cover EA10.9-2 Electrical cover φ6 GB/T 96.2-2002 Large (big) plain washer GB 2674-86 Socket button head screws M10×25 EA10.4-3 Cover GB/T 276-94 Deep groove ball bearing 6205... - Page 9 φ10 GB/T 93-1987 Spring washer φ10 GB/T 95-2002 Flat washer CMB1-VB1303060- pump station TY-01.36 Emergency Stop Switch TY-01.42 SPN charging plug GB/T 818-2000 cross recess pan head screw M4×20 GB 923-88 acorn nut GB 923-88 acorn nut GB/T 41-2000 Hex nut φ8 GB/T 93-1987 Spring washer...
