SSDC-4X-ECX Hardware Manual 1 Introduction ........................3 1.1 Features ......................3 1.2 Safety Instructions .....................4 2 Getting Started ......................5 2.1 Choosing a Power Supply .................5 2.1.1 Voltage .....................5 2.1.2 Current ....................6 2.2 Connecting the Power Supply ................16 2.3 Installing Software .....................17 2.4 Connecting the EtherCAT ..................18 2.5 Setting the EtherCAT Node ID................18 2.6 Connecting the Motor ..................19 3 Inputs and Outputs .......................20...

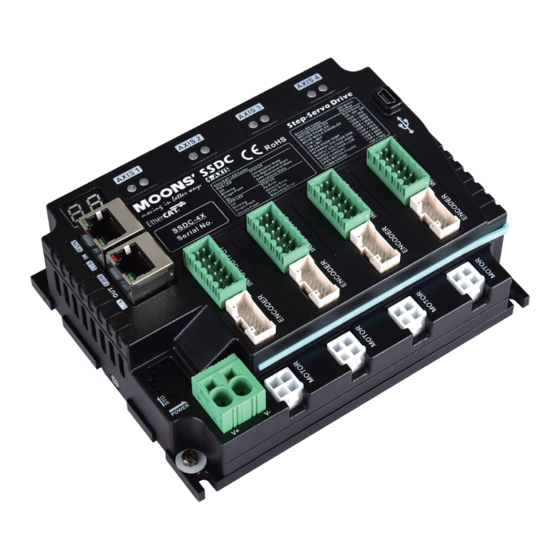

SSDC-4X-ECX Hardware Manual 1 Introduction Thank you for choosing MOONS’ SSDC-4X series stepping servo motor driver. SSDC-4X series is a high-performance bus-controlled 4-axis stepping servo motor driver, which also integrates the function of an intelligent motion controller. It can be used with MOONS’ RS and SS series stepping servo motors.
SSDC-4X-ECX Hardware Manual 1.2 Safety Instructions Only qualified personnel should transport, assemble, install, operate, or maintain this equipment. Properly qualified personnel are persons who are familiar with the transport, assembly, installation, operation, and maintenance of motors, and who meet the appropriate qualifications for their jobs. To minimize the risk of potential safety problems, all applicable local and national codes regulating the installation and operation of equipment should be followed.
SSDC-4X-ECX Hardware Manual 2 Getting Started The following items are needed: • A 24-70VDC power supply, see the section below entitled “Choose a Power Supply” for helping to choose the right one. • A compatible SS or RS motor, please see the section below entitled “Recommended Motor” •...
SSDC-4X-ECX Hardware Manual 2.1.2 Current The maximum supply currents required by the SSDC series step servo drive and motor are shown below in chats at different power supply voltage input. The SSDC drive power supply current is lower than the winding currents because it uses switching amplifiers to convert a high voltage and low current into low voltage and high current.
Page 7
SSDC-4X-ECX Hardware Manual AM11RS3DMA 24V Power Torque Continuous Boost Supply Current Full Load No Load Speed (rps) □ □ AM17SS1DG -N AM17RS1DM 24V Power Torque Continuous Boost Supply Current Full Load No Load Speed (rps) □ □ AM17SS1DG AM17RS1DM 48V Power Torque Continuous Boost...
Page 8
SSDC-4X-ECX Hardware Manual □ □ AM17SS2DG -N AM17RS2DM 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □ AM17SS2DG -N AM17RS2DM 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □...
Page 9
SSDC-4X-ECX Hardware Manual □ □ AM17SS3DG -N AM17RS3DM 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □ AM17SS4DG -N AM17RS4DM 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □...
Page 10
SSDC-4X-ECX Hardware Manual □ □ AM23SS2DG -N AM23RS2DM 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □ AM23SS2DG -N AM23RS2DM 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □...
Page 11
SSDC-4X-ECX Hardware Manual □ □ AM23SS3DG -N AM23RS3DM 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □ AM23SS3DG -N AM23RS3DM 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □...
Page 12
SSDC-4X-ECX Hardware Manual □ □ AM24SS3DG -N AM24RS3DM 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □ AM24SS3DG -N AM24RS3DM 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) □ □...
Page 13
SSDC-4X-ECX Hardware Manual AM34SS1DGA-N AM34RS1DMA 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) AM34SS1DGA-N AM34RS1DMA 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) AM34SS1DGA-N AM34RS1DMA 70V Power Torque Continuous Boost Supply Current Full Load Full Load...
Page 14
SSDC-4X-ECX Hardware Manual AM34SS3DGA-N AM34RS3DMA 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) AM34SS3DGA-N AM34RS3DMA 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) AM34SS3DGA-N AM34RS3DMA 70V Power Torque Continuous Boost Supply Current Full Load Full Load...
Page 15
SSDC-4X-ECX Hardware Manual AM34SS5DGA-N AM34RS5DMA 24V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) AM34SS5DGA-N AM34RS5DMA 48V Power Torque Continuous Boost Supply Current Full Load Full Load Speed (rps) AM34RS5DMA AM34SS5DGA-N 70V Power Torque Continuous Boost Supply Current Full Load Full Load...
SSDC-4X-ECX Hardware Manual 2.2 Connecting the Power Supply SSDC-4X products share a power connector. The first digit on the left side of the connector is the V+ of the power supply, and the second digit is the V- of the power supply. (NOTE: Be careful not to reverse the wires.
SSDC-4X-ECX Hardware Manual 2.3 Installing Software Stepper Suite is the PC based software application used to configure, and perform servo tuning, drive testing and evaluation of the step-servo products. System servo control gains, drive functionality and I/O configuration are set with Stepper Suite . It also contains an oscilloscope function to help set the servo control gains.
SSDC-4X-ECX Hardware Manual 2.4 Connecting the EtherCAT Dual RJ-45 connectors accept standard Ethernet cables and are categorized as 100BASE-TX (100 Mb/sec) ports. CAT5 or CAT5e (or higher) cables should be used. The IN port connects to a master, or to the OUT port of an upstream node. The OUT port connects to a downstream node. If the drive is the last node on a network, only the IN port is used.
SSDC-4X-ECX Hardware Manual 2.6 Connecting the Motor The SS/RS motors have two different cables. One is the motor power cable, the other one is the encoder feedback cable. Plug the motor power cable into the motor connector on the drive and plug the encoder feedback cable into the encoder feedback connector on the drive.
SSDC-4X-ECX Hardware Manual 3 Inputs and Outputs SSDC -4X inputs and outputs include: • 5 Optically isolated digital inputs, 5 - 24VDC logic • 2 Optically isolated, Open Collector, 30V/100 mA max • 1 Brake direct drive control signal output, 30V/1 A max YCOM L/A IN 24V+...
SSDC-4X-ECX Hardware Manual The diagrams below show how to connect the X3, X4, X5, X7 and X8 to various commonly used devices: XCOM 5 - 24V SSDC Power Supply Switch or Relay (Closed: logic low) X3/X4/X5/X7/X8 Connecting a switch or relay to an input XCOM 5 - 24V SSDC...
Page 22
SSDC-4X-ECX Hardware Manual The chats below show how to connect to the output: (NOTE: Do not connect the outputs to more than 30VDC power supply.And the current of each output terminal must not exceed 100mA.) 5 - 24V Power Supply –...
SSDC-4X-ECX Hardware Manual 3.3 Y2 Brake Output Y2: Brake direct drive, photoelectric isolation, 24V, 1A Y2 brake signal output wiring method: (Warning: Do not connect the output terminal to a DC voltage above 24V, and the current flowing into the output terminal shall not exceed 1A) 24V+_BR BRAKE 5-24 VDC...
SSDC-4X-ECX Hardware Manual 6 Reference Materials 6.1 Technical Specifications Power Amplifier Amplifier Type Dual H-Bridge, 4 Quadrant SSDC06-4X-ECX:Continuous Current 6A max,Boost Current 7.5A max (1.5s), current limitation auto set-up by attached motor Output Current SSDC10-4X-ECX:Continuous Current 10A max,Boost Current 15A max (1.5s), current limitation auto set-up by attached motor Operating SSDC0610-4X-ECX: 24 - 70 VDC...
SSDC-4X-ECX Hardware Manual 6.4 Motor Dimensions (Unit:mm) AM08 Series 20.3 Max Model 16±0.2 29.5 Max AM08RS1DMA 45.5 AM08RS2DMA 55.5 AM08RS3DMA 62.5 1.5±0.2 4-M2 3 Min 15±0.5 AM11 Series Model 4-M2.5 Depth 2.5 Min AM11RS1DMA 43.8 AM11RS2DMA 52.9 AM11RS3DMA 64.1 Rev. 1.0 400-820-9661 04/03/2023...
SSDC-4X-ECX Hardware Manual 7.2.3 Extended motor cable(For SSDC drive and AM17/23/24/34SS-N、AM17/23/24/34RS motor) Housing: 39-01-3049(Molex) Housing: 39-01-3048(Molex) Crimp: 39-00-0040(Molex) Crimp: 39-00-0038(Molex) Model Length(L) Description Wiring Diagram 2103-100 Standard type PIN(J1) Color (Signal) PIN(J2) 2103-300 Standard type Blue(B-) 2103-500 Standard type Red(B+) 2103-1000 Standard type Green(A-)
SSDC-4X-ECX Hardware Manual 7.2.5 Extended encoder cable(For SSDC drive and AM11RS motor) Housing:501646-1200(Molex) Housing: J21DF-16V-KX-L(JST) Crimp:501648-1000(Molex) Crimp: SJ2F-002GF-P1.0(JST) Model Length(L) Description Wiring Diagram PINJ1) PIN(J2) PIN(J1) PIN(J2) 2118-100 Standard type Color (Signal) Color (Signal) 2118-300 Standard type Blue(A+) Brown(U+) 2118-500 Standard type Blue/Black(A-) Brown/Black(U-)
SSDC-4X-ECX Hardware Manual 7.2.7 Extended encoder cable(For SSDC drive and AM17/23/24/34RS motor) 1-1903130-6(TYCO) Housing: Housing: 501646-1600(Molex) Crimp: Crimp: 501648-1000(Molex) 1903120-1(TYCO) Length(L) Description Model Wiring Diagram PINJ1) PIN(J2) PIN(J1) PIN(J2) 2116-100 Standard type Color (Signal) Color (Signal) 2116-300 Standard type Blue(A+) Brown(U+) 2116-500 Standard type...
SSDC-4X-ECX Hardware Manual 8 Contacting MOONS’ Customer Service Center 400-820-9661 MOONS’ Headquarter 168 Mingjia Road, Minhang District, Shanghai 201107, P.R. China Domestic Offices North America Company Shenzhen MOONS’ INDUSTRIES (AMERICA), INC. (Chicago) 1113 North Prospect Avenue, Itasca, IL 60143 USA Room 3901, Building A, Zhongguan Times Square, No 4168 Liuxian Avenue, Nanshan District, Shenzhen 518000 MOONS’...
