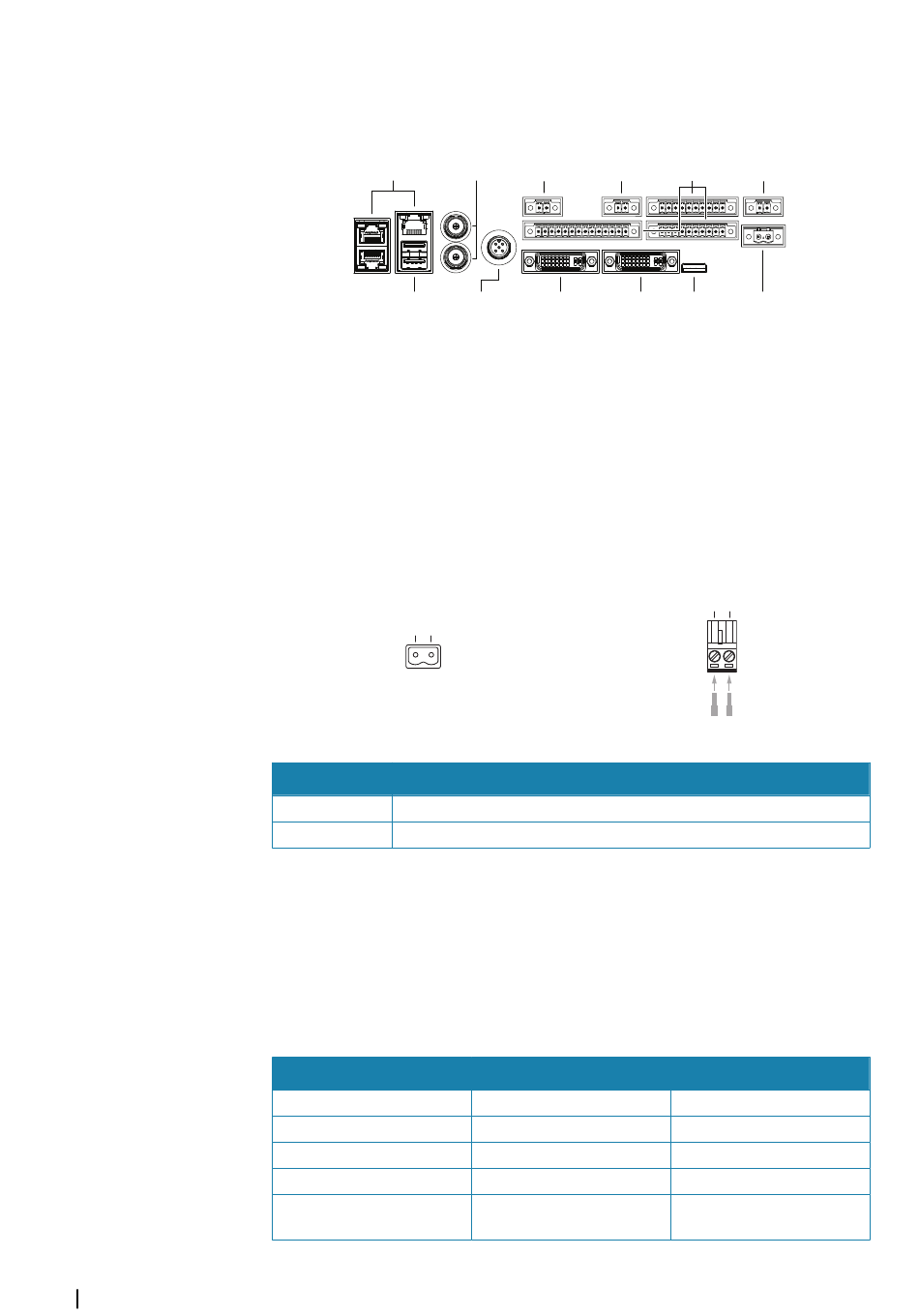

Connectors

R5000 radar processor unit
NETWORK
USB
Ú Note:
The video in connectors are not used.

Power

The unit is designed to be powered by 24 V DC.
It is protected against reverse polarity, under voltage and over voltage (for a limited
duration).
If R5000 power supply is not used, a fuse or circuit breaker shall be fitted to the positive
supply. For recommended fuse rating, refer to "Technical specifications" on page 22.
Power connector details
1 2
Unit socket (male)
Pin Purpose
1
+12/24 V DC
2
DC negative

Serial

The serial port provides input (Listeners) and outputs (Talkers) for the various interfaced
sensors. The port uses the IEC 61162 (serial balanced) standard.
IEC 61162 messages
The serial ports are preconfigured and cannot be changed. For details, refer to the
commissioning manual.
Description
Heading input
AIS input
Tracking data output
Own-ship speed-log input
Own-ship position, ground
speed and time
