V-1030M - 5 WATT PAGING HORN AMPLIFIER ASSEMBLY
V-1036M - 15 WATT PAGING HORN AMPLIFIER ASSEMBLY
INTRODUCTION
This instruction contains the specifications and
information necessary to install, operate and maintain
the V-1030M and V-1036M Paging Horn Assemblies
and the V-1048M 45 Ohm Talkback Horn.
This equipment has received FCC type KX registration,
designed to be used with FCC registered Key
Telephone Systems. In accordance with FCC Rules
with applicable tariffs, this Paging Unit may be
installed with the authorization of the host system.
Installations may be made by Valcom, Inc., an
authorized agent of the same, equipment
manufacturers, telephone companies, registered
telephone refurbishers, and those qualified for
installation of FCC registered systems under FCC
Rules Section 68.215.
The FCC Registration Number, BAF9I7-69358-KX-N,
will be listed in the affidavits filed with the telephone
company; it will also be recorded in the system log kept
by installation and maintenance personnel. The local
telephone company is to be notified of the FCC
Registration Number when this Paging Unit is
installed.
DESIGN
These horns are designed for marine use and can be
used for interior or exterior paging applications. They
are enclosed in a white, no fade, high impact, sealed
plastic housing. They are fully adjustable 360 degrees
horizontal and 90 degrees vertical. They are supplied
with stainless steel hardware and a beam mount clamp.
MARINE HORNS

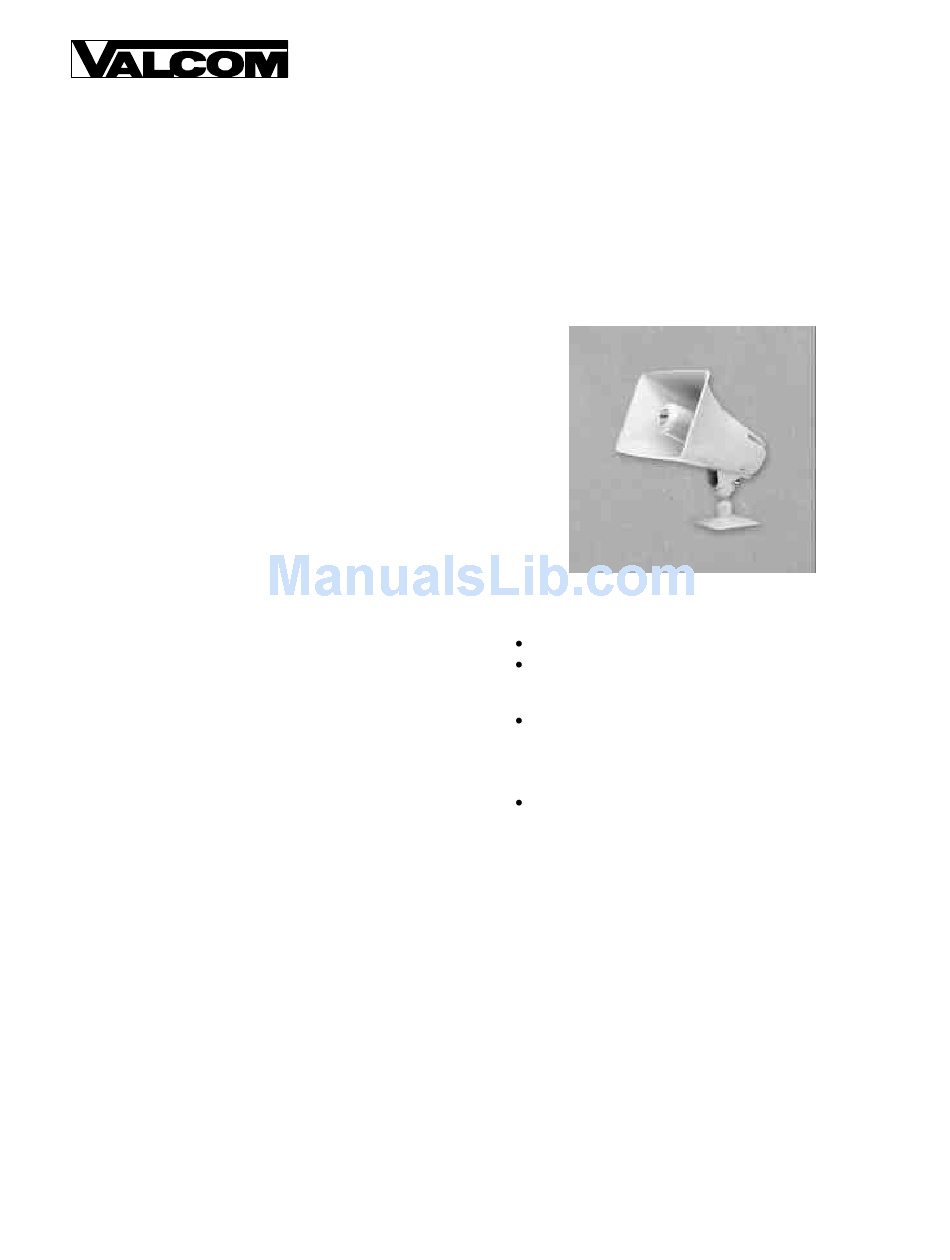

V-1048M - 45 OHM TALKBACK HORN
1
VSP-V-1030M/1036M/1048M
Environment
Temperature:
Humidity:
Dimensions/Weight
V-1030M/V-1036M
7.38"H x 10.00"W x 10.40"D
(18.75cm x 25.40cm x 26.42cm)
3.7 lbs. (1.68kg)
V-1048M
7.38"H x 10.00"W x 10.40"D
(18.75cm x 25.40cm x 26.42cm)
3.5 lbs. (1.59kg)
SPECIFICATIONS/
CONNECTIONS FOR THE
V-1030M/V-1036M
The V-1030M and V-1036M are Paging Horn/
Amplifier Assemblies. The V-1030M is a self-
contained 5 Watt paging system with a 5 Watt
amplifier; the V-1036M is a self-contained 15 Watt
paging system with a 15 Watt amplifier. Both units
incorporate a high efficiency horn with a volume
control.
Issue 6
-20 to +55°C
0 - 95% (non-precipitating)
947032
