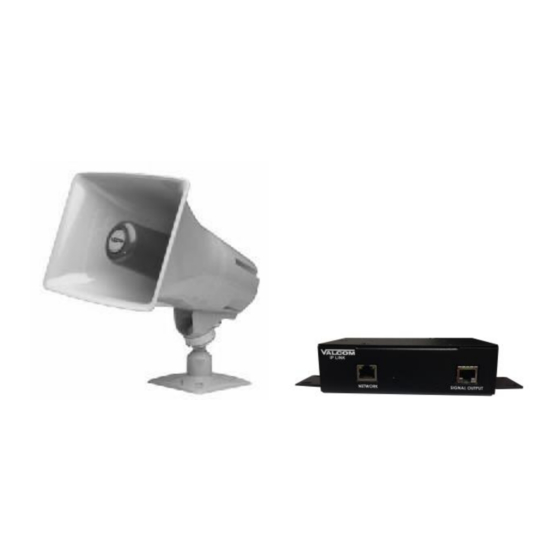

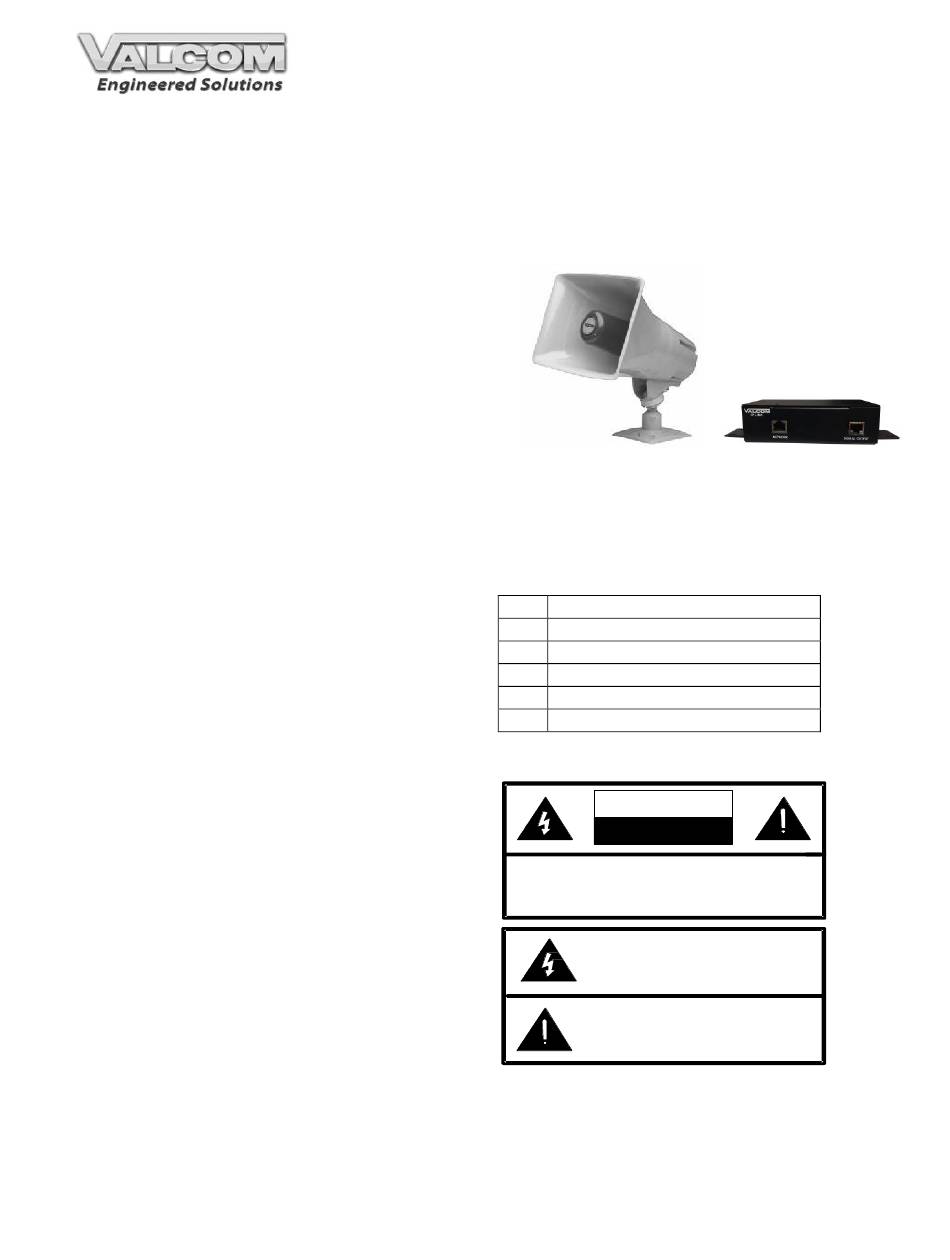

VE148AL IP Talkback Horn
INTRODUCTION
The VE148AL IP Talkback Horn enables two-way
handsfree voice access to a single location over
an IP-based network. This allows a page zone
extension anywhere on the network. The horn
audio level is electronically adjusted via
software. A call switch input connection is
provided for call initiation. Power is provided to
the VE148AL via a Power over Ethernet (PoE)
switch meeting the 802.3af specification.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VE801X
POTS telephone set w/VE801X
FXS Port w/VE802X
SIP telephone system
Features
RJ-45 for network connection
Network activity LEDs
Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight VIP-148AL
Horn
7.38" H x 10.0" W x 10.4" D
(18.75cm x 25.4cm x 26.42cm)
Weight: 3.70 lbs. (1.68 kg)
Network Interface
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22" W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Network Requirements
Download the latest network requirements from
www.valcom.com/esd.
Environment
Network Interface:
Temperature:
Humidity:
0 to 85% non-precipitating
VE148AL Horn:
Suitable for indoor or outdoor installation
Nominal Power Requirements
Via 802.3af (PoE) Ethernet Switch:
Packing List
Qty
1
1
1
1
1
Precautionary Designations
0 to +40° C
1
Item
Network Interface
VE148AL Horn
VSP Document
"C" Clamp
VM-186 RJ-45 Connector
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 2
Class 3
947811
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Valcom VE148AL
Summary of Contents for Valcom VE148AL
- Page 1 The horn audio level is electronically adjusted via software. A call switch input connection is provided for call initiation. Power is provided to the VE148AL via a Power over Ethernet (PoE) switch meeting the 802.3af specification. SPECIFICATIONS Access Methods Nominal Power Requirements ...
- Page 2 100 meters of the network switch. Mounting (Horn) The VE148AL Horn is designed for most FD electrical box or wall mounting and must be within 300 meters of the VE148AL Network Interface.
- Page 3 Setup Information specific to your application will need Figure 3. Mounting to a Wall Stud to be programmed into the VE148AL using a computer. The PC used for programming should be connected to the same subnet as the VE148AL. Setup will be done using the IP Solutions Setup Tool.
- Page 4 VALCOM LIMITED WARRANTY Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that: 1.
- Page 5 SIDE RJ45 NETWORK CONNECTION HORN HORN SIGNAL CONNECTION SIDE RJ-45 RJ45 Typical 568B RJ45 NETWORK RJ-45 Jack CONNECTION BROWN BROWN BROWN HORN WHITE/BROWN WHITE/BROWN GREEN GREEN CAT 3/5/6 WHITE/GREEN WHITE/GREEN ORANGE ORANGE CALL IN SWITCH WHITE/ORANGE WHITE/ORANGE NORMAL OPEN BLUE BLUE MOMENTARY CLOSED WHITE/BLUE...
