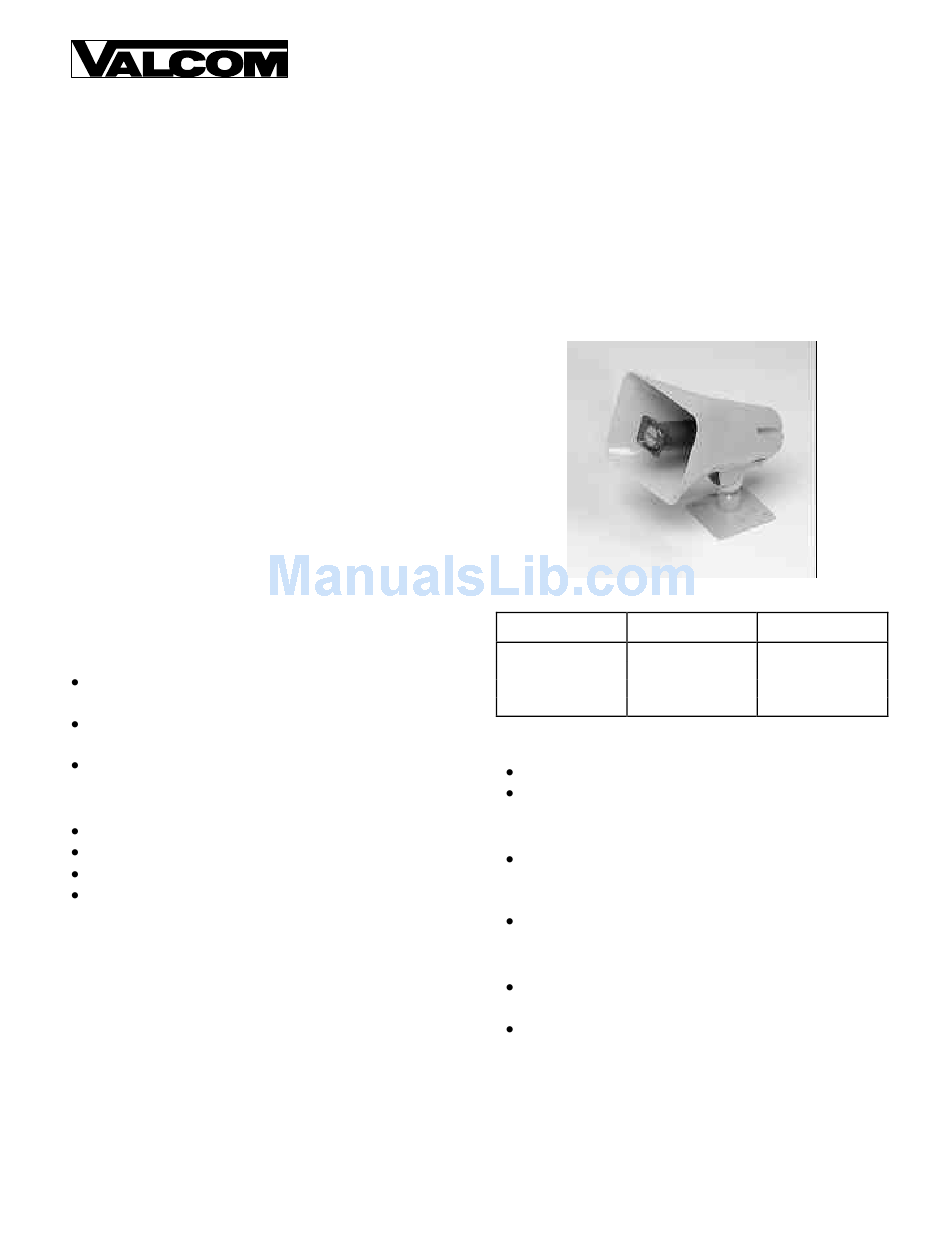

Valcom V-9925A User Manual

LOUD WARBLE RINGER WITH VOLUME CONTROL
INTRODUCTION
These instructions contain the specifications and
guidelines necessary to install, operate and maintain
the V-9925A, 5-Watt Loud Warble Ringer with
Volume Control.
SPECIFICATIONS

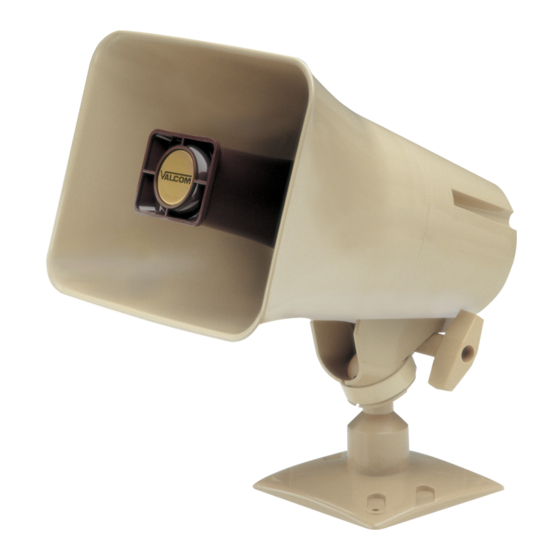

The V-9925A Loud Warble Ringer is a self-contained
5-Watt electronic ringer which can be used for either
interior or exterior signaling applications. The unit is
designed to allow a loud warble to be broadcast as
long as input signal is present. The input signal
should be interrupted or controlled by the ringing
interval.
Application
Loud speaker tone signaling for key systems,
intercoms, PABXs
Outside signaling for incoming calls into a key
system
Signaling in a noisy environment
Features
5 Watt amplifier
Volume control
High efficiency horn
Tone generation circuitry
Coverage
Refer to the following table for speaker coverage.
The first number given is the side to side distance for
mounting the speakers. It is also the distance in front
of the speaker that you can expect to hear a good
quality signal. The second number is the area being
covered in square feet.
V-9925A
5 WATT -24VDC
Location
Quiet
Moderate
Noisy
Very Noisy
Environmental
Temperature:
Humidity:
Dimensions/Weight
6.50"H x 8.20"W x 10.40"D,
plus mounting base
(16.51cm H x 20.83cm W x 26.42cm D)
3.6 lbs. (1.63kg)
Signal/Power Requirements
Power Supply: -24VDC, 500mA ("B" Battery)
Signal Source:
1
VSP-V-9925A
Issue 7
Distance Area
220 ft. 48,400 sq. ft.
160 ft. 25,600 sq. ft.
80 ft. 6,400 sq. ft.
40 ft. 1,600 sq. ft.
-20 to +55°C
0 to 95% (non-precipitating)
(10 Valcom power units)
105VAC or 20VAC
947925A
