Valcom V-1036C Technical Specifications

Valcom V-1036C Technical Specifications

15-watt amplified horns

Advertisement

FEATURES:
INDOOR/OUTDOOR USE
BUILT-IN 15 WATT AMPLIFIER MODULE
HIGH IMPACT ABS HOUSING
BUILT-IN VOLUME CONTROL
OMNI-DIRECTIONAL MOUNTING BASE
WALL OR ELECTRICAL BOX MOUNT
OPERATES ON -24 VDC POWER SUPPLY
I-BEAM CLAMP INCLUDED
DESCRIPTION:

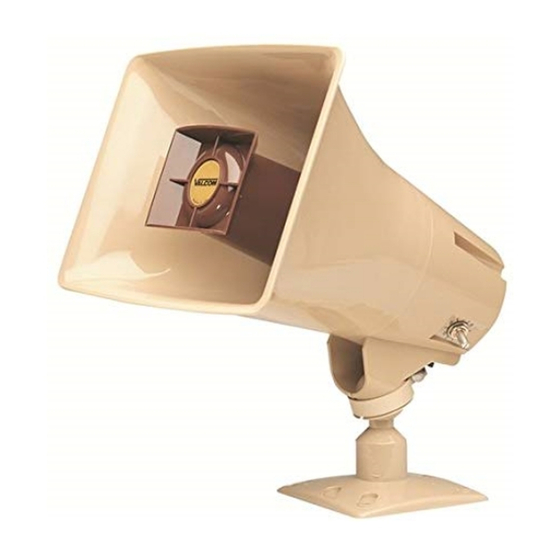

The V-1036C and V-1036M are weather resistant, reentrant, 15 watt amplified, horn speaker,
complete with 15 watt amplifier, volume control, horn housing, mounting base and I-beam clamp.
SOUND PRESSURE LEVELS
121 dB measured at 4' (1.22 m) on axis with a 10
dBm input at 1 kHz.
FREQUENCY RESPONSE
225 Hz to 14 kHz
DISPERSION
°
120
Horizontal and 90
AMPLIFIER MODULE
Rated Output: 15 Watts RMS
Output Load: 8 Ohms
Input Impedance: 1000 ohms Norminal
Power Supply: -24 Vdc nominal, positive ground
Operating Current: 900 mA at -24 VDC
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
15-WATT AMPLIFIED HORNS
MODEL V-1036C, V-1036M
SPECIFICATIONS:
°
Vertical
SPECIFICATIONS
MOUNTING
Omni-Directional mounting fully adjustable,
°
360
horizontal and 160
base for wall or electrical box mounting with I-
beam clamp included.
HOUSING AND FINISH
The horn is made of high impact ABS plastic. The
mounting base is constructed of ultra high impact
LEXAN
plastic. The V-1036C available in beige
®
and gray. The V-1036M is white.
ENVIRONMENT
Temperature: -4 to +131
Humidity: -0-95% Non-Condensing
DIMENSIONS AND WEIGHT
7.38" (18.75 cm) H x 10.0" (25.40 cm) W x 10.5"
(26.67 cm) D
Weight: 4.7 lbs (2.2 kg.)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
°
vertical. Detachable
°
°
F (-20 to +55
C)
Fax: 540-362-9800
